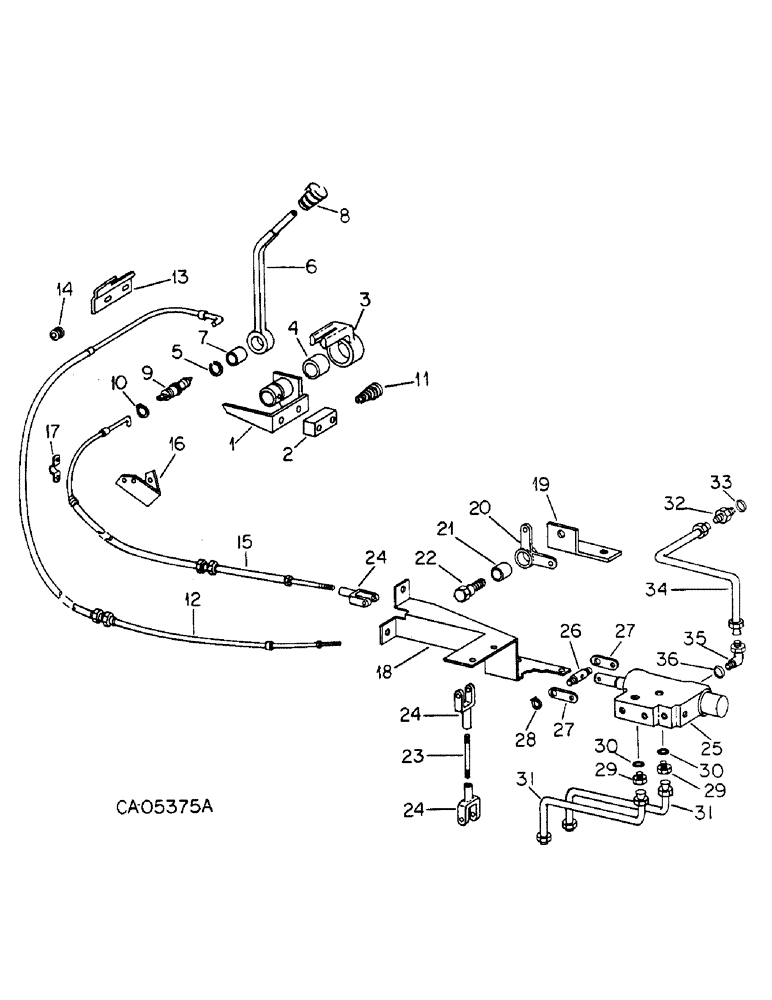

Запчасти Case IH HYDRO 186 (07-27) - DRIVE TRAIN, HYDROSTATIC TRANSMISSION CONTROLS (04) - Drive Train

1

104294C1

BRACKET

ASSY, shift support

1шт.

2

104312C1

BAR

shift support bracket, spacer

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

102635

NUT,3/8"-16, G5

2шт.

3

104355C91

LEVER

ASSY, speed control

1шт.

4

454097R2

BRONZE BUSHING

BUSHING

1шт.

5

615576C1

RING

1шт.

6

104289C91

LEVER

ASSY, ratio control

1шт.

7

383876R1

BUSHING,22.29mm ID x 25.4mm OD x 14.28mm L

ratio control lever

1шт.

8

388180R2

GRIP

KNOB, shift handle

1шт.

9

104293C1

LEVER

forward and reverse

1шт.

10

373522R1

SNAP RING,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

11

104378C1

SPRING

ratio control handle centering

1шт.

22320R1

CLEVIS PIN,3/8" x 1.781"

PIN, 3/8 x 1-25/32 hard znd clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

104311C1

CABLE PULLING GRIP

CABLE ASSY, speed control valve

1шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

1шт.

95-11028

WASHER,1/4"

1/4 x 5/8 x .051 flat

2шт.

13

120296C1

SUPPORT

speed cable, bracket

1шт.

66925C1

BOLT, retainer clamp

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

365919R1

GROMMET,3/8" ID x 5/8" Groove Dia

fwd & rev cable

1шт.

15

104310C1

CABLE PULLING GRIP

CABLE ASSY, forward and reverse

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

1шт.

3479

WASHER,7/32" x 9/16" x .060"

.219 x .562 x .054 znd

1шт.

16

104324C1

SUPPORT

fwd & rev cable upper, bracket

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 1.0 hex-hd cap

2шт.

109084

NUT,1/4"-20, G5

2шт.

17

120191C1

CLAMP

cable retaining

1шт.

109424

SCREW

10-24 x 9/16 slt hex mach

2шт.

110633

NUT,#10-24

2шт.

115707

LOCK WASHER,#10

Washer, Lock, #10

2шт.

18

104869C1

BRACKET

ASSY, drive control valve

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

19

104875C1

ANGLE

bellcrank pivot, bracket

1шт.

20

104872C92

LEVER

ASSY, speed control, bellcrank

1шт.

21

104876C1

BUSHING

bellcrank speed control

1шт.

22

383153R3

BOLT,Shldr, Hex, 5/8" - 11 x 1.80"

BOLT, shoulder

1шт.

102639

NUT,5/8"-11, G5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23

104877C1

STUD

speed control

1шт.

24

104036

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS, 1/4-28 x 2 pln lt adj

3шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex

3шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cotter

3шт.

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, 1/4 clevis

3шт.

95-11028

WASHER,1/4"

1/4 x 5/8 x .051 pln

3шт.

25

123055C93

VALVE

ASSY, drive control, refer to drive control valve this group for list of components

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051) 3/8"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

2шт.

102635

NUT,3/8"-16, G5

2шт.

26

120155C1

PIVOT

drive control valve

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex, jam

1шт.

27

104057C1

BAR

booster input, link

2шт.

20614R1

CLEVIS PIN,9.53mm OD x 34.14mm L

PIN, 3/8 x 1.344 clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

28

971043R1

SNAP RING,#50, Ext

2шт.

29

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 7/16-20 37 deg hyd flared tube short swivel

2шт.

31

120076C1

HYD TUBE

TUBE ASSY, drive control valve reverse and forward ports

2шт.

32

9410201

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

CONNECTOR, 1/2-20 37 deg hyd flared tube short swivel

1шт.

34

120077C1

HYD TUBE

TUBE ASSY, drive control valve dump

1шт.

35

9410975

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, O-Ring

1/2-20 90 deg swivel

1шт.

33

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

36

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.

30

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

2шт.
