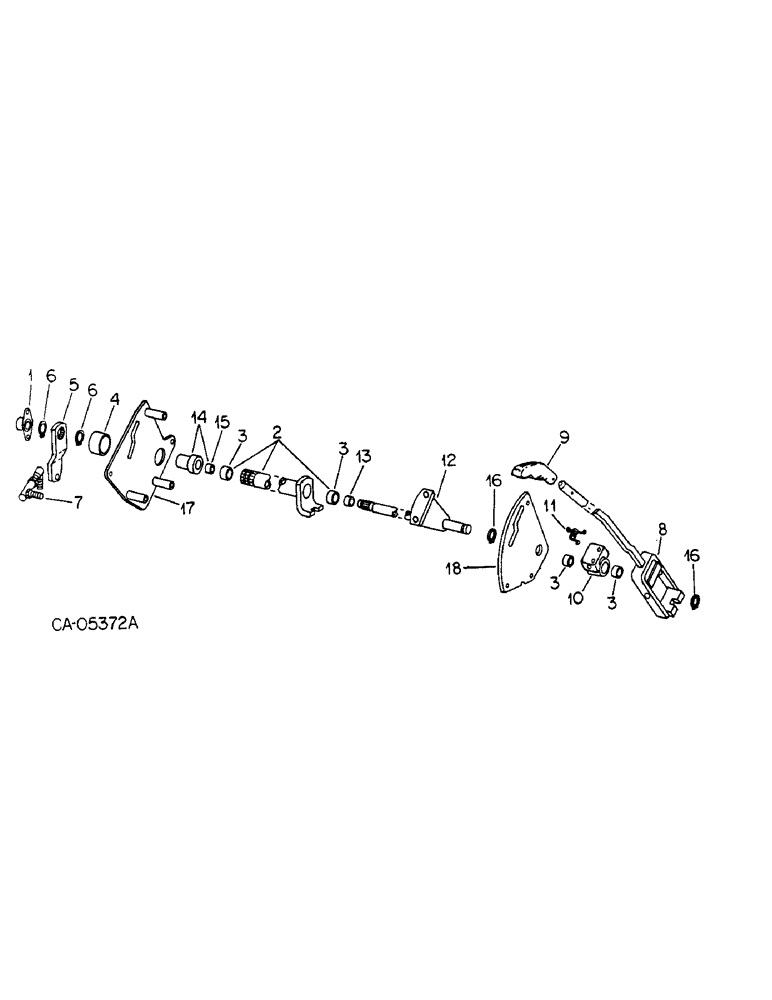

Запчасти Case IH HYDRO 186 (07-26) - DRIVE TRAIN, GEAR SHIFT MECHANISM, RANGE TRANSMISSION EXTERNAL (04) - Drive Train

1

382508R91

BEARING ASSY,0.752" ID x 0.81"

BUSHING

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .065 znd

2шт.

120376

NUT,5/16"-18, G5

1шт.

2

120480C91

PLATE

ASSY, hi-lo shift, replaces 104108C92 also furnishing 1, 120477C1 lever and 2, 454319R1 rings, Serial Range: -9434

1шт.

3

363768R1

BUSHING

optional w/bushing 142373C1

4шт.

3

142373C1

BUSHING

optional w/bushing 363768R1

4шт.

4

104259C1

SEAL

1шт.

5

104547C1

SUPPORT, hi-lo pivot, lever, use w/plate assy 104108C92

1шт.

5

120477C1

LEVER, hi-lo pivot, use w/plate assy 120480C91

1шт.

6

454417R1

SNAP RING,#100, Ext

Ring, Snap, , use w/plate assy 104108C92 #100, Ext

2шт.

6

454319R1

RING

retaining, use w/plate assy 120480C91

2шт.

7

104110C1

BALL JOINT

JOINT, ball

1шт.

144419H

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 nylon insert

2шт.

8

143888C1

HANDLE

ASSY, range shift

1шт.

8

143889C92

KIT

PACKAGE, shift lever, replaces lever 104434C3

1шт.

21994R1

HEADED PIN,1/2" x 3 1/4"

PIN, 1/2 x 3-1/4 headed

1шт.

180192

BOLT (SPREADER),Hex, 1/2" - 13 x 3 1/2", Gr 5

BOLT, 1/2 x 3-1/2 type 5

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2 PHC p/t lock type 5

1шт.

9

397978R2

GRIP

, Serial Range: -11999

1шт.

9

148840C1

KNOB

range trans shift, Start Serial: 12000

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

10

104104C91

HUB

ASSY, range shift

1шт.

11

104236C1

SPRING

shift lever

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

12

104369C1

SHAFT ASSY.

SHAFT ASSY, park shift, plate

1шт.

13

104371C1

SPACER, hydrostatic shift

1шт.

14

104372C92

BUSHING ASSY, outer, spacer

1шт.

15

487139R1

BUSHING,28.65mm ID x 31.77mm OD x 12.7mm L

1шт.

16

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

495-11081

WASHER,3/4", SAE

.812 x 1.469 x .134

1шт.

16066R1

WASHER

SHIM, .761 x 1.500 x .054, use (or as required)

1шт.

21018R1

WASHER

.781 x 1.500 x .027 pln, use (or as required)

1шт.

17

104374C1

SUPPORT

ASSY, primary, plate

1шт.

25883R1

WASHER

1.594 x 2.250 x .054

1шт.

18

104120C1

PLATE

SUPPORT, intermediate, plate

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 hex-hd cap

3шт.
