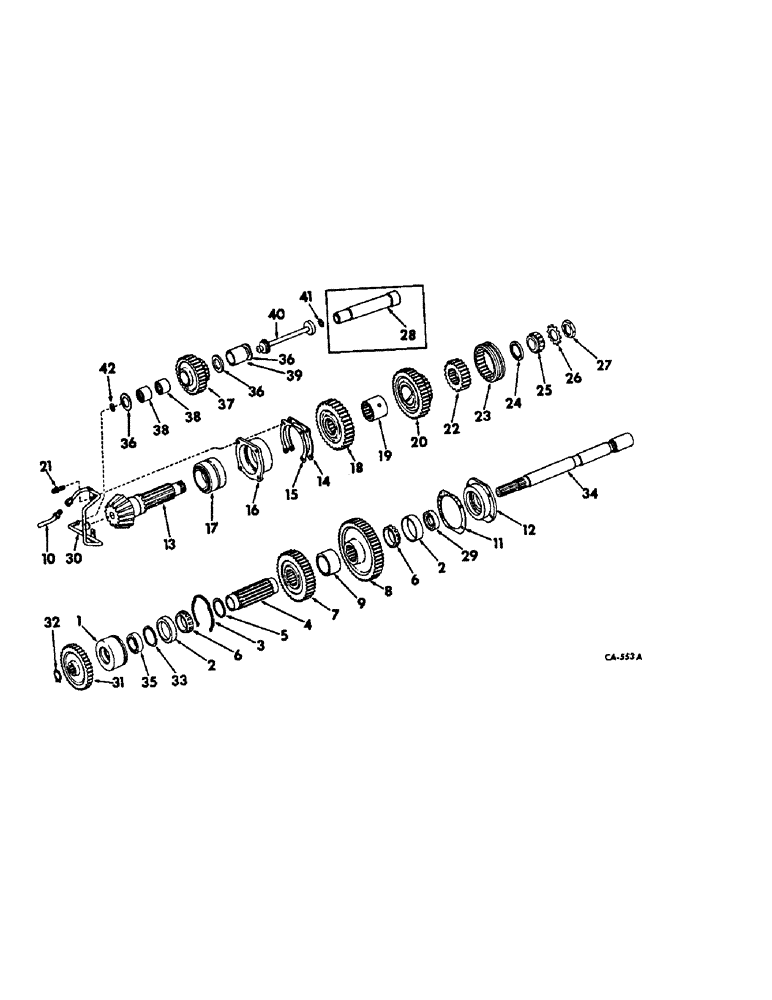

Запчасти Case IH HYDRO 186 (07-19) - DRIVE TRAIN, RANGE TRANSMISSION, IN REAR FRAME (04) - Drive Train

1

68525C1

CAGE

ASSY, countershaft rear bearing

1шт.

2

625743C1

BEARING CUP,90mm OD x 18.5mm W

BEARING, countershaft cup

2шт.

3

26522R1

SNAP RING,4.625", Int, #462

Ring, Snap, , brg cage rear 4.625", Int, #462

1шт.

4

528680R2

SHAFT

COUNTERSHAFT

1шт.

5

583564R1

SNAP RING,#250, 2.356, Ext

RING, countershaft snap

1шт.

6

625742C91

BEARING

ASSY, countershaft cone

2шт.

7

406026R1

GEAR

lo drive, 36T

1шт.

8

406028R1

GEAR

constant mesh, 50T

1шт.

9

406027R1

SPACER

countershaft gear

1шт.

10

406147R1

TUBE

ASSY, differential lub short

1шт.

11

380280R1

SHIM

countershaft brg (or as required)

2шт.

12

527738R2

CAGE

countershaft front bearing

1шт.

NLS

NO LONGER SERVICED

4шт.

13

BEVEL GEARS, order package 120265C91

1шт.

13

68529C91

GEAR-SET

BEVEL GEAR, matched set, tractor w/hi-clear att

1шт.

14

380283R2

SHIM

main shaft bearing, .004, as required

1шт.

15

380284R2

SHIM

main shaft bearing, .007 (or as required)

2шт.

16

380285R1

CAGE

main shaft bearing

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

3шт.

17

ST2174

TAPERED BEARING,2.5" ID x 4.4375" OD x 1.1875"

BEARING, main shaft rear

1шт.

18

138764C2

GEAR

reverse driven, 35T, replaces 380288R2

1шт.

19

380289R1

CARRIER

hi-lo driven gear

1шт.

20

406029R1

GEAR

ASSY, hi-lo driven, 37T

1шт.

21

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

lub tube mounting bracket

1шт.

22

533927R1

CARRIER

shift collar

1шт.

23

393521R1

COLLAR

hi-lo shift

1шт.

24

380294R1

SPACER

main shaft

1шт.

25

391897R91

BEARING ASSY,40mm ID x 77.62mm OD x 30mm W

main shaft front roller

1шт.

26

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

main shaft lock

1шт.

27

359082R2

NUT

main shaft

1шт.

28

67774C1

SHAFT

(Not used in this application)

1шт.

29

527739R91

OIL SEAL

Independent PTO shaft oil

1шт.

30

65444C1

TUBE

ASSY, pressure lub

1шт.

30

65450C1

TUBE ASSY, pressure lub, hi-clear tractors

1шт.

31

380319R1

PINION

GEAR, pump drive, 61T, H186, Serial Range: -11999

1шт.

31

128064C1

GEAR

pump drive, 61T, H186, Start Serial: 12000

1шт.

32

384341R1

RING, SNAP

RING, pump drive gear retaining, H186, Serial Range: -11999

1шт.

32

152450R1

SNAP RING,#125, Ext

Ring, Snap, , pump drive gear, H186 #125, Ext, Start Serial: 12000

1шт.

33

512889R1

RING

Independent PTO driven shaft bearing retaining

1шт.

34

406031R1

SHAFT

ASSY, Independent PTO driven

1шт.

35

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

BEARING, Independent PTO driven shaft ball

1шт.

36

380300R1

THRUST WASHER,41.66mm ID x 60.96mm OD x 2.54mm Thk

reverse gear thrust, tractor w/all wheel drive

2шт.

37

393525R2

GEAR

reverse drive, 34T, tractor w/all wheel drive

1шт.

38

166957R91

NEEDLE BEARING,Needle, 41.26mm ID x 50.81mm OD x 31.75mm W

BEARING, reverse drive gear, tractor w/all wheel drive

2шт.

39

528658R1

SPACER

reverse gear, tractor w/all wheel drive

1шт.

40

65440C2

TUBE,7.825" Length

ASSY, transmission lub

1шт.

41

25018R1

O-RING,Rect, .875" ID x 1.125" OD, Cl 5

SEAL, transmission lub tube

1шт.

42

65447C1

RING

lub tube seal

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.
