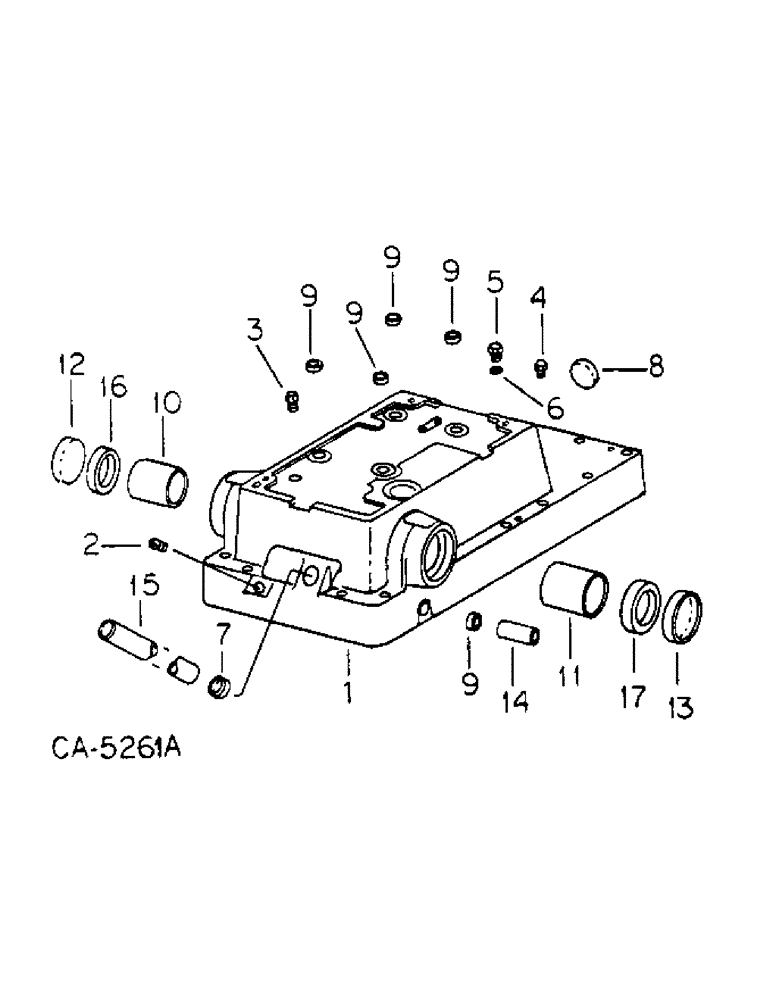

Запчасти Case IH HYDRO 186 (07-18) - DRIVE TRAIN, REAR FRAME COVER (04) - Drive Train

1259630C91

COVER ASSY

rear frame, replaces 104779C91 by also ordering oil level gauge assy 1259628C1, consists of refs 1 thru 15

1шт.

1

COVER, rear frame w/tubes, not serviced separately, order cover assy

1шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto Hex Socket

1шт.

3

444691

PLUG

1/4-18 auto hex-socket pipe

1шт.

4

444697

PLUG,Hex Soc, 3/8"-18

3/8-18 auto hex-socket pipe

1шт.

5

9410357

PLUG

1/2-20 st-thrd o-ring boss

1шт.

7

104731C1

PLUG

CUP PLUG, filler neck opening

1шт.

8

343828R1

PLUG,Cup, 1 13/16"

1-13/16 cup, speedometer drive opening

1шт.

9

380263R1

PLUG

cup, hydraulic port opening

5шт.

10

382774R2

BUSHING,70.78mm ID x 76.2mm OD x 80.26mm L

BEARING, rockshaft LH

1шт.

11

382775R2

BUSHING,76.85mm ID x 81.28mm OD x 80.26mm L

BEARING, rockshaft RH

1шт.

12

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH, tractor w/o draft control Cup, 3.510"

1шт.

13

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH, tractor w/o draft control Cup, 3.762"

1шт.

14

382798R1

BUSHING

eccentric shaft position opening

1шт.

15

104051C1

TUBE,1.03" ID, 1.187" OD, 8" Length

oil filler

1шт.

16

382776R91

OIL SEAL

rockshaft oil LH, tractor w/draft control

1шт.

17

382778R91

OIL SEAL

rockshaft oil RH, tractor w/draft control

1шт.

6

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
