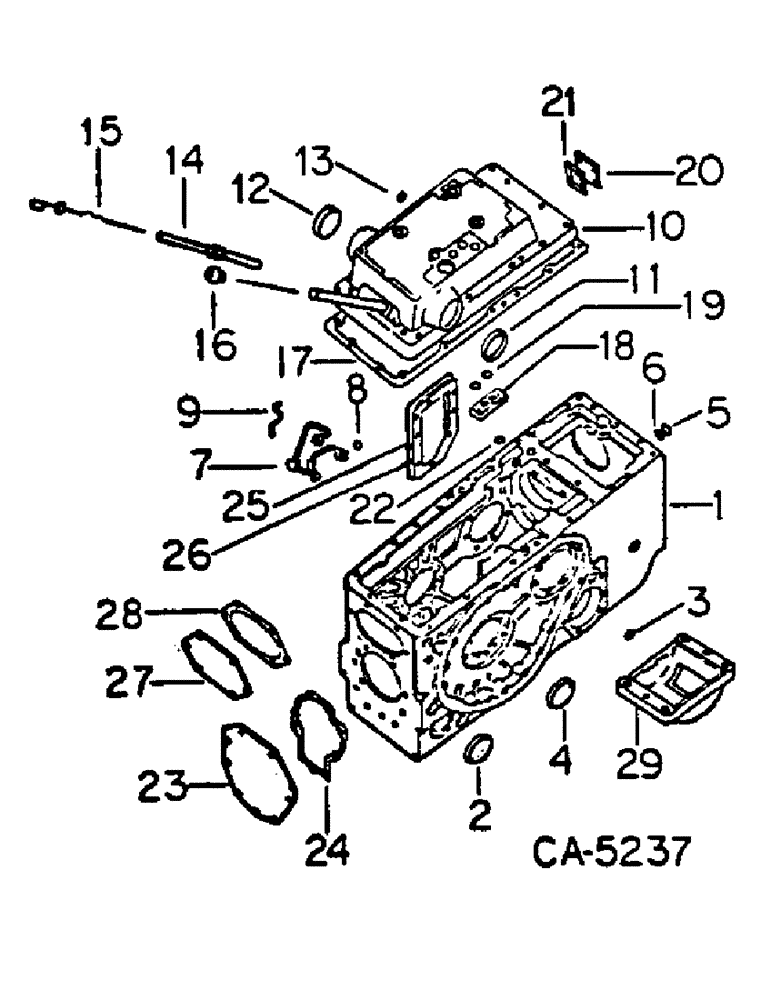

Запчасти Case IH HYDRO 186 (07-17) - DRIVE TRAIN, REAR FRAME AND COVERS (04) - Drive Train

1

127910C91

FRAME

ASSY, rear

1шт.

Consists of, replaces 68517C92 & 139132C91, on orders, for 68517C92 also furnish o-ring 707253R1, adapter 127903C1, gasket 380067R4, suction tube 133685C1, tube support 133686C1 & o-ring 293726R1, on orders for 139132C91 also furnish suction tube 133685C1, tube support 133686C1 & o-ring 293726R1, (1) frame w/tubes (NSS), (1) oil seal 537545R92, (7) pin (NSS), (1) plug 172558, (1) plug 172574, (2) plug 383331R1, (2) plug 444788, (1) plug 9409948

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-soc pipe

2шт.

FO445751

PLUG

1/2-14 auto sq-soc pipe

2шт.

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

3/4-14 auto sq-soc pipe

1шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 auto sq-soc pipe

1шт.

2

383331R1

PLUG,Cup, 4.26"

torsion bar cup

2шт.

3

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion pump suction port

1шт.

4

172558

PLUG,Exp, 1 1/4"

1-1/4 expansion diff lub tube

1шт.

5

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, clutch hsg suction tube, H186, Serial Range: -9847

1шт.

5

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

1-1/2 x 1-3/4 x 1/8, clutch hsg suction tube, H186, Start Serial: 9848

1шт.

6

380271R1

RETAINER

sealing ring, H186, Serial Range: -9847

1шт.

6

127903C1

RETAINER

sealing ring, H186, Start Serial: 9848

1шт.

7

406147R1

TUBE

ASSY, diff, lub

1шт.

406579R1

WASHER

lub tube mtg

2шт.

380286R1

BOLT,Flg, 1/2" - 13 x 1 1/2"

upper lub tube mounting bracket

2шт.

8

(Not used in this application)

1шт.

9

(Not used in this application)

1шт.

10

1259630C91

COVER ASSY

COVER, rear frame, refer to rear frame cover this group

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

SCREW, 5/8-11 x 3-7/8 hex-hd cap

16шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 sq-soc pipe

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

3/8-18 sq-soc pipe

1шт.

11

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH Cup, 3.762"

1шт.

12

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH Cup, 3.510"

1шт.

13

380263R1

PLUG

eccentric shaft & mounting bolt openings cup

5шт.

14

104161C1

TUBE,5.62" Length

ASSY, oil level gauge, H186, Serial Range: -12619

1шт.

14

1259628C1

TUBE,4.52" Length

ASSY, oil level gauge, H186, Start Serial: 12620

1шт.

15

104461C1

DIPSTICK

GAUGE ASSY, oil level

1шт.

16

367677R91

BREATHER

ASSY, oil filler tube cup

1шт.

17

380264R2

GASKET

rear frame cover

1шт.

18

382758R1

COVER

draft control port

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

19

387926R2

RING

draft control port cover seal

1шт.

20

382415R1

COVER

valve adj opening, w/o draft control

1шт.

179814

SPACER

6шт.

21

382416R1

GASKET

valve adj opening

1шт.

22

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL, rear frame pressure port oil

1шт.

23

380272R1

COVER

independent PTO opening

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 hex-hd cap

9шт.

24

381467R1

GASKET

Independent PTO opening cover

1шт.

25

380330R3

COVER

drive att opening

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

26

385757R1

GASKET

drive att opening cover

1шт.

27

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

6шт.

28

383330R1

GASKET

draft control adj opening cover

1шт.

29

108508C1

SUPPORT

ASSY, swinging drawbar pivot, Serial Range: -9158

1шт.

29

72475C1

SUPPORT

ASSY, swinging drawbar pivot, Start Serial: 9159

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

20324R1

DOWEL,1" x 2"

PIN, 1 x 2.000 pln hdn dowel

1шт.
