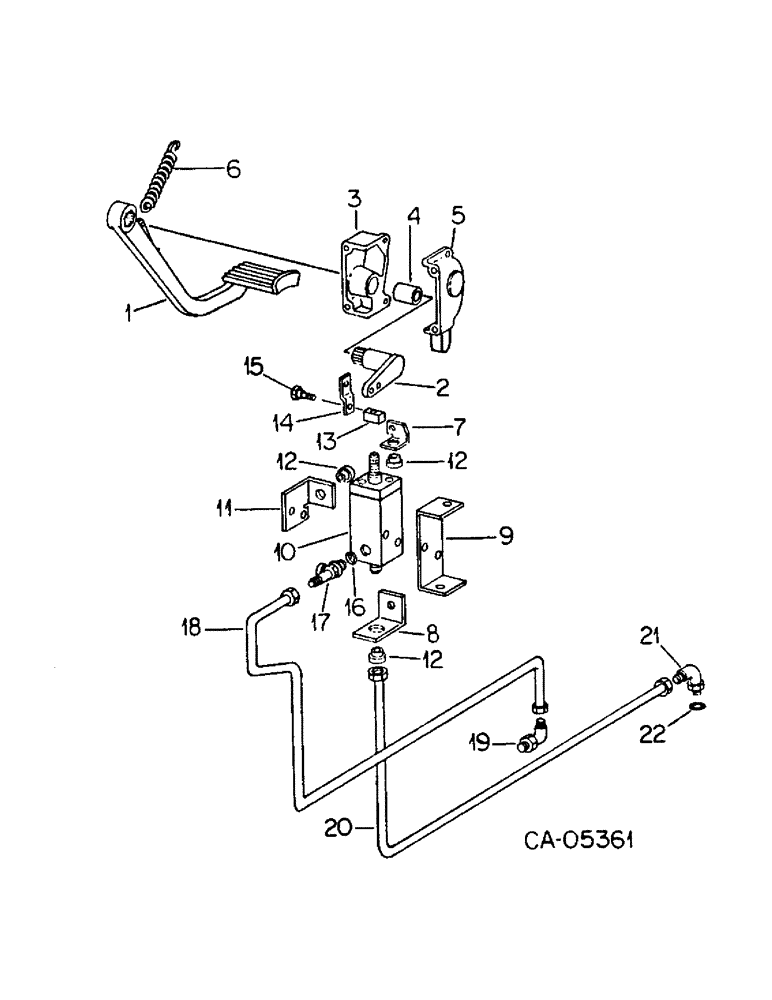

Запчасти Case IH HYDRO 186 (07-13) - DRIVE TRAIN, FOOT-N-INCH CONTROLS (04) - Drive Train

1

104039C2

PEDAL

foot-n-inch

1шт.

24497R1

WASHER

.344 x 1.25 x .105 znd

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

2

104040C1

ARM

ASSY, foot-n-inch, lever

1шт.

3

120174C91

SUPPORT

ASSY, pedal pivot

1шт.

4

120173C1

BUSHING,30.28mm ID x 32.56mm OD x 47.37mm L

pedal pivot

1шт.

5

104516C1

SUPPORT

control pivot

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

102635

NUT,3/8"-16, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

6

104287C1

SPRING

foot-n-inch pedal return

1шт.

1259506C1

CONDUIT

convoluted

1шт.

7

104307C1

SUPPORT, foot-n-inch valve upper mtg

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

8

104306C1

ANGLE, foot-n-inch valve lower mtg

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

9

104480C1

CHANNEL

foot-n-inch adapter

1шт.

10

530331R91

LOCK VALVE

VALVE ASSY, foot-n-inch w/dash post, refer to foot-n-inch valve assy for list of components this group

1шт.

11

104506C1

SUPPORT

foot-n-inch valve side mtg

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

12

536629R1

BUSHING,10.03mm ID x 19.81mm OD x 18.29mm L

foot-n-inch valve iso-mount

3шт.

536642R1

WASHER

.406 x 1.0 x .060

3шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, 3/8-16 x 1-1/8 hex-hd cap

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

13

398766R1

UNION

BAR, foot-n-inch valve adjusting

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

5/16-14 hex, jam

1шт.

14

104481C2

SUPPORT

foot-n-inc valve operating

1шт.

15

104482C1

STEP BOLT

BOLT, shoulder

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

17

534616R1

TEE

int pipe thd two way

1шт.

18

120078C1

HYD TUBE

TUBE ASSY, foot-n-inch valve pump

1шт.

19

9402863

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/8"-27, NPTF

5/16 tube

1шт.

20

120079C1

HYD TUBE

TUBE ASSY, control to foot-n-inch valve

1шт.

21

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

7/16-20 37 deg hyd flared tube adj str thd 90 deg

1шт.

16

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

22

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 tube fitting, class-6

1шт.
