(07-11) - DRIVE TRAIN, MOTOR CYLINDER BLOCK KIT

Запчасти Case IH HYDRO 186 (07-11) - DRIVE TRAIN, MOTOR CYLINDER BLOCK KIT (04) - Drive Train

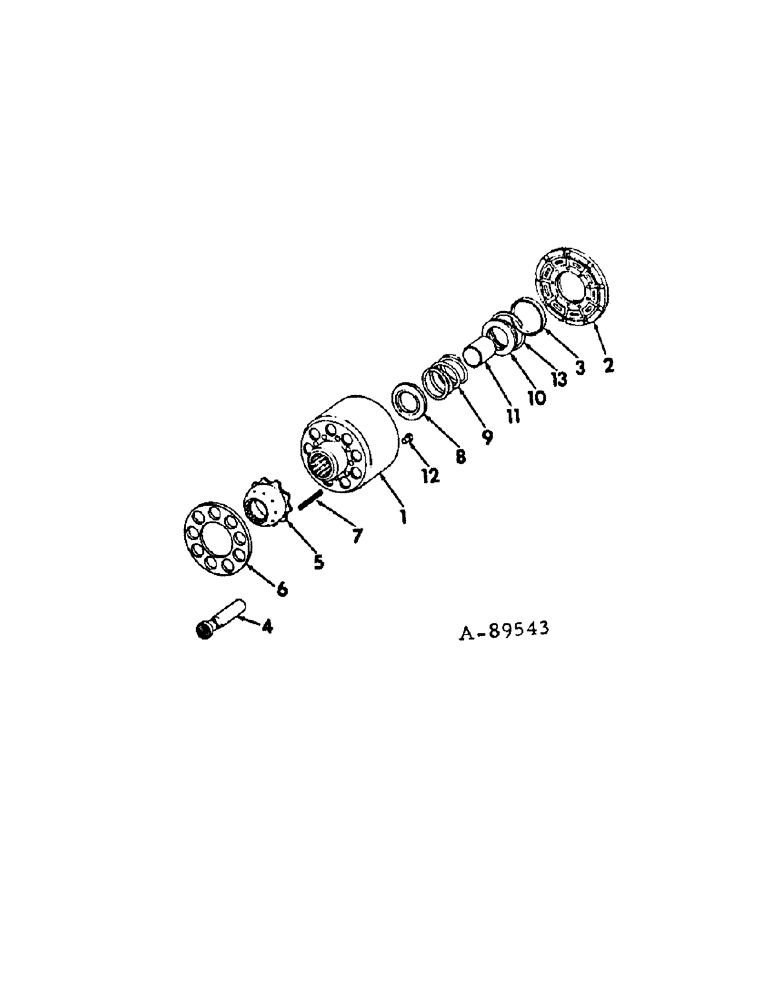

Схема запчастей Case IH HYDRO 186 - (07-11) - DRIVE TRAIN, MOTOR CYLINDER BLOCK KIT (04) - Drive Train
1
6
2
10
11
9
5
4
8
12
13
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71606C91

KIT

cylinder block, replaces 70495C1, consists of ref nos. 2 thru 13

1шт.

2

527638R1

PLATE ASSY.

PLATE, bearing

1шт.

3

527639R1

GUIDE

PILOT, bearing plate

1шт.

4

71607C1

PISTON

ASSY, 9, replaces 538707R1

1шт.

5

527641R1

GUIDE

slipper retainer

1шт.

6

527642R1

LARGE PLATE

RETAINER, slipper

1шт.

7

70496C1

VALVE SPRING

SPRING, slipper retainer guide

6шт.

8

527644R1

SEAT

spring

1шт.

9

527645R1

SPRING

cylinder block

1шт.

10

527646R1

RETAINER

spring

1шт.

11

527647R1

GUIDE

spring

1шт.

12

527648R1

PIN

piston cylinder

1шт.

13

23811R1

RING, internal retaining

1шт.
