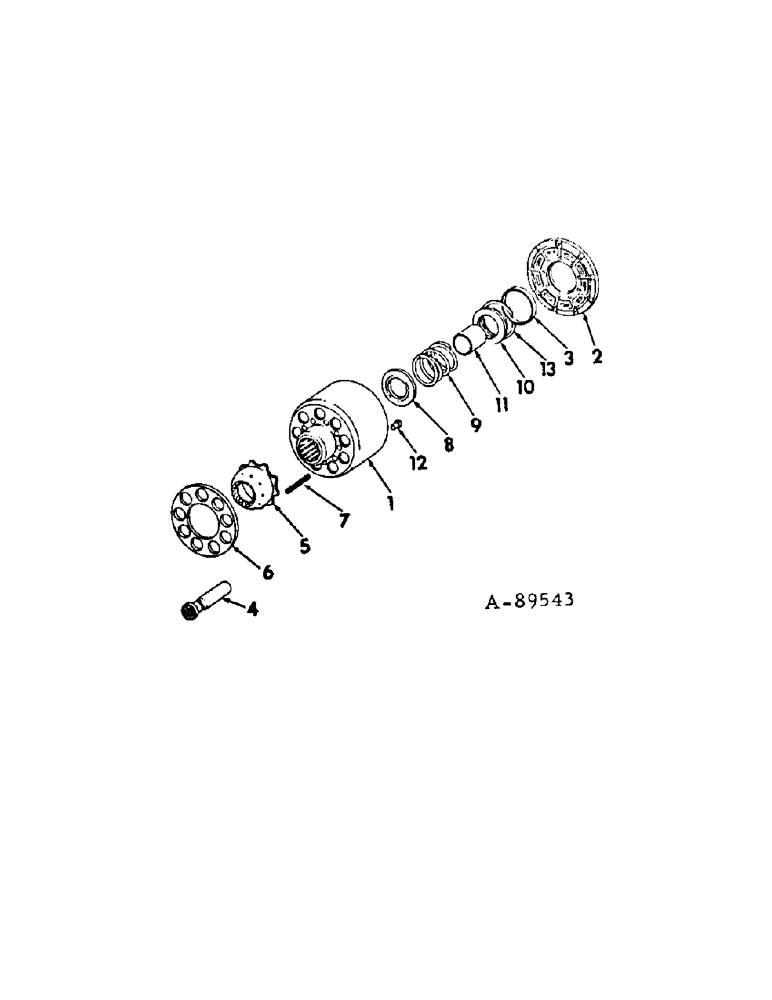

Запчасти Case IH HYDRO 186 (07-11[A]) - DRIVE TRAIN, PUMP CYLINDER BLOCK KIT (04) - Drive Train

1

133790C91

KIT

piston cylinder block, replaces 67821C1, consists of ref nos. 2 thru 13

1шт.

2

405141R1

PLATE

bearing

1шт.

3

405140R1

RING

PILOT, bearing plate

1шт.

4

71605C1

PISTON ASSY.

PISTON ASSY, 9, replaces 538703R1

1шт.

5

405132R1

GUIDE

slipper retainer

1шт.

6

405133R1

RETAINER

slipper

1шт.

7

67822C1

SPRING

retainer

6шт.

8

405136R1

SEAT

spring

1шт.

9

532303R2

SPRING

cylinder block

1шт.

10

405139R1

RETAINER

spring

1шт.

11

405137R1

GUIDE

spring

1шт.

12

527636R1

PIN

piston cylinder

1шт.

13

558383R1

SNAP RING,#250, 2.606, Int, Spiral

RING, internal retaining

1шт.

65019C91

STRIPPER PACKAGE

PACKAGE, hydrostatic pump piston and plate kit service, consists of (9) piston 71605C1, (1) plate 405141R1, (1) plate 71608C1

1шт.
