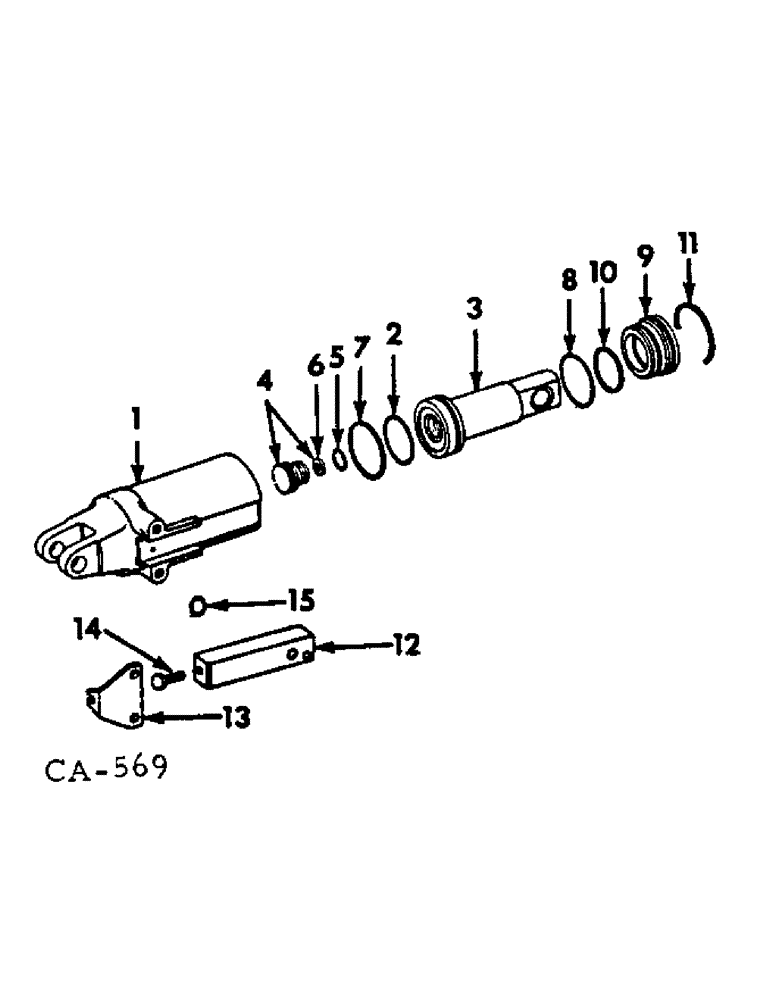

Запчасти Case IH HYDRO 186 (07-09) - DRIVE TRAIN, PUMP SERVO CYLINDER (04) - Drive Train

1

406349R1

BODY

pump servo cylinder

1шт.

2

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2-3/16 x 2-3/8 x 3/32

1шт.

3

406350R1

PLUNGER

PISTON, pump cylinder

1шт.

4

528777R11

PLUG

ASSY, fixed orifice

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

6

529376R1

STRAINER ELEMENT

STRAINER, orifice

1шт.

7

406353R1

RING

piston sealing

1шт.

8

22280R1

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2-7/16 x 2-5/8 x 3/32

1шт.

9

406351R1

GUIDE

piston pump

1шт.

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1-13/16 x 2 x 3/32

1шт.

10

406352R1

RING

guide sealing inner

1шт.

11

396116R1

ELECTRICAL WIRE

RING, retaining

1шт.

12

406354R2

BLOCK

variable orifice adj

1шт.

13

396107R1

SUPPORT

block adj bracket

1шт.

14

396108R2

BOLT,Hex, 5/16" - 24 x 1.125"

block adj

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

15

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk, Variable orifice adj block

1шт.

406355R91

STRIPPER PACKAGE

PACKAGE, pump servo cylinder o-ring & seal service, consists of (1) o-ring 22280R1, (1) o-ring 364108R1, (1) o-ring 364885R1, (1) o-ring 379457R1, (1) o-ring 392385R1, (1) ring 396109R1, (1) ring 406352R1, (1) ring 406353R1

1шт.
