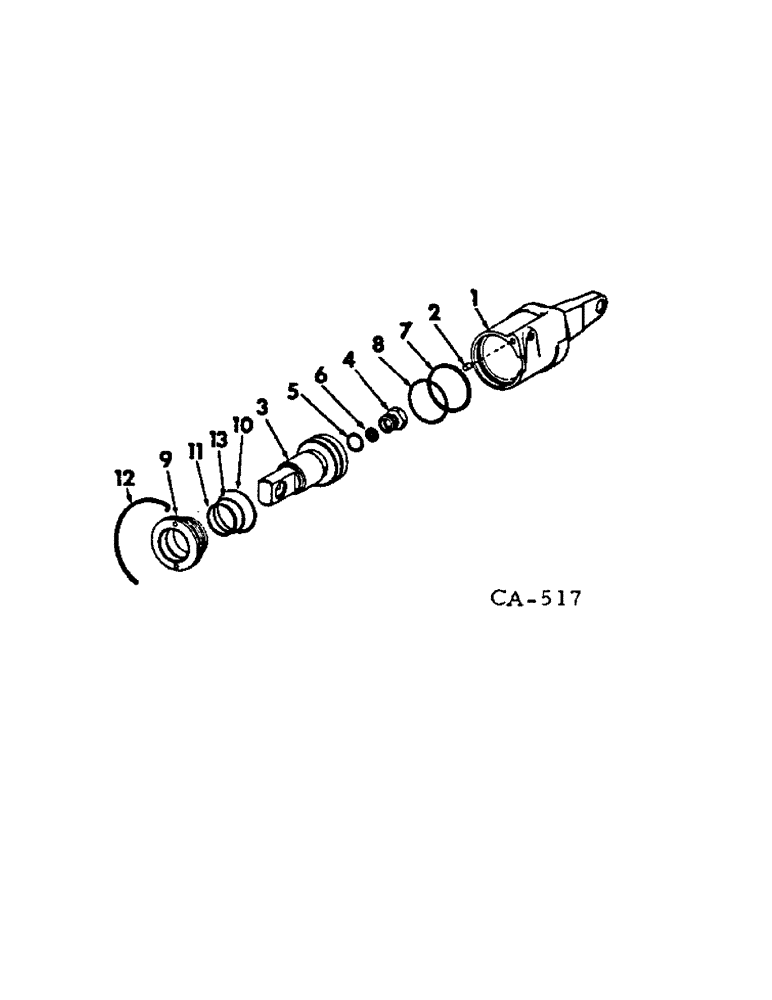

Запчасти Case IH HYDRO 186 (07-08[A]) - DRIVE TRAIN, MOTOR SERVO CYLINDER (04) - Drive Train

1

406357R1

BODY

ASSY, motor control cylinder

1шт.

2

PLUG, press fit, not serviced separately order body assy, 406357R1

1шт.

3

406359R1

PISTON

motor control

1шт.

4

406984R11

VENT

PLUG ASSY, fixed orifice

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, fixed orifice

1шт.

6

529376R1

STRAINER ELEMENT

STRAINER, orifice

1шт.

7

387373R1

RING

piston sealing

1шт.

8

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 x 2-3/4 x 3/32, piston sealing

1шт.

9

406360R1

GUIDE

motor piston

1шт.

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 x 3/32

1шт.

10

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

2-13/16 x 3 x 3/32, motor piston guide

1шт.

11

406361R1

RING

guide sealing inner

1шт.

12

381873R1

RETAINER

RING, retaining

1шт.

13

(Not used in this application)

1шт.

406362R91

SEAL KIT

PACKAGE, motor servo cylinder o-ring & seal service, consists of (1) o-ring 295204R1, (1) o-ring 327110R1, (1) o-ring 364885R1, (1) o-ring 383017R1, (1) ring 387373R1, (1) ring 396109R1, (1) ring 406361R1

1шт.
