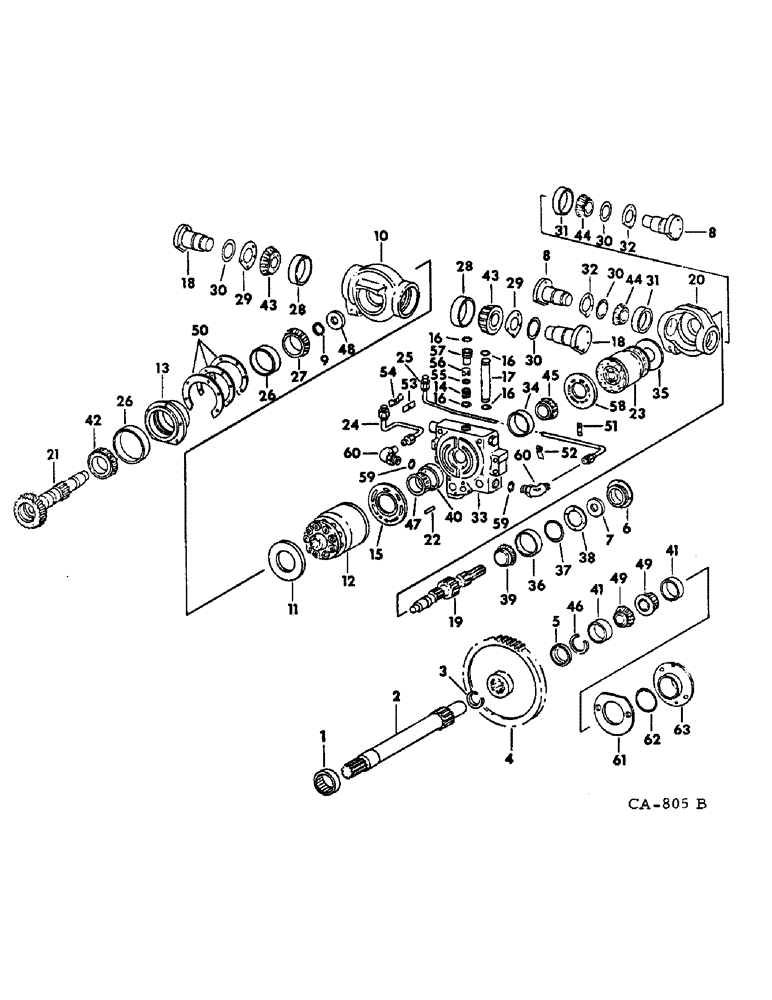

Запчасти Case IH HYDRO 186 (07-06) - DRIVE TRAIN, HYDROSTATIC DRIVE GEARS & SHAFTS, BEARINGS, MOTOR & PUMP, CENTER SECT.,TUBES & CONNECT. (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
876871R91
NEEDLE BEARING,1.375" ID x 1.6245" OD x 0.5"
Independent PTO shaft needle
1шт.
2
406345R1
SHAFT
Independent PTO driven
1шт.
17413R1
BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd
7/16 x 3/4 hex-hd mach
1шт.
188755R1
WASHER
15/32 x 1-1/2 x 11 ga C-Z
1шт.
3
202306R1
SNAP RING,#162, Ext
Ring, Snap, , gear #162, Ext
1шт.
4
406344R1
GEAR
PTO driven, 58 T
1шт.
5
406664R1
SPACER
PTO front brg
1шт.
6
406650R1
HUB
RETAINER, input shaft front bearing oil seal
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8-16 x 7/8 hex-hd cap
4шт.
7
406651R91
SEAL ASSY.,36.22mm ID x 57.3mm OD x 9.53mm Thk
SEAL ASSY, oil
1шт.
8
406645R1
TRUNNION
pump
2шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 hex-hd cap
8шт.
9
406623R1
SNAP RING
RING, output shaft brg retaining, .156
1шт.
9
406624R1
RING
output shaft brg retaining, .159
1шт.
9
406625R1
RING
output shaft brg retaining, .162
1шт.
9
406626R1
RING
output shaft brg retaining, .165
1шт.
9
406627R1
SNAP RING
RING, output shaft brg retaining, .168
1шт.
9
406628R1
SNAP RING
RING, output shaft brg retaining, .171
1шт.
9
406629R1
RING
output shaft brg retaining, .174
1шт.
9
406630R1
RING
output shaft brg retaining, .177
1шт.
9
7406631R1
RING, output shaft brg retaining, .180
1шт.
9
406632R1
SNAP RING
RING, output shaft brg retaining, .183
1шт.
9
406633R1
RING
output shaft brg retaining, .186
1шт.
10
406639R2
HOUSING
motor swashplate
1шт.
11
406637R1
LARGE PLATE
PLATE, thrust
1шт.
12
KIT, motor cylinder block, for components see list of parts under details of motor cylinder block kit listing, this group
1шт.
13
406618R1
HOUSING
output shaft rear brg
1шт.
217911
SCREW
3/8-16 x 7/8 hex-soc-hd cap
5шт.
14
534731R1
SLEEVE
tube connector
1шт.
15
71609C1
PLATE
valve, 26 series, motor
1шт.
16
66067C2
SEAL
SEAL, charge tube
4шт.
17
406543R1
TUBE
charge
1шт.
538709R1
SPRING WASHER
spring
1шт.
18
406347R1
TRUNNION
motor
2шт.
179841
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
3/8-16 x 1-1/4 hex-hd cap
8шт.
19
69528C1
SHAFT
input
1шт.
20
406342R1
HOUSING
pump swashplate
1шт.
21
406341R2
SHAFT
output
1шт.
22
394825R1
DOWEL
PIN, dowel
2шт.
23
KIT, pump cylinder block, for components see list of parts under details of pump cylinder block kit listing, this group
1шт.
24
406547R1
TUBE
ASSY, reverse pressure
1шт.
25
406545R1
TUBE
ASSY, forward pressure
1шт.
26
152454R1
BEARING, CUP
BEARING, output shaft rear cup
2шт.
27
406537R91
ROLLER BEARING,2.50025" ID x 5.0005" OD x 1.4415, 1.0625"
ASSY, output shaft rear cone
1шт.
28
ST951
TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"
BEARING, motor trunnion cup
2шт.
29
406640R91
STRIPPER PACKAGE
PACKAGE, motor trunnion shim service, consists of (3) shim, .005 (NSS), (3) shim, .007 (NSS), (1) shim, .020 (NSS)
1шт.
30
380910R1
O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro
3-3/16 x 3 x 3/32, trunnion sealing
4шт.
31
ST977
TAPERED BEARING,1.7715" ID x 3.277" OD x 0.9575"
BEARING, trunnion cup
2шт.
32
527403R91
STRIPPER PACKAGE
PACKAGE, trunnion shim service, consists of (3) shim (NSS), (3) shim (NSS), (1) shim (NSS)
1шт.
33
406372R94
BODY
ASSY, center section, for components see list of parts under details of center section body listing, this group
1шт.
20734R1
SCREW,Hex, 1/2"-13 x 2 1/2", G8
1/2-13 x 2-1/2 hex-hd cap
4шт.
34
530741R1
BEARING CUP
BEARING, input shaft rear cup
1шт.
35
400965R3
PLATE
thrust
1шт.
36
13324D
BEARING CUP,2.391" ID x 3.001" OD x 0.952"
input shaft front cup
1шт.
37
295204R1
O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro
2-13/16 x 3 x 3/32
1шт.
38
527404R91
STRIPPER PACKAGE
PACKAGE, retainer shim service, consists of (2) shim (NSS), (2) shim (NSS), (1) shim (NSS)
1шт.
39
13330DB
BEARING
input shaft front cone
1шт.
40
170254R1
BEARING, CUP
BEARING, output shaft front cup
1шт.
42
152453R91
ROLLER BEARING,2.625" ID x 5" OD x 1.4975"
ASSY, output shaft rear cone
1шт.
43
ST791
TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"
BEARING, motor trunnion cone
2шт.
44
ST2118
TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"
BEARING, trunnion cone
2шт.
45
400983R91
ROLLER BEARING,1.18775" ID x 2.5317" OD x 0.8478"
BEARING, input shaft rear cone
1шт.
46
336497R1
CLIP
RING, brg retaining
1шт.
47
170253R91
ROLLER BEARING
BEARING, output shaft front cone
1шт.
48
406644R1
STOP
PLATE, output shaft front brg lock
1шт.
389259R1
BOLT,Hex, 1/2" - 20 x 1.84", Gr 4
lock plate
1шт.
50
406619R91
KIT
PACKAGE, output shaft rear bearing housing shim service, consists of (3) shim, .005 (NSS), (3) shim, .007 (NSS), (1) shim, .020 (NSS)
1шт.
51
534790R1
CLAMP
tube retaining
1шт.
357210R1
CAPSCREW,Hex, 3/8" - 16 x 3 1/4", Gr 8
SCREW, 3/8-16 x 3-1/4 hex-hd cap
1шт.
385190R1
WASHER
25/64 x 11/16 x .060
1шт.
614452R1
WASHER
3/8 x 1-1/4 x 11 ga C-Z
1шт.
52
534787R1
PLATE
ASSY, tube mounting
1шт.
53
534785R1
LARGE PLATE
PLATE ASSY, tube mounting
1шт.
54
385093R1
ANCHOR
STRIP, pipe clamp
1шт.
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
1шт.
55
298385R1
O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro
11/16 x 13/16 x 1/16
1шт.
56
534732R1
CLIP
tube retaining
1шт.
57
534730R1
TUBE
center section connector
1шт.
58
71608C1
PLATE ASSY.
PLATE, valve, 23 series, pump, replaces 530739R2
1шт.
60
9410974
ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring
7/16-20 37 deg hyd flare tube adj str thd 90 deg
2шт.
61
406666R1
SHIM
PTO front brg cover, .005 (or as required)
2шт.
61
406667R1
SHIM
PTO front brg cover, .020 (or as required)
1шт.
62
379457R1
O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro
2-3/16 x 2-3/8 x 3/32
1шт.
63
406665R1
COVER
PTO front brg
1шт.
179838
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
3/8-16 x 7/8 hex-hd cap
2шт.
59
369751R1
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
2шт.
Выбрано товаров: 88
