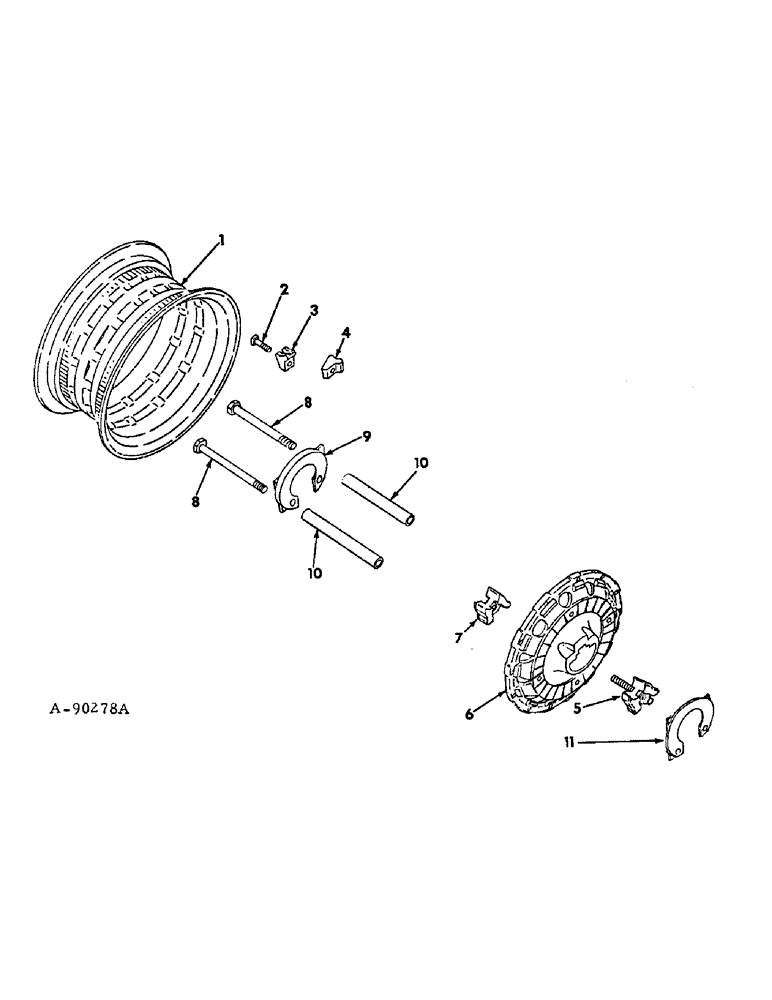

Запчасти Case IH HYDRO 186 (15-04) - WHEELS AND TRACTION, REAR WHEELS, WEDGE LOCK TYPE Wheels & Traction

1

384068R91

RIM

rear wheel w/clamps, DW20-30 rim for 23.1-30 tire

2шт.

1

384069R91

RIM, rear wheel w/clamps, DW20-34 rim for 23.1-34 tire

2шт.

1

392647R1

RIM

rear wheel, WH14L-38 rim for 15.5-38 tire

2шт.

1

392032R1

RIM

rear wheel, W15L-38 rim for 16.9-38 tire

2шт.

1

392031R1

RIM

rear wheel, W16L-38 rim for 18.4-38 tire

2шт.

1

65319C1

RIM

rear wheel, W18L-38 rim for 20.8-38 tire

2шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim clamp, 20 for 30 in. rim, 24 for 34 in. rim, 24 for 38 in. rim 65319C1

1шт.

2

403398R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 3 1/4", Gr 5

BOLT, rear wheel rim clamp, 24 for 38 in. rims 392647R1, 392032R1 & 392031R1

1шт.

2

380877R1

BOLT,3/4" - 16 x 4 3/4"

rear wheel rim clamp, 24 for rim 384069R91

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per bolt

1шт.

352536R1

NUT

rear wheel rim clamp, one per bolt

1шт.

3

380870R1

CLAMP

rear wheel rim

1шт.

4

397251R1

CLAMP

rear wheel, fixed

4шт.

5

397189R2

WEDGE

ASSY, wheel

2шт.

6

398544R2

WHEEL

30 in. rear

2шт.

6

398545R2

WHEEL

34 in. rear

2шт.

6

397188R2

WHEEL (STEERING)

WHEEL, 38 in. rear

2шт.

7

397193R2

WEDGE

wheel

2шт.

8

535561R1

SCREW

3/4-16 x 9-3/4 hex-hd cap

2шт.

9

535559R2

PLATE

rear wheel wedge

1шт.

10

535546R1

BUSHING,19.74mm ID x 22.23mm OD x 180.34mm L

bolt tube

2шт.

11

535557R2

PLATE

rear wheel wedge

1шт.

536022R92

PACKAGE

wedge wheel remover tool service, consists of ref nos 8 through 11, strip, 535409R1 and wrench, 529959R1

1шт.

535409R1

STRIP

wrench grip

1шт.

529959R1

TOOL

WRENCH, wedge wheel socket 7/8

1шт.

27549R1

VALVE STEM

TR618A tubeless tire

2шт.
