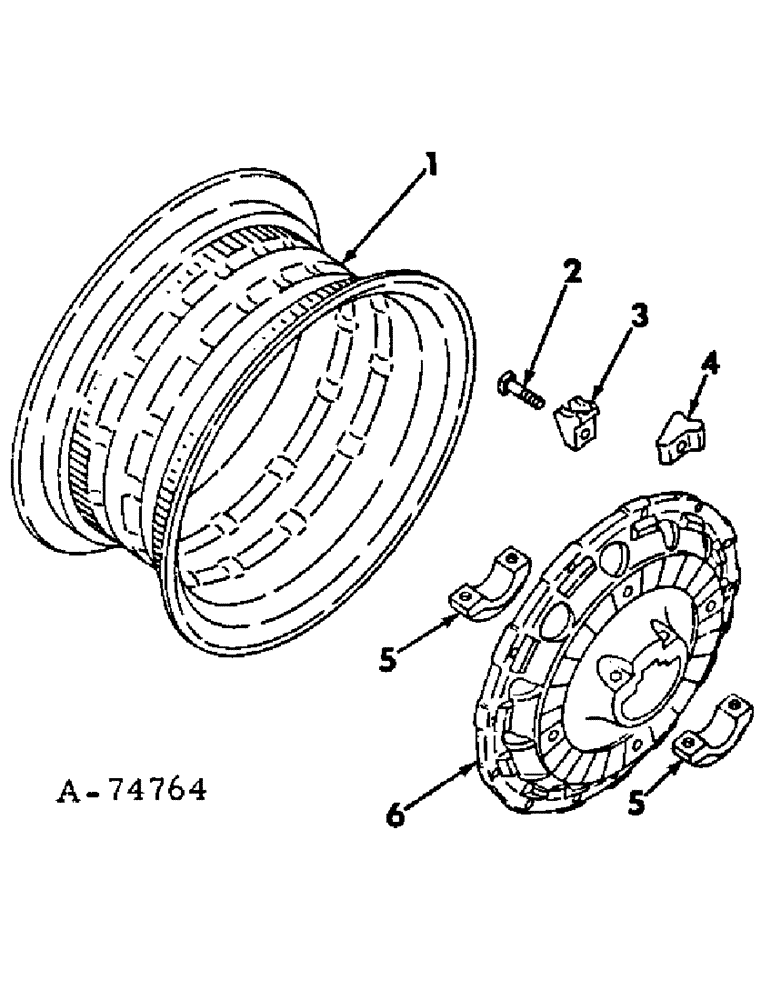

Запчасти Case IH HYDRO 186 (15-03) - WHEELS AND TRACTION, REAR WHEELS, CLAMP TYPE Wheels & Traction

1

380868R1

RIM

rear wheel, W16L-34 rim for 18.4-34 tire, standard

2шт.

1

380867R1

RIM

rear wheel, W15L-34 for 16.9-34 tire

2шт.

1

392032R1

RIM

rear wheel, W15L-38 rim for 16.9-38 tire

2шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT, rear wheel rim clamp, use w/wheel 383579R2

24шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim clamp, use w/wheel 392020R1

24шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per bolt

1шт.

352536R1

NUT

rear wheel rim clamp bolt, one per bolt

1шт.

3

380870R1

CLAMP

rear wheel rim

1шт.

4

397251R1

CLAMP

rear wheel rim, fixed

4шт.

5

380863R2

COLLAR

CLAMP, rear wheel hub, furnish 68806C1 clamp plus two studs 539827R2, Serial Range: -9649

4шт.

5

68806C1

CLAMP

rear wheel hub, Start Serial: 9650

4шт.

539827R2

STUD

w/nut assy, rear wheel hub clamp

8шт.

384697R1

WASHER

hub clamp stud

8шт.

6

383579R2

WHEEL

34 in. rear

2шт.

6

392020R1

WHEEL

38 in. rear

2шт.

373941R2

SOCKET WRENCH

WRENCH, 1-5/16 in. box

1шт.

27549R1

VALVE STEM

TR618A tubeless tire

2шт.
