Запчасти Case IH HYDRO 186 (14-04) - SUSPENSION, TRICYCLE FRONT UPPER BOLSTER, ALSO USED ON TRACTORS WITH HI-CLEAR OR ALL WHEEL DRIVE Suspension

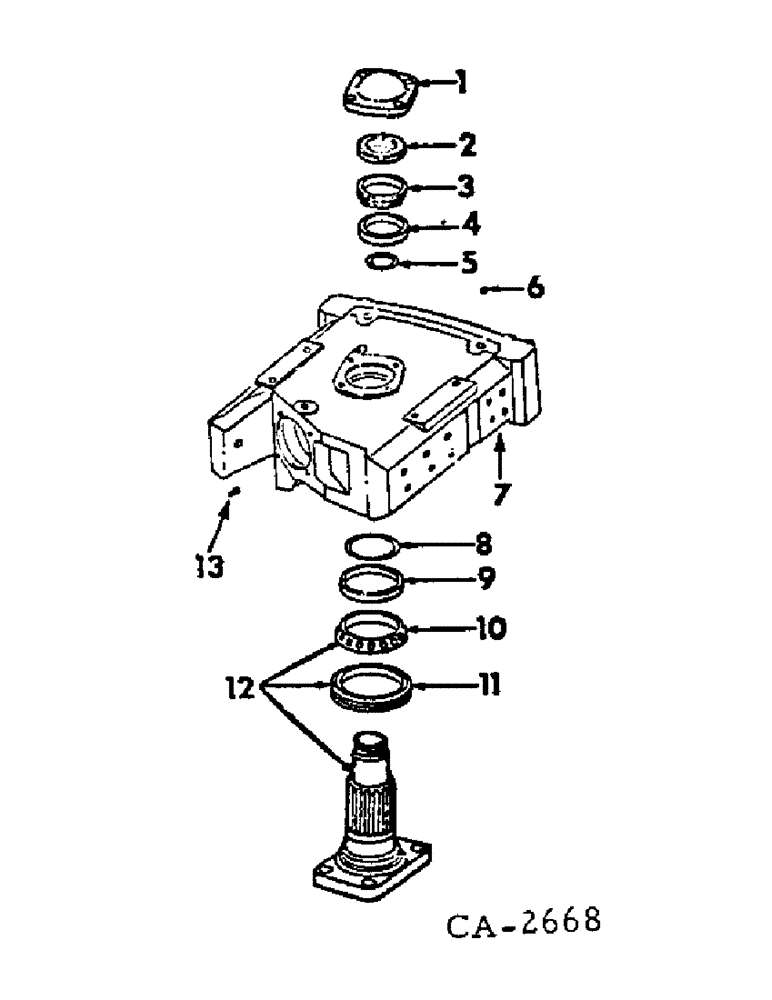

Схема запчастей Case IH HYDRO 186 - (14-04) - SUSPENSION, TRICYCLE FRONT UPPER BOLSTER, ALSO USED ON TRACTORS WITH HI-CLEAR OR ALL WHEEL DRIVE Suspension
1
3
11
6
8
10
2
13
4
9
12
7
5

Артикул

Название

Примечание

Количество

1

378648R1

COVER

upper bolster pivot shaft

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

2

374248R1

NUT

upper bolster pivot shaft

1шт.

3

ST2086

BEARING ASSY,44.45mm ID x 29.9mm W

upper bolster pivot shaft upper cone

1шт.

4

13207D

BEARING CUP,95.28mm OD x 22.35mm W

BEARING, upper bolster pivot shaft upper cup

1шт.

5

259246R1

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

3-7/8 x 4-1/8 x 1/8

1шт.

6

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe, Upper bolster Hex Soc, 1/8"-27

1шт.

7

531257R11

SUPPORT

BOLSTER ASSY, upper

1шт.

8

252734R1

O-RING,0.21" Thk x 2.725" ID, -335, Cl 5, 75 Duro

2-3/4 x 3-1/8 x 3/16

1шт.

9

ST981

BEARING CONE,112.71mm OD x 19.05mm W

BEARING, upper bolster pivot shaft lower cup

1шт.

10

ST2087

TAPERED BEARING,2.7815" ID x 4.4385" OD x 1.014"

BEARING, upper bolster pivot shaft lower cone

1шт.

11

369380R91

OIL SEAL

upper bolster pivot shaft oil

1шт.

12

379363R21

SHAFT

ASSY, upper bolster pivot

1шт.

13

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 90 deg angle lub

1шт.

Выбрано товаров: 14
