Запчасти Case IH HYDRO 186 (14-03[A]) - SUSPENSION, TRICYCLE FRONT AXLE Suspension

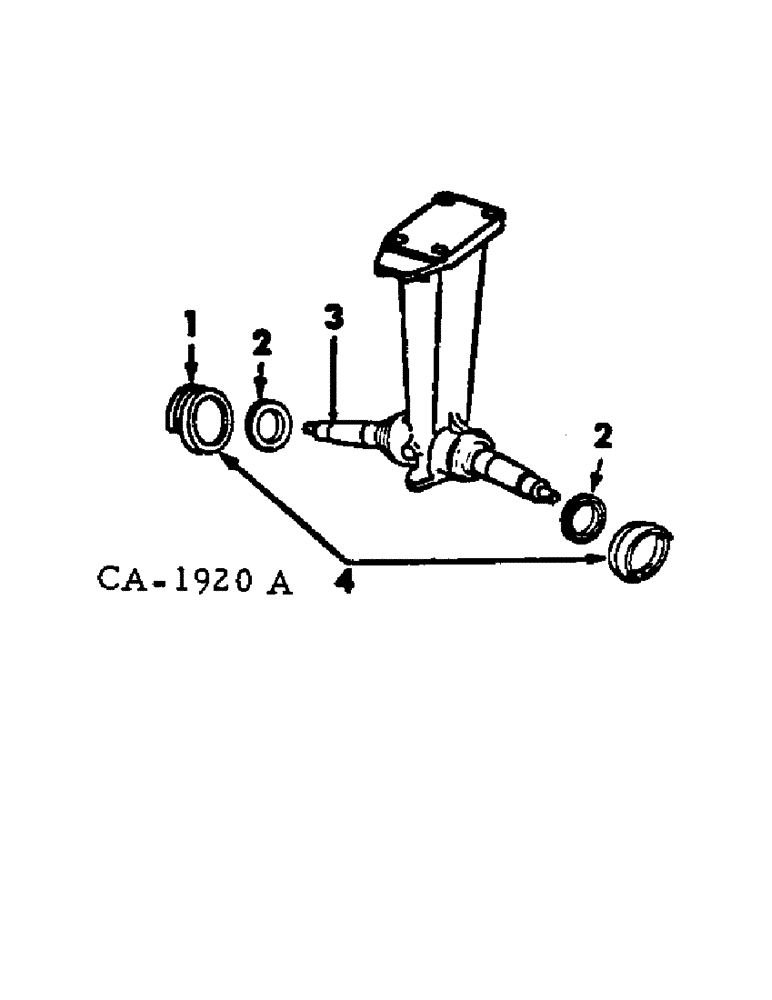

Схема запчастей Case IH HYDRO 186 - (14-03[A]) - SUSPENSION, TRICYCLE FRONT AXLE Suspension
2
4
3
2
1

Артикул

Название

Примечание

Количество

371418R91

PACKAGE

front wheel bearing overhaul, consists of (1) cone 618023R91, (1) cone 619386R91, (1) cup 618024R1, (1) cup 619387R1, (1) gasket 369860R1, (1) oil seal 370254R91, (1) retainer 48703D

2шт.

1

48701D

SHIELD

front wheel dust

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

ASSY, front wheel oil

2шт.

3

370253R1

AXLE, front

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

4

379989R1

BOLSTER ASSY, lower

1шт.

384195R1

12 PT SCREW,Flg, 3/4" - 10 x 2 1/4"

SCREW, 3/4-10 x 2-1/4 12 PT cap

4шт.

19794R1

RIVET, 5/8 x 3-3/4 rd-hd

1шт.

Выбрано товаров: 9
