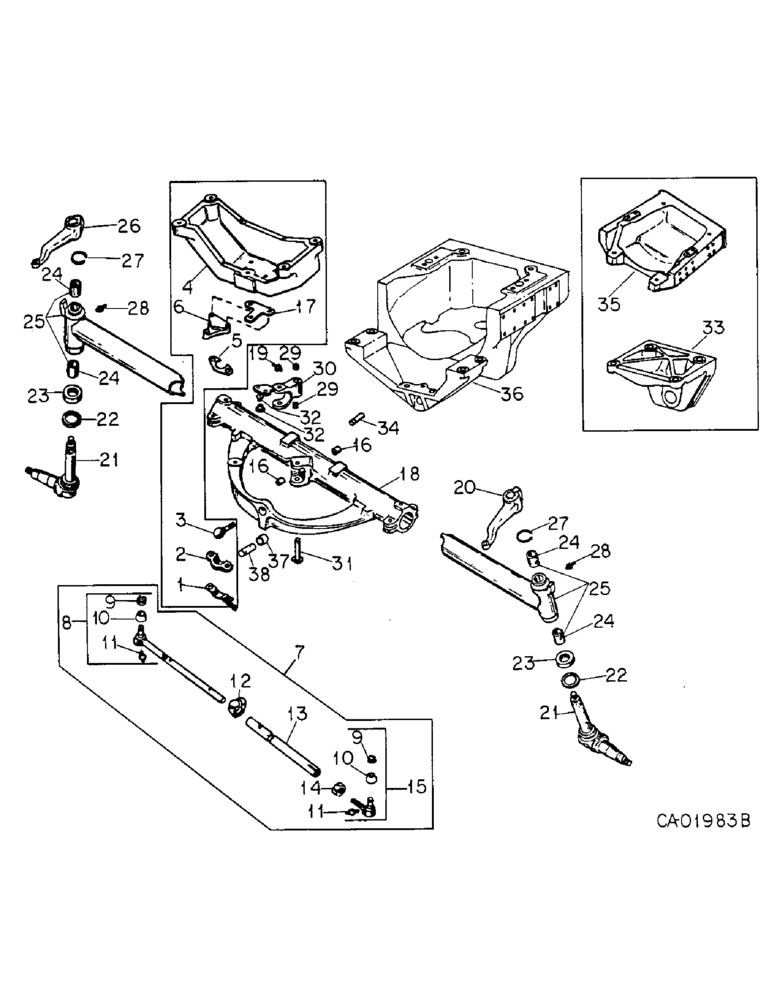

Запчасти Case IH HYDRO 186 (14-01) - SUSPENSION, ADJUSTABLE WIDE TREAD FRONT AXLE, STANDARD AXLE Suspension

1

380008R1

PLATE ASSY.

PLATE, stay rod ball socket cap lock, H168, Serial Range: -11580

1шт.

2

379953R1

CAP

stay rod ball socket, H168, Serial Range: -11580

1шт.

3

65320C3

BALL

front axle stay rod, H168, Serial Range: -11580

1шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

3/4 x 1-1/2 x 10 ga. 2nd

1шт.

274640

LOCK NUT,3/4"-16, GC

NUT, 3/4-16 CAD hex. lock type 8

1шт.

4

531256R2

SUPPORT ASSY.

SUPPORT, stay rod ball socket, H168, Serial Range: -11580

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

4шт.

5

379954R1

SHIM

stay rod ball socket cap, H168, Serial Range: -11580

1шт.

6

533808R1

FIXING BRACKET

SOCKET, stay rod ball, H168, Serial Range: -11580

1шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap

1шт.

223441

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

SCREW, 5/8-11 x 3-1/4 hex-hd cap

2шт.

7

ROD ASSY, tie, not serviced separately order piece part from stock

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

4шт.

8

384441R93

ROD

ASSY, tie LH, axles w/52 to 76 in. tread

1шт.

8

359984R93

TIE-ROD

ROD ASSY, tie LH, axles w/58 to 82 in. tread

1шт.

9

425-1310

SLOTTED NUT,5/8"-18, G5

NUT, 5/8-NF slt type 5

2шт.

10

358900R1

SEAL

COVER, dust

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Threaded tie rod end 1/8"-27 x .66 lg

2шт.

11

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 taper drive self-tap lub, welded tie rod end

1шт.

12

359986R1

CLAMP

tie rod

1шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex

1шт.

414-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

SCREW, 1/2-20 x 2-1/4 hex-hd cap

1шт.

13

384439R1

TUBE,0.937" ID, 1.187" OD, 15.312" Length

tie rod, axles w/52 to 76 in. tread

1шт.

13

383917R1

TUBE

tie rod, axles w/58 to 82 in. tread

1шт.

14

384442R1

JAM NUT

NUT, jam, axles w/52 to 76 in. tread

1шт.

14

374062R1

JAM NUT

NUT, jam, axles w/58 to 82 in. tread

1шт.

15

384440R92

END

ASSY, tie rod RH thread, axles w/52 to 76 in. tread

1шт.

15

384006R92

END

ASSY, tie rod RH thread, axles w/58 to 82 in. tread

1шт.

16

531242R1

BUSHING,50.89mm ID x 54.113mm OD x 38.1mm L

front axle pivot pin

2шт.

17

531250R1

SHIM

stay rod socket .0097, H168 (or as required), Serial Range: -11580

1шт.

17

531251R1

SHIM

stay rod socket .0897, H168 (or as required), Serial Range: -11580

1шт.

17

531252R1

SHIM

stay rod socket .0299, H168 (or as required), Serial Range: -11580

1шт.

18

71818C91

AXLE

w/stay rod assy, front, H168, includes ref no. 3, axle w/52 to 76 in. tread, Serial Range: -11580

1шт.

18

71816C91

CENTER AXLE

AXLE, w/stay rod assy, front, H168, includes ref no. 3, axle w/58 to 82 in. tread, Serial Range: -11580

1шт.

18

137663C91

AXLE

w/stay rod assy, front, H168, includes ref no. 37, axle w/52 - 76 in. tread, Start Serial: 11581

1шт.

18

120733C91

AXLE, REAR

AXLE, w/stay rod assy, front, H168, inclused ref no. 37, axle w/58 - 82 in. tread, Start Serial: 11581

4шт.

24998R1

BOLT,Hex, 3/4" - 16 x 4", Gr 8

3/4-16 x 4 hex-hd type 8

4шт.

218404

NUT,3/4"-16, G8

3/4-NF pln type 8

4шт.

650247R1

HEADED PIN,19.05mm OD x 165.1mm L

PIN, 3/4 x 6-1/2 str-hd

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

19

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

20

531249R2

ARM

RH steering knuckle, Serial Range: -12339

1шт.

20

531249R2GV

STEERING ARM

Value, Steering Knuckle

1шт.

20

148419C1

STEERING ARM

ARM, RH steering knuckle, Start Serial: 12340

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

21

71785C92

STEERING KNUCKLE

KNUCKLE, w/seal, 370254R91 and shield 48701D steering

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt-hex

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

22

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

23

405831R91

BEARING

steering knuckle pivot thrust

2шт.

24

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

4шт.

25

531260R93

AXLE

EXTENSION ASSY, front axle, axle w/52 to 76 in. tread (Replaces 531258R95)

2шт.

25

531260R94

EXTENSION ASSY, front axle, axle w/58 to 82 in. tread

2шт.

26

531248R2

ARM

LH steering knuckle, Serial Range: -12339

1шт.

26

531248R2GV

STEERING ARM

Value, Steering Knuckle

1шт.

26

148418C1

ARM

LH steering knuckle, Start Serial: 12340

1шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-12 hex, jam

1шт.

Q326

WASHER

1-13/32 x 2-3/4 x 18 ga

1шт.

27

(Not used in this application)

1шт.

28

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 drive type str lub, steering knuckle pivot pin

2шт.

29

71788C1

BUSHING,25.4mm ID x 28.6mm OD x 25.4mm L

2шт.

30

71787C91

ARM

ASSY, center steering

1шт.

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

2шт.

31

531239R1

PIN,50.8mm OD x 193.42mm L

center arm pivot

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

Q175

WASHER

1.031 x 1.75 x .042 (or as required)

1шт.

71421C1

WASHER

1.631 x 1.75 x .156 (or as required)

3шт.

32

531237R1

CAP

trunnion

2шт.

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

trunnion cap

2шт.

575812R1

WASHER

21/32 x 1-1/2 x 11 ga

2шт.

33

531263R1

BOLSTER

lower

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd cap type 8

2шт.

28431R1

HEADED PIN,3/8" x 6 1/8"

PIN, 3/8 x 6-1/8 x 5.984 hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

20727R1

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

34

531240R1

AXLE PIN,50.77mm OD x 177.04mm L

PIN, front axle pivot, H168, Serial Range: -11580

1шт.

34

144216C1

AXLE PIN

PIN, front axle pivot, H168, Start Serial: 11581

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, str-lub

1шт.

35

531244R3

DRIVE SPROCKET

BOLSTER ASSY, upper, H168, Serial Range: -11580

1шт.

36

139280C1

BOLSTER

upper, H168, Start Serial: 11581

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2 pln type 8

4шт.

25528R1

NUT,5/8"-11, G8

5/8 PHC type 8

4шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

37

482669R1

BUSHING,31.8mm ID x 34.95mm OD x 26.92mm L

axle rear pivot, H168, Start Serial: 11581

1шт.

38

120732C1

PIN

axle rear pivot, H168, Start Serial: 11581

1шт.

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN, 3/8 x 4.125 pln hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

630101C2

THRUST WASHER

WASHER

1шт.

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING, 1/8 PTF short 65D lub

1шт.
