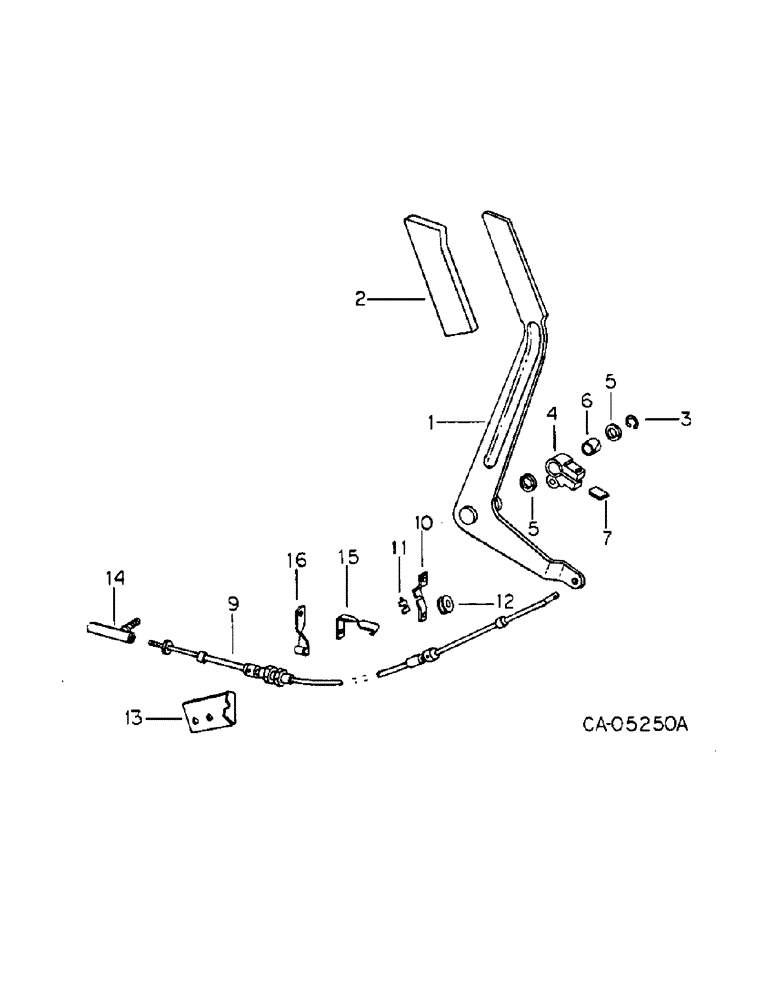

Запчасти Case IH HYDRO 186 (12-07) - POWER, GOVERNOR, CHOKE AND FUEL SHUT-OFF CONTROLS Power

1

104076C2

LEVER

ASSY, governor control

1шт.

2

1259765C1

GRIP

governor control lever

1шт.

3

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, , gov. control shaft #62, .480" Dia, E-Type

1шт.

4

104084C1

CLAMP

friction adjusting

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

1шт.

137544C1

NUT

5/16-24 square

1шт.

532409R1

SPRING WASHER

.331 x .512 x .031 spring

1шт.

5

535684R1

WASHER

lever stop felt, split

2шт.

6

533210R1

BUSHING,19.07mm ID x 20.79mm OD x 17.02mm L

BEARING, friction

1шт.

7

535685R1

SPACER

felt

1шт.

8

(Not used in this application)

1шт.

9

104079C1

CABLE PULLING GRIP

CABLE ASSY, governor control

1шт.

3479

WASHER,7/32" x 9/16" x .060"

.219 x .562 x .054

2шт.

NLS

NO LONGER SERVICED

PIN, 1/16 x 1/2 cot

1шт.

10

104080C1

SUPPORT

gov. cable, bracket

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

104081C1

CLIP

gov. control

1шт.

12

52118D

GROMMET

governor control cable

1шт.

13

144270C1

SUPPORT

governor control cable lower, replaces 104082C1

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

14

120319C2

BALL JOINT

JOINT, over travel ball

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 znd hex

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

120049C1

CLAMP

CLIP, gov. control cable mounted on firewall

1шт.

16

363660R1

CLIP

gov. control cable, replaces 370740R1, mtd rear face on eng. block

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
