Запчасти Case IH HYDRO 186 (12-04) - POWER, FUEL TANK AND SUPPORT Power

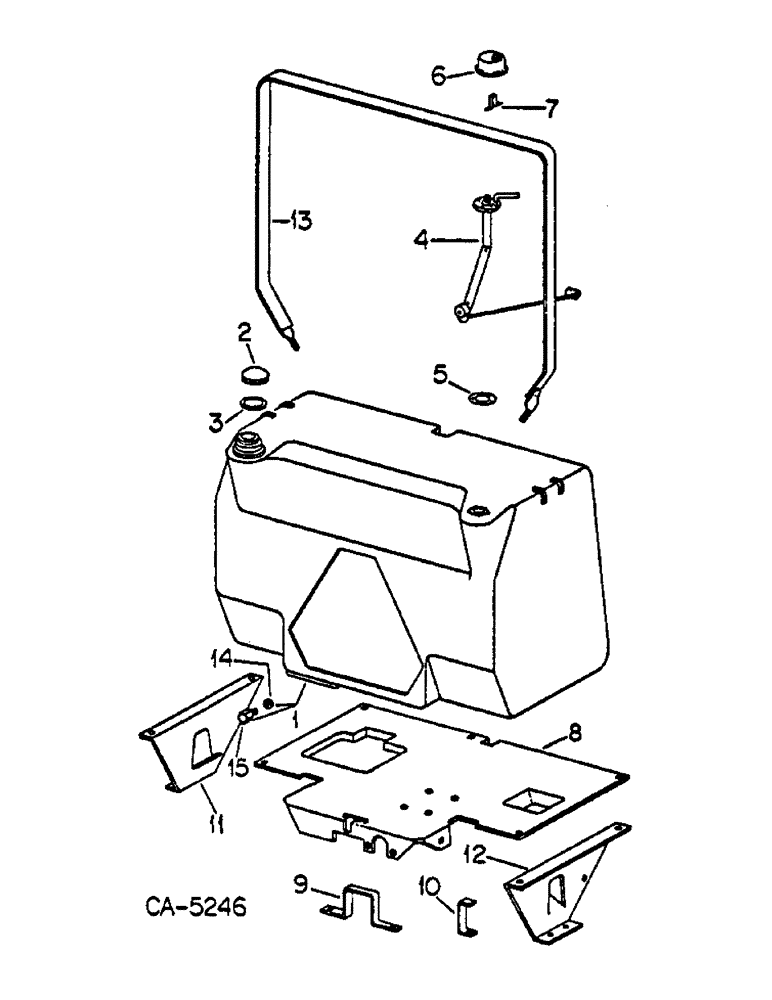

Схема запчастей Case IH HYDRO 186 - (12-04) - POWER, FUEL TANK AND SUPPORT Power
12
10
4
3
6
11
5
13
9
8
15
1
2
7
14

Артикул

Название

Примечание

Количество

1

72905C2

TANK ASSY, fuel, 50 gal, without auxiliary tank, replaces 104630C1

1шт.

2

104781C1

CAP

fuel tank filler

1шт.

3

23977DB

GASKET

fuel tank filler cap

1шт.

4

107374C2

ELECTRICAL GAUGE

GAGE, electric fuel, sending unit, tractor w/o auxiliary fuel tank

1шт.

4

107531C2

ELECTRICAL GAUGE

GAGE, electric fuel, sending unit, tractor w/auxiliary fuel tank

1шт.

5

104812C1

GASKET

sending unit

1шт.

423546

SCREW,Hex Hd, #10-24 x 3/4", w/LW

10-24 x 3/4 hex-hd mach w/ext tooth lock washer

5шт.

6

120194C1

CAP

fuel gauge sending unit

1шт.

7

120193C2

CLAMP

cap mounting, bracket

1шт.

261-1458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW, 10-24 x 1/2 cr-res-pan type D

1шт.

8

103939C1

SUPPORT ASSY, fuel tank

1шт.

619008R1

BOLT

1/2 x 1 pln crg type 5

4шт.

102637

NUT,1/2"-13, G5

4шт.

9

104723C1

SUPPORT

fuel tank front, bracket

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

10

104722C1

CHANNEL

tank support rear, bracket

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

11

103941C1

SUPPORT

LH, bracket

1шт.

12

103942C1

SUPPORT

RH, bracket

1шт.

NLS

NO LONGER SERVICED

4шт.

127507H

WASHER

.406 x .875 x .164 pln flat

4шт.

102635

NUT,3/8"-16, G5

4шт.

13

103945C1

STRAP

ASSY, fuel tank hold down

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

14

120156C1

NUT

fuel tank

1шт.

15

120157C1

CONNECTOR, ELEC

CONNECTOR, fuel tank

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

flat

1шт.

407220R1

PRODUCT GRAPHIC

PACKAGE, SMV emblem

1шт.

79718C91

BRACKET

PACKAGE, SMV mounting bracket, H186, Serial Range: -11030

1шт.

21737R1

BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2

5/16 x 5/8 crg type 1

2шт.

19296R1

NUT,5/16"-18, G5

5/16 CAD type 5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

202013C2

TRAFFIC SIGN

PRODUCT GRAPHIC, SMV, H186, Start Serial: 11031

1шт.

144261C2

FASTENER

SMV hold down, used with 202013C2

1шт.

Выбрано товаров: 35
