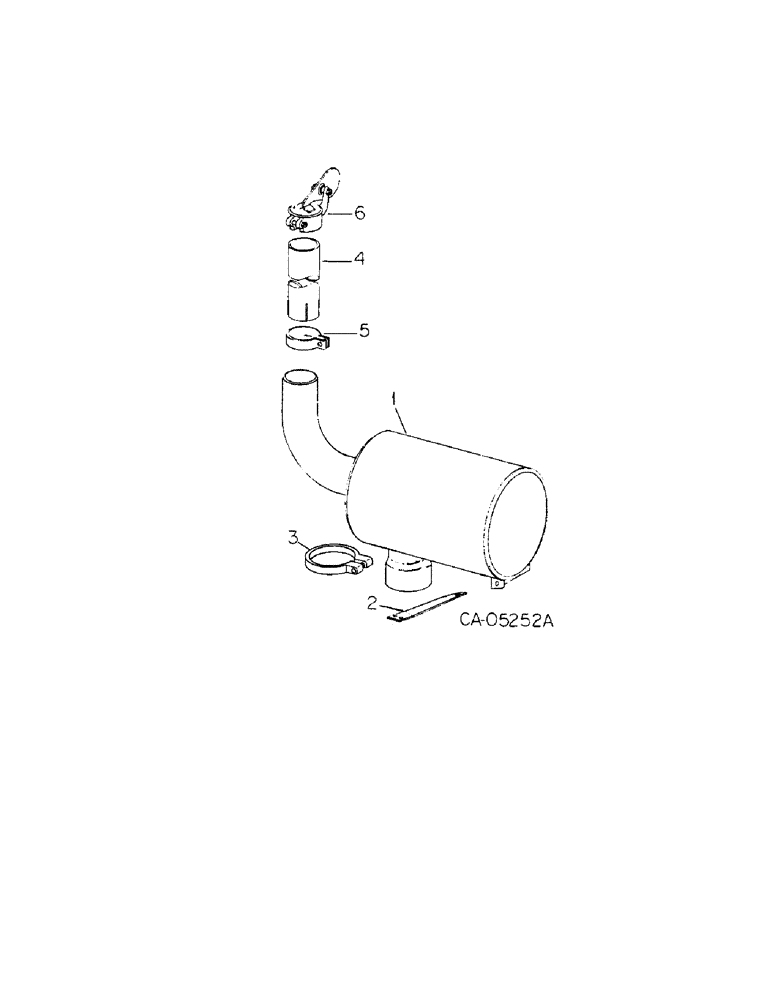

Запчасти Case IH HYDRO 186 (12-03) - POWER, EXHAUST SYSTEM Power

1

131108C1

MUFFLER

exhaust, replaces 104751C1

1шт.

2

103961C1

SUPPORT

muffler rear

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

3

681515C1

CLAMP,82.55mm

muffler

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 type 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

146520C2

PIPE

exhaust, replaces 103983C1

1шт.

5

663432C1

CLAMP,69.85mm - 82.65mm

exhaust

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd

1шт.

25544R1

WASHER,13/32" x 13/16" x .134", HDN

.406 x .812 x .134 PHC hardened

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

6

321575R91

CAP

ASSY, exhaust, used w/103983C1

1шт.
