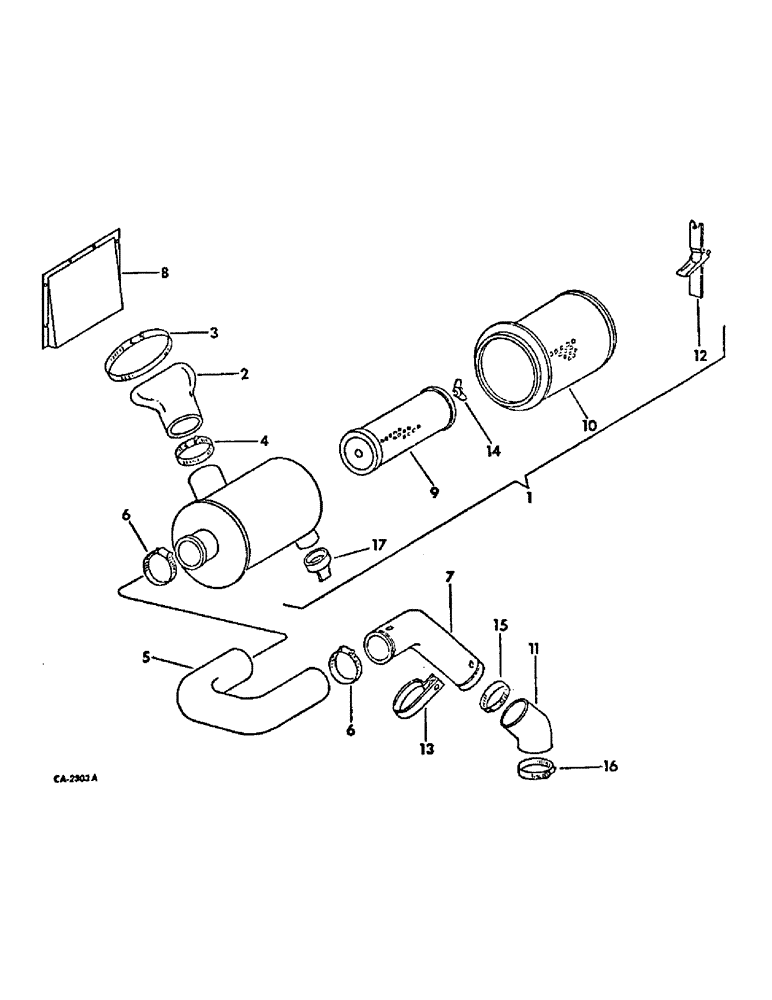

Запчасти Case IH HYDRO 186 (12-01) - POWER, AIR CLEANER AND CONNECTIONS Power

1

120164C92

CLEANER ASSY, air

1шт.

25522R1

NUT,3/8"-16, G8

3/8 PHC type 8

2шт.

2

120165C1

HOSE ASSY.

HOSE, air cleaner intake

1шт.

3

427312R91

HOSE CLAMP,#100, 5.88/6.75 Type F Worm

CLAMP, intake hose front

1шт.

4

274090R91

HOSE CLAMP,3.75/4.63 Type F Worm

CLAMP, intake hose rear

1шт.

5

532449R1

INTAKE AIR HOSE

HOSE, air cleaner outlet

1шт.

6

146569C1

CLAMP

air cleaner outlet hose, replaces 397257R1

2шт.

7

532456R21

PIPE CLAMP

PIPE ASSY, air cleaner outlet

1шт.

8

120201C1

BAFFLE

pre-cleaner

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

9

529852R5

AIR FILTER

ELEMENT ASSY, safety

1шт.

10

71912C2

AIR FILTER

ELEMENT ASSY, primary

1шт.

11

104476C1

INTAKE AIR HOSE,3.00" ID, 3.25" ID x 5.70"

HOSE, air intake manifold elbow

1шт.

12

71913C1

LOCK VALVE

LEVER ASSY, element

1шт.

13

120080C1

CLAMP

air cleaner pipe support

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

14

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY, safety element

1шт.

15

146569C1

CLAMP

air intake manifold elbow hose upper, replaces 397257R1

1шт.

16

146569C1

CLAMP

air intake manifold elbow hose lower, replaces 400446R1

1шт.

17

383734R2

VALVE

dust unloader

1шт.
