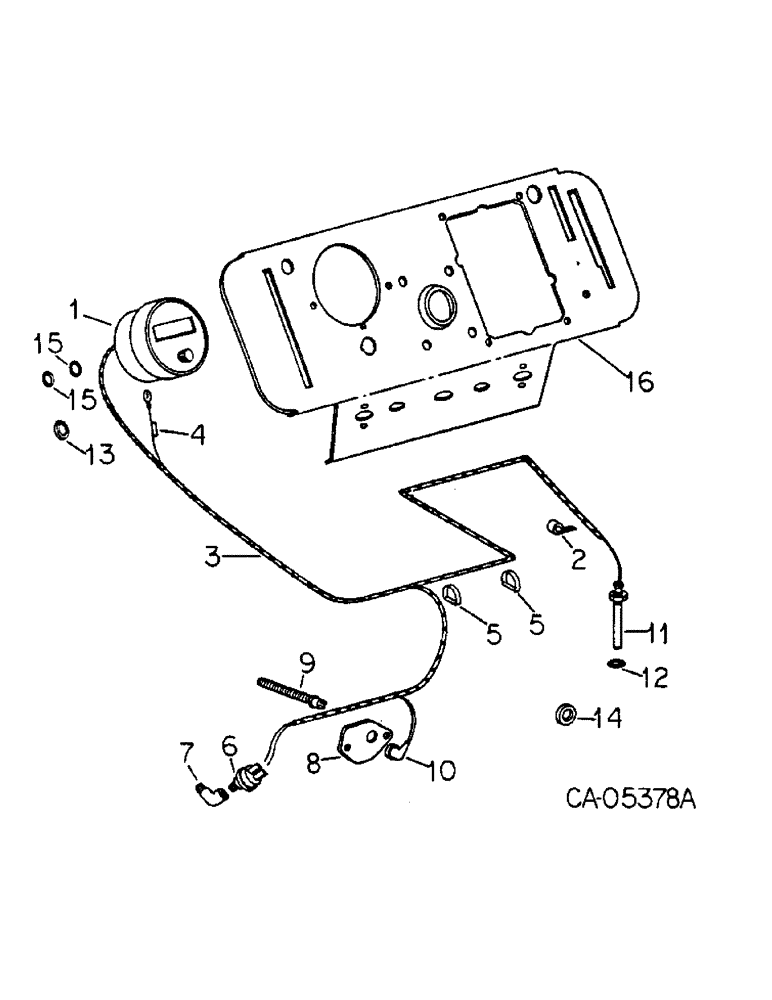

Запчасти Case IH HYDRO 186 (11-03) - INSTRUMENTS, DIGITAL TACHOMETER AND SPEEDOMETER, HYDRO 186 TRACTORS WITH SERIAL NO. 10054 AND BELOW Instruments

1

131161C1

GAUGE

TACHOMETER AND SPEEDOMETER, digital gauge, renewed

1шт.

103957C1

NUT

j-shape

2шт.

27076R1

SCREW,Cross Oval Hd, #10 x 1"

10-16 x 1 cr-rec-ov-hd tap

2шт.

131141C1

PRODUCT GRAPHIC

digital data gauge

1шт.

2

366460R1

CABLE CLIP

CLIP, harness

1шт.

3

121972C1

HARNESS

ASSY, digital monitor, tractor w/transducer 121624C1 also require 1, 130950C1 adapter cable

1шт.

130838C1

RECTIFIER

ASSY, zener diode, Serial Range: -9516

1шт.

130950C1

CABLE

ASSY, adapter, Serial Range: -9516

1шт.

4

9426867

FUSE,3 Amp, Type 3AG

cartridge tyep 2 amp

1шт.

5

289862C1

CABLE TIE,3/16" x 7"

STRAP, wiring

8шт.

6

132244R91

SWITCH

pressure

1шт.

384396R1

SPADE TERMINAL,Male

ADAPTER, terminal

2шт.

7

9409930

ELBOW UNION

ELBOW, 1/8-27 auto 45 deg street pipe

1шт.

8

121786C2

COVER

RPM transducer mounting

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

9

121624C1

SENSOR

TRANSMITTER, RPM transducer, Serial Range: -9516

1шт.

9

130908C2

TRANSMITTER

RPM transducer, Start Serial: 9517

1шт.

138506

LOCK WASHER,Ext Tooth, 3/4"

WASHER, 3/4 ext. tooth lock

1шт.

10

121552C1

INSULATOR

RPM transducer boot, Serial Range: -9516

1шт.

11

121869C2

TRANSMITTER

MPH transducer

1шт.

138502

WASHER,Ext Tooth, 5/8"

5/8 ext. tooth lock

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32

1шт.

445096

PLUG

7/8-18 hex-hd mech tach drive adapter

1шт.

13

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET, mech tach drive adapter

1шт.

14

343828R1

PLUG,Cup, 1 13/16"

1-13/16 cup

1шт.

15

432327

HOLE PLUG BUTTON,1"

PLUG, no. 1 botton firewall

2шт.

16

121978C1

PANEL ASSY, instrument

1шт.
