Запчасти Case IH HYDRO 186 (11-01) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES Instruments

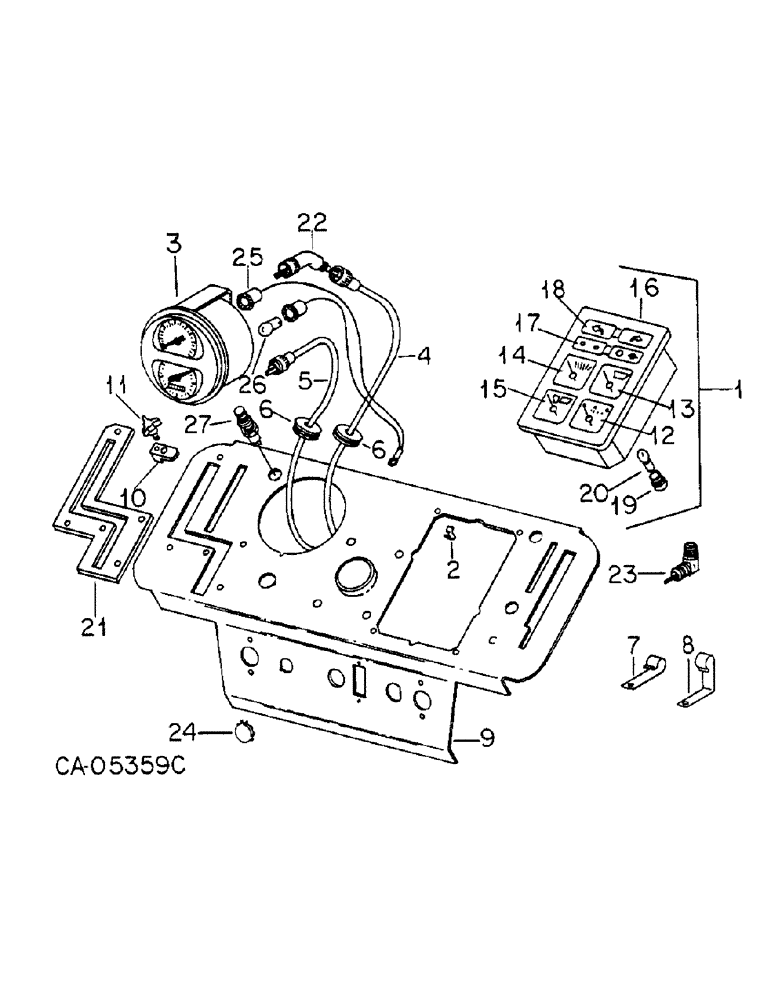

Схема запчастей Case IH HYDRO 186 - (11-01) - INSTRUMENTS, INSTRUMENT PANEL AND GAUGES Instruments
6
6
1
23
7
14
26
21
15
27
4
2
19
16
18
22
3
10
12
17
24
9
11
25
5
20
8
13

Артикул

Название

Примечание

Количество

1

107336C92

CLUSTER

ASSY, instrument

1шт.

2

103957C1

NUT

j-shape spring

4шт.

27076R1

SCREW,Cross Oval Hd, #10 x 1"

10-16 x 1 oval hd CR PHC type AB

4шт.

3

71853C1

CLUSTER

GAUGE ASSY, speedometer/tachometer

1шт.

4

402024R92

CABLE ASSY.

CABLE ASSY, speedometer flexible drive

1шт.

5

401830R92

CABLE

ASSY, tachometer flexible drive

1шт.

6

123548H

GROMMET

cable

2шт.

7

399657R1

CLIP

tachometer cable

1шт.

8

406123R1

CLAMP

CLIP, speedometer cable

1шт.

9

104352C2

PANEL ASSY, instrument

1шт.

160682

SCREW,Cross Pan Hd, 5/16" x 1/2"

5/16 x 1/2 PHC P/HD CR mach

4шт.

10

120168C2

STOP

control handle detent

1шт.

11

399023R2

KNOB

fluted

1шт.

16559R1

WASHER,1/4"

.266 x .625 x .036

1шт.

12

121604C1

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

13

121605C2

ELECTRICAL GAUGE

GAUGE, temperature

1шт.

14

121606C1

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

15

121607C1

METER

VOLTMETER

1шт.

16

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

refer #16 (P/N 121608C1) -> box not included. Must order cluster assy #107336C92

1шт.

17

121609C1

LENS

warning light

1шт.

18

121610C1

LENS

turn signal

1шт.

19

121611C1

SOCKET

ASSY, instrument cluster

8шт.

20

20627R1

BULB,C2F, #194, 14V

lamp no. 194

8шт.

21

104459C1

PLATE

shift guide

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

22

120440C1

ADAPTER, 45 deg. angle speed drive

1шт.

23

671806C1

DRIVE

ADAPTER, right angle tach drive

1шт.

683079C1

NUT

SEAL, locknut

1шт.

24

432281

HOLE PLUG BUTTON,29/32"

PLUG, button

1шт.

25

104822C1

SOCKET

ASSY, tachometer inst. light

1шт.

26

9417863

BULB,C2F, #1895, 14V

no. 1895 12-volt light, instrument lighting

2шт.

27

107370C91

HOUSING

ASSY, instrument panel light, consists of

2шт.

200557H1

BULB,C2V, #1815, 14V

LAMP

1шт.

130894C1

LENS

1шт.

Выбрано товаров: 37
