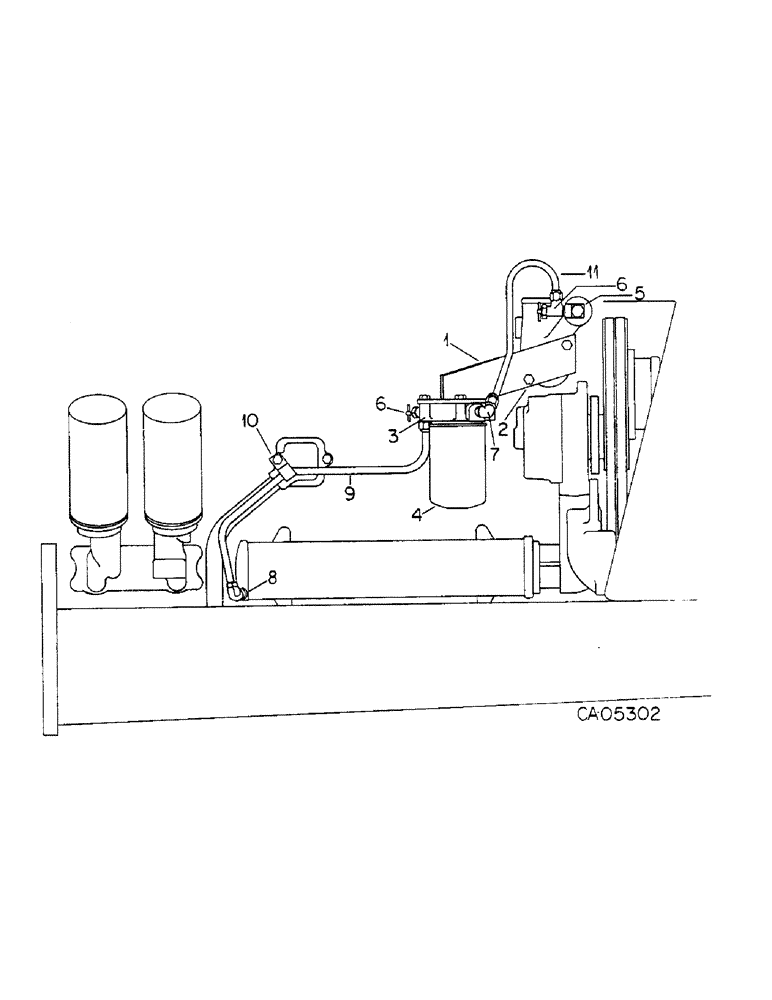

Запчасти Case IH HYDRO 186 (06-06) - COOLING, COOLANT FILTER, CONDITIONER Cooling

121897C92

FILTER

PARTS ACCESSORY, coolant filter conditioner, consists of ref nos 1 through 11 plus

1шт.

115224

ADAPTER

3/4 to 3/8 pln out/h/hd pipe

1шт.

675384C1

GASKET

thermostat housing

1шт.

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 pln sq/skt auto pipe instructions (NSS)

1шт.

1

121881C1

BRACKET

ASSY, water filter

1шт.

2

SA2172

SPACER,3/8" Pipe x 1/2"

3/8 x 1/2 std pipe

2шт.

24844R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

2шт.

3

427446C1

HEAD

BASE, water filter

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

4шт.

4

1801090C1

FILTER

w/gasket, coolant, replaces 690171C1

1шт.

5

444150

TEE,3/8"-18 NPTF Fem x 3/8"-18 NPTF Male Run

3/8-18 pln int/ext/int auto pipe

1шт.

6

121894C1

FAUCET,3/8" - 18 NPTF x 5/8" - 24

VALVE, shut off

2шт.

7

606618C1

ELBOW UNION

ELBOW, water filter base

1шт.

8

121750C1

ELBOW

oil cooler

1шт.

9

TUBE, water inlet, use 23.1 in. of 3/8 OD tubing from a 50 ft roll marked 995063R1, plus 1 nut 137399, 1 nut 265205R1 and 1 sleeve 265204R1

1шт.

10

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, water inlet tube hold-down

1шт.

11

TUBE, water outlet, use 14 in. of 3/8 OD tubing from a 50 ft roll marked 995063R1, plus 2 nuts 265205R1 and two sleeves 265204R1

1шт.
