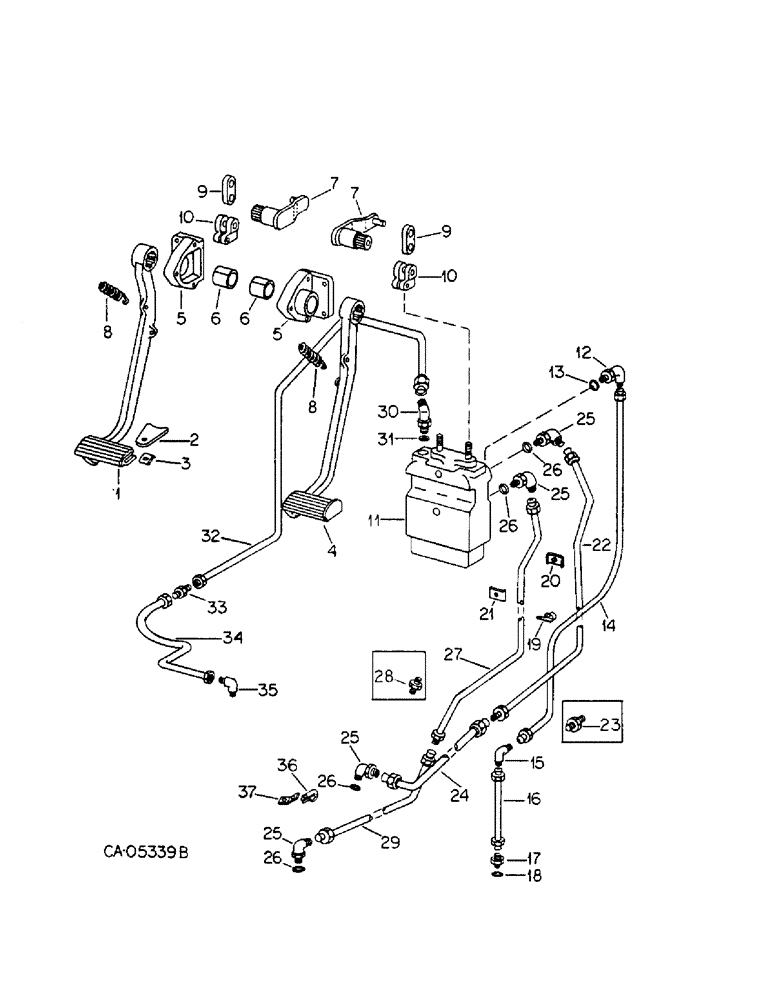

Запчасти Case IH HYDRO 186 (04-02) - BRAKES, MASTER BRAKE CONTROLS (5.1) - BRAKES

1

103953C1

PEDAL

LH brake

1шт.

26592R1

SCREW

3/8-16 x 1-1/2 hex-soc-hd half dog-pt set

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

2

120451C1

PLATE

brake pedal lock

1шт.

3

51293D

SPRING

brake pedal lock tension

1шт.

20895R1

PIN,1/4" x 1", Coiled

1шт.

4

103955C1

PEDAL

RH brake

1шт.

26592R1

SCREW

3/8-16 x 1-1/2 hex-soc-hd half dog-pt set

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

5

120175C91

HOUSING

ASSY, brake pedal

2шт.

6

120171C1

BUSHING

brake pedal pivot, bearing

2шт.

16073R1

SCREW, 5/16-18 x 2-3/8 hex-hd cap

3шт.

9635082

NUT,5/16" - 18, Gr 5

3шт.

181106

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 PHC hex-hd cap

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24497R1

WASHER

.344 x 1.250 x .105 znd

2шт.

7

103956C2

LEVER

ASSY, brake pedal & valve

2шт.

8

104783C1

SPRING

brake pedal return

2шт.

1259506C1

CONDUIT

LH return spring

1шт.

9

384082R1

LINK

brake operating

2шт.

21263R1

CLEVIS PIN,1/2" x 1 11/16'"

PIN, 1/2 x 1-11/16 C-Z rod end

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

4шт.

10

384083R2

YOKE

YOKE, brake operating

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

72807C93

VALVE

PACKAGE, power brake valve service, for list of serviceable parts, see power brake valve this group

1шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8 x 3-1/2 pln type 5

1шт.

20285H

WASHER

.406 x .750 x .105 pln

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

12

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90d

1шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

14

104819C1

HYD TUBE

TUBE ASSY, brake pressure, front

1шт.

15

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube 90d elbow

1шт.

16

104818C1

HYD TUBE

TUBE ASSY, brake pressure, rear

1шт.

17

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 37 deg flared tube short swivel

1шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, pressure pipe

2шт.

20

535306R1

CLAMP

ASSY, front brake tube, replaces 384885R11

1шт.

21

535307R1

CLAMP

front brake tube, replaces 384855R1

1шт.

179795

TILLAGE BLADE

1/4-20 hex

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

104448C2

TUBE

ASSY, front brake, LH

1шт.

23

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

37 deg flared tube 3/8 OD, H186, not required with 104448C2, Serial Range: -9419

1шт.

24

120075C2

HYD TUBE,0.375" OD, 916.94, 399.54 mm Length

TUBE ASSY, rear brake, LH

1шт.

25

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj str thd 90 deg

4шт.

26

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

27

104446C2

TUBE

ASSY, front brake, RH

1шт.

28

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

37 deg flared tube 3/8 OD, H186, not required with 104448C2, Serial Range: -9419

1шт.

29

104447C1

TUBE

ASSY, rear brake, RH

1шт.

30

9411104

ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

37 deg flare 3/8 OD tube

1шт.

31

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

32

104478C2

HYD TUBE

TUBE ASSY, brake dump front

1шт.

33

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

37 deg flared 3/8 OD tube

1шт.

34

104479C1

PIPE

TUBY ASSY, brake dump rear

1шт.

35

333934R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

3/8-18 pipe thd

1шт.

36

155850H1

CLAMP,3/8", 1/4" Bolt

3/8 closed

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

109084

NUT,1/4"-20, G5

1шт.

37

120433C1

SUPPORT

tubing clip

1шт.
