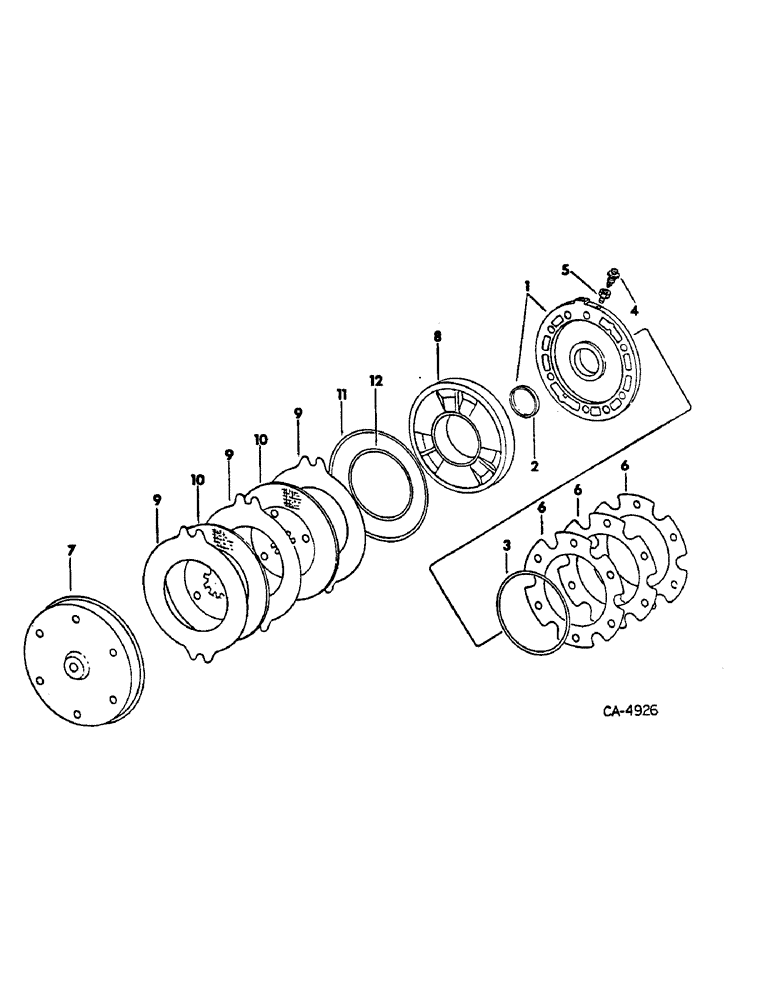

Запчасти Case IH HYDRO 186 (04-01) - BRAKES, MASTER BRAKES (5.1) - BRAKES

1

104658C91

HOUSING

ASSY, brake piston

2шт.

2

104763C1

WASHER,56.39mm ID x 76.45mm OD x 0.69mm Thk

brake lub oil

2шт.

23896R1

DOWEL,5/8" x 3"

PIN, 5/8 x 3 dowel

4шт.

3

530789R1

O-RING,6.712" ID x 0.139" Width

O-RING, brake piston housing sealing

2шт.

4

82301R1

BLEEDER,3/8" - 24 x 117mm

brake bleed, replaces 3068777R1

2шт.

5

397338R1

CONNECTOR, ELEC

CONNECTOR, bleeder valve

2шт.

6

391816R1

SHIM

piston housing, .035 (or as required)

2шт.

6

391817R1

SHIM

piston housing, .012 (or as required)

4шт.

6

391818R1

SHIM

piston housing, .007 (or as required)

6шт.

6

391819R1

SHIM

piston housing, .004 (or as required)

1шт.

6

391820R1

SHIM

piston housing, .003 (or as required)

1шт.

7

104654C2

HOUSING

brake

2шт.

26487R1

BOLT,Locking, 5/8"-11 x 4 1/2", G8

5/8 x 4-1/2 PHC P/T type 8

8шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3.25 hex-hd cap, Course Threads

4шт.

8

104655C1

PISTON

brake

2шт.

9

PLATE, brake separator, not serviced separately, order service package 120235C93

1шт.

10

PLATE, brake friction, not serviced separately, order service package 120235C93

1шт.

11

21472R1

O-RING,0.139" Thk x 8.234" ID, -267, Cl 6, 90 Duro

8-1/4 x 8-1/2 x 1/8 piston outer

2шт.

12

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

3-1/4 x 3-1/8 x 1/8 piston inner

2шт.

474517C2

GASKET

TUBE, gasket eliminator

1шт.

120235C93

PACKAGE

power brake friction plates, separators and o-ring seal service, two required per tractor, also furnish a tube of loctite, 474517C2

1шт.

Consists of (6) friction plates (104712C2), (7) separator plates (104713C1), (1) o-ring 530789R1, (1) o-ring 21472R1, (1) o-ring 354836R1, (1) o-ring 359158R1, (1) switch 130979C1, (1) retainer 121814C1, (1) washer 120217, (1) washer 120614, (1) insulator 399470R1, (1) terminal 365501R1

1шт.
