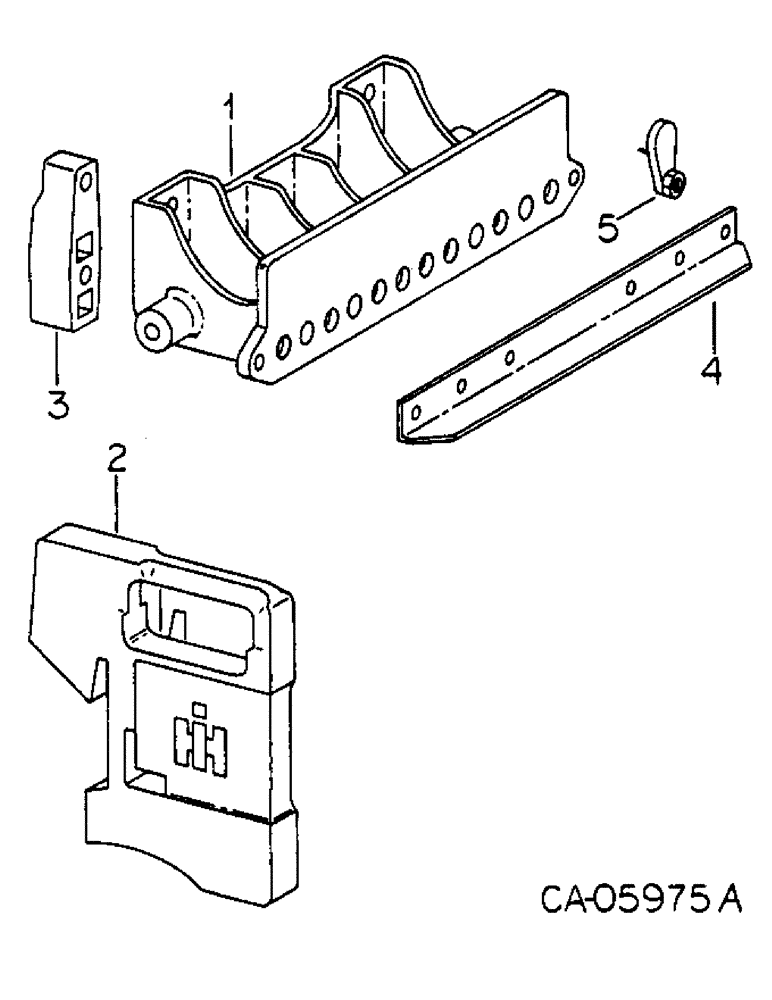

Запчасти Case IH HYDRO 186 (09-06) - FRAME, FRONT END WEIGHT BRACKET AND WEIGHTS (12) - FRAME

1

394447R21

BRACKET ASSY, front weight

1шт.

22854R1

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

3/4 x 2-3/4 type 8, Serial Range: -11580

4шт.

931605R1

BOLT,Hex, M20 x 2.5 x 50mm, Cl 8.8, Full Thd

M20 x 50 pln class 8.8, for tractors equipped w/tricycle bolster or two piece bolster part no. 531244R1, Start Serial: 11581

4шт.

22854R1

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 8

3/4 x 2-3/4 type 8, for tractors equipped with one piece bolster part no. 139280C1

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga

2шт.

2

71199C1

WEIGHT

front end, 67 lbs

1шт.

2

WEIGHT, front end, 100 lbs, replaces 71200C1, 74178C1 and 74157C1, serviced only as machine attachment

1шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

SCREW, 1/2 x 4 hex-hd cap

1шт.

125536

SQUARE NUT

1/2-13 reg square

1шт.

3

536041R1

SPACER

front weight bracket

2шт.

105611

NUT

3/4-10 sq

4шт.

30095R1

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

M20 x 80 PHC class 10.9

4шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

weight bracket spacer

4шт.

4

536043R1

BAR

front weight retaining

1шт.

5

74202C1

CAM

ASSY, front weight locking, replaces 536044R1

2шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 type 5

2шт.

21793R1

WASHER

21/32 x 1-1/4 x 7 ga

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex

2шт.
