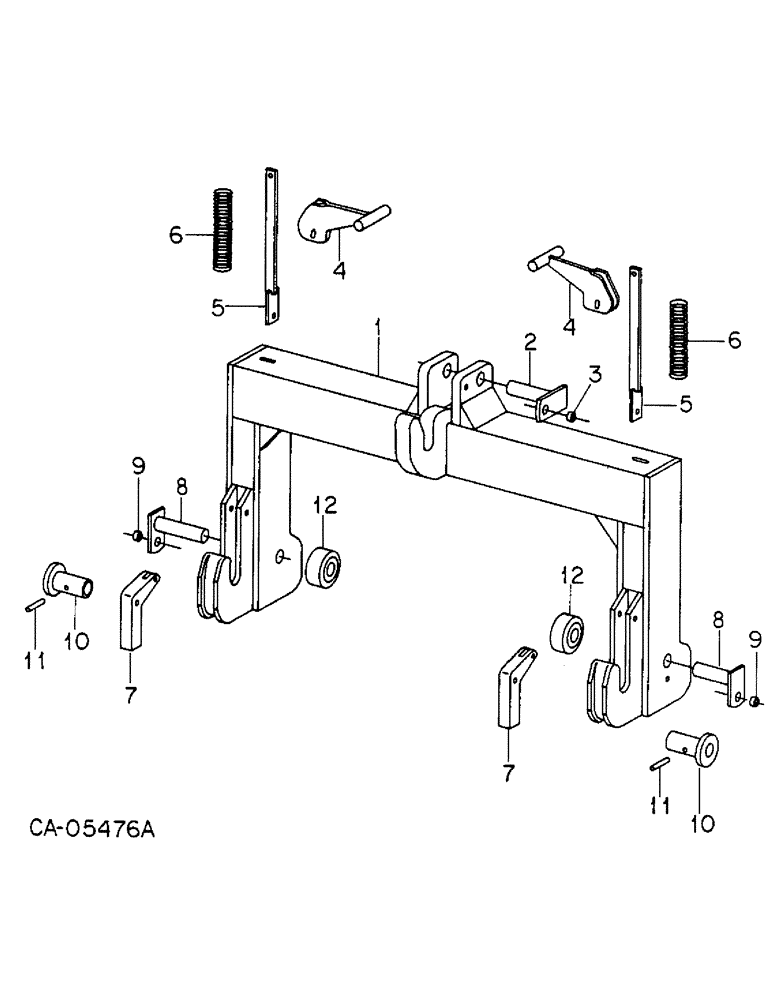

Запчасти Case IH HYDRO 186 (09-05) - FRAME, THREE POINT HITCH QUICK COUPLER ATT. (12) - FRAME

1255075C91

COUPLING

COUPLER ASSY, category II quick, replaces 62784C91

1шт.

1

FRAME ASSY, coupler main, not serviced separately order coupler assy 1255075C91

1шт.

2

64712C1

PIN

ASSY, uppler link

13шт.

3

64714C1

BUSHING

pin retainer

1шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074

1шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 PHC P/T type 8

1шт.

4

64715C1

HANDLE

latch

2шт.

39374D

CLEVIS PIN,5/16" x 1 1/16"

PIN, 5/16 x 1-1/16 clevis HT

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

5

64716C1

BAR

spring, used on coupler 62784C91

2шт.

5

1266789C1

BAR

spring, used on coupler 1255075C91

2шт.

6

64717C1

SPRING

latch

2шт.

7

64718C1

LUG

lock, latch, used on coupler 62784C91

2шт.

7

1266791C1

LUG

lock, latch, used on coupler 1255075C91

2шт.

19555R1

PIN,5/16" x 1", Coiled

2шт.

28385R1

PIN, 1/2 x 2 coiled spring HV

2шт.

8

64719C1

PIN

lower link, used on coupler 62784C91

2шт.

19795R1

PIN,1/4" x 1 3/4", Coiled

Lower link, used on coupler 1255075C91 1/4" x 1 3/4", Coiled

2шт.

9

64714C91

BUSHING, pin retainer, used on coupler 1255075C91

2шт.

495-11053

WASHER,1/2", SAE

.531 x 1.062 x .074

2шт.

26317R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

1/2 x 1-1/4 PHC P/T type 8

2шт.

10

401232R1

ADAPTER

implement lower hitch pin

2шт.

11

21926R1

PIN,7/16" x 1 3/8", Coiled

2шт.

12

(Not used in this application)

1шт.

535448R1

BUSHING

lower link hitch ball

1шт.
