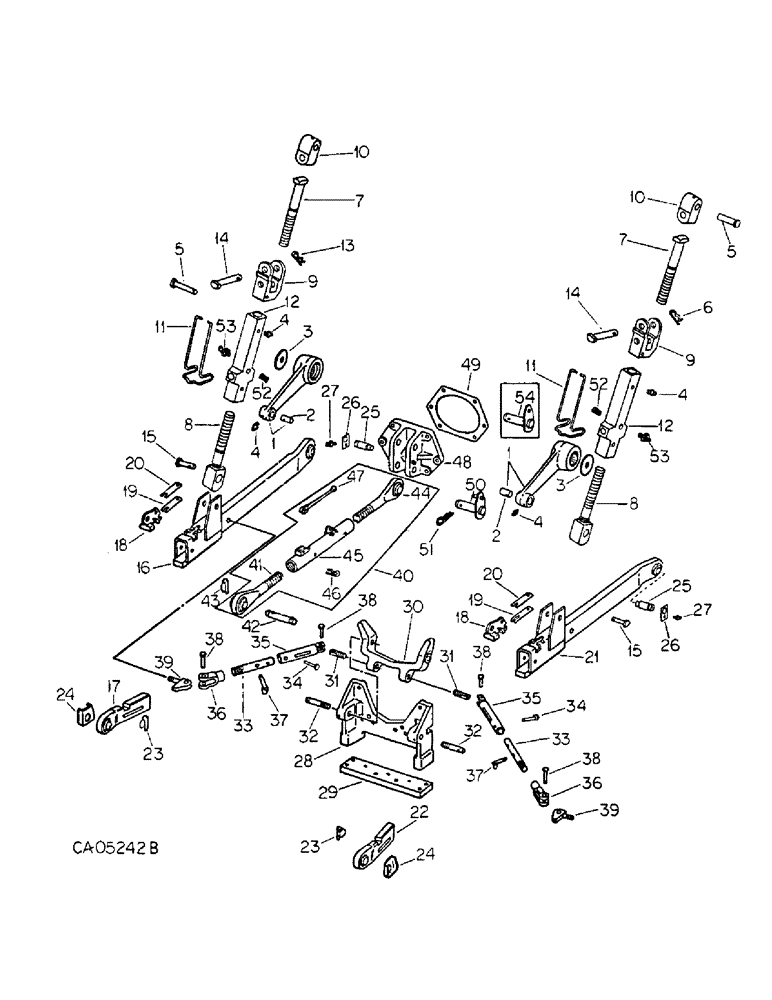

Запчасти Case IH HYDRO 186 (09-03) - FRAME, THREE POINT HITCH ATTACHMENT, TRACTORS WITH DRAFT CONROL AND DRAFT SENSING (12) - FRAME

1

382156R11

ARM

ASSY, rockshaft

2шт.

2

383357R1

BUSHING,28.56mm ID x 33.38mm OD x 63.5mm L

rockshaft arm

2шт.

3

388574R1

WASHER,16.51mm ID x 82.55mm OD x 4.78mm Thk

rockshaft arm retainer

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

2шт.

4

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

4шт.

5

108603C1

AXLE PIN

PIN, leveling screw pivot

2шт.

Q3482

WASHER

1-5/32 x 1-3/4 x 11 ga

2шт.

6

520175R1

CLIP

PIN, quick attachable cotter

2шт.

7

108584C1

ROD

upper leveling

2шт.

8

71433C1

ROD

lower leveling

2шт.

9

108585C1

YOKE

lift link

2шт.

10

71434C1

TRUNNION

SWIVEL, lift link

2шт.

11

123464C1

CLAMP

BAIL, turnbuckle lock

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, .406ID x .812OD x .051

4шт.

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 lock

2шт.

12

72877C1

TURNBUCKLE

lift link, replaces 108588C1, also furnish one 444693 pipe plug and one 273349 lube fitting

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

27357R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3.750 pln hd type 5

2шт.

13

480523R1

HAIR PIN COTTER

quick attachable

2шт.

14

108582C1

PIN

3/4 X 3-3/4 headed

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

15

392915R1

AXLE PIN

PIN, leveling screw housing, H186, Serial Range: -10372

2шт.

15

392915R1

AXLE PIN

PIN, sq neck carriage, H186, Start Serial: 10373

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

16

109077C91

LINKAGE

LINK, w/bushing, front section lower LH, replaces 398251R92

1шт.

17

398371R11

DRAG LINK

LINK ASSY, rear section lower LH

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

18

398373R1

LATCH

lower link

2шт.

19

382192R1

SPRING

lower link latch

2шт.

20

382193R1

SPRING

stiffener

2шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

2шт.

21

109078C91

LINK

w/bushing, front section lower RH, replaces 398252R92

1шт.

22

398372R11

DRAG LINK

LINK ASSY, rear section lower RH

1шт.

20126R1

PIN,1/2" x 2", Coiled

1шт.

23

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSY, drawbar

2шт.

24

404787R1

SHIELD

linch pin

2шт.

25

406685R1

PIN,25.4mm OD x 101.6mm L

lower link

2шт.

26

406687R1

RETAINER

lower link pin

2шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight 1/4"-28 NPT x .54" lg

2шт.

28

108501C1

SUPPORT

drawbar, Serial Range: -9158

1шт.

28

72392C1

SPROCKET ASSY.

SUPPORT, drawbar, Start Serial: 9159

1шт.

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

SCREW, 5/8-18 x 1-3/4 hex-hd cap, RH crank arm stop, Fine Thread

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

RH crank arm stop Jam, 5/8"-18, G5

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

8шт.

29

400714R1

BAR

PLATE, drawbar support, used with support 108501C1

1шт.

29

73157C1

LARGE PLATE

PLATE, drawbar support, used with support 72392C1

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, 3/4-10 x 2-1/4 hex-hd cap

4шт.

30

382386R2

ARM

stabilizer control

1шт.

31

382390R1

BOLT (SPREADER),1 1/4" - 7 x 2.38"

SHAFT, stabilizer control arm

2шт.

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

Pin, 3/8" x 2 1/8", Slotted

2шт.

427651

SLOTTED NUT,1"-14, G5

NUT, 1-14 slt hex

2шт.

119179

PIN, 3/16 x 1-7/8 cotter

2шт.

32

383362R2

AXLE PIN,25.4mm OD x 106.68mm L

EYEBOLT, stabilizer front

2шт.

REF: # 32 SHOULD BE 383362R2. AND THE PARTS LISTED UNDER REF: # 31 STILL GO WITH 383362R2 SHAFT.

1шт.

33

386198R1

STUD

lateral limiter

2шт.

34

527374R1

AXLE PIN,12.7mm OD x 57.15mm L

PIN, 1/2 x 2-1/4 headed

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

17/32 x 1-1/16 x .095

2шт.

364436R1

PIN,3/16" x 1", Coiled

2шт.

35

406243R2

UPPER LINK

YOKE, lateral limiter

2шт.

36

406244R2

YOKE

limiter rear

2шт.

37

383363R11

AXLE PIN

PIN ASSY, lockout

2шт.

520175R1

CLIP

PIN, quick attachable cotter

2шт.

38

384852R1

AXLE PIN

PIN, stabilizer

4шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

4шт.

39

382397R1

BOLT,3/4" - 16 x 2", Drilled

EYEBOLT, stabilizer rear

2шт.

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-16 slt hex

2шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

40

108632C93

TURNBUCKLE

ASSY, upper link

1шт.

41

395030R1

SCREW

ASSY, LH thread

1шт.

42

374132R1

PIN

upper link implement, replaces 380563R91

1шт.

43

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement pin retaining

1шт.

44

395033R1

SCREW

ASSY, RH thread

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

2шт.

45

404633R2

TURNBUCKLE

upper link

1шт.

46

517843R1

COTTER PIN

PIN, quick attachable cotter

1шт.

47

108592C2

HANDLE

upper link turnbuckle

1шт.

SB191

HEADED PIN,3/8" x 1 3/4"

PIN, 3/8 x 1-3/4 std-hd

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

48

382212R4

ASSEMBLY

BRACKET, upper link

1шт.

19424R1

PIN,3/8" x 1 1/2", Coiled

1шт.

20661R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

SCREW, 5/8-11 x 2 hex-hd cap type 4

6шт.

49

383330R1

GASKET

draft control adj opening cover

1шт.

50

135779C1

PIN ASSY.

PIN ASSY, upper link bracket, Serial Range: -10826

1шт.

51

520175R1

CLIP

PIN, quick attachable cotter

1шт.

52

444691

PLUG

1/4 auto hex-soc-pipe, used w/72877C1 only

2шт.

53

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING, 1/4-18 special extra short lub, used w/72877C1 only

2шт.

54

382210R11

PIN

ASSY, upper link bracket, Start Serial: 10827

1шт.

380579R91

BUSHING

PARTS ACCESSORY, bushing and pin adapter, for use with category I tools and implements when mounted on category II 3 point hitch attachment, consists of

1шт.

380580R91

PIN

upper link implement

1шт.

380581R1

BUSHING

upper link, short

1шт.

380582R1

BUSHING

upper link, long

1шт.

380583R1

BUSHING

lower link, short

2шт.

380584R1

BUSHING

lower link, long

2шт.

11484R1

SPACER, lower link long bushing

2шт.
