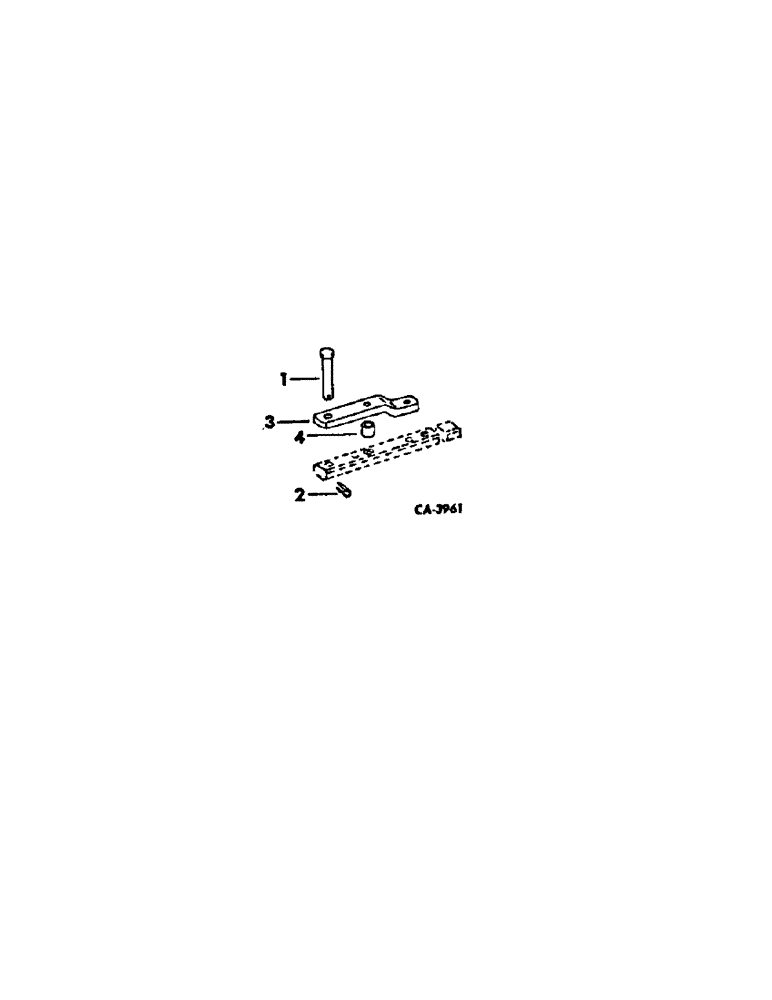

Запчасти Case IH HYDRO 186 (09-02[B]) - FRAME, HAMMER STRAP (12) - FRAME

108511C91

PACKAGE

PARTS ACCESSORY, hammer strap, for tractors equipped with one piece swinging drawbar

1шт.

1

70498C1

PIN

swinging drawbar clevis

1шт.

2

520175R11

AXLE PIN

PIN ASSY, quick attachable cotter

1шт.

3

108506C1

STRAP

drawbar

1шт.

271618

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 5

SCREW, 3/4-10 x 3-3/4 hex-hd cap

1шт.

280232

BOLT,Hex, 5/8" - 11 x 5 1/2", Gr 5

1шт.

102639

NUT,5/8"-11, G5

1шт.

220081

NUT

3/4-10 hex

1шт.

4

483858R1

SPACER

drawbar strap

1шт.
