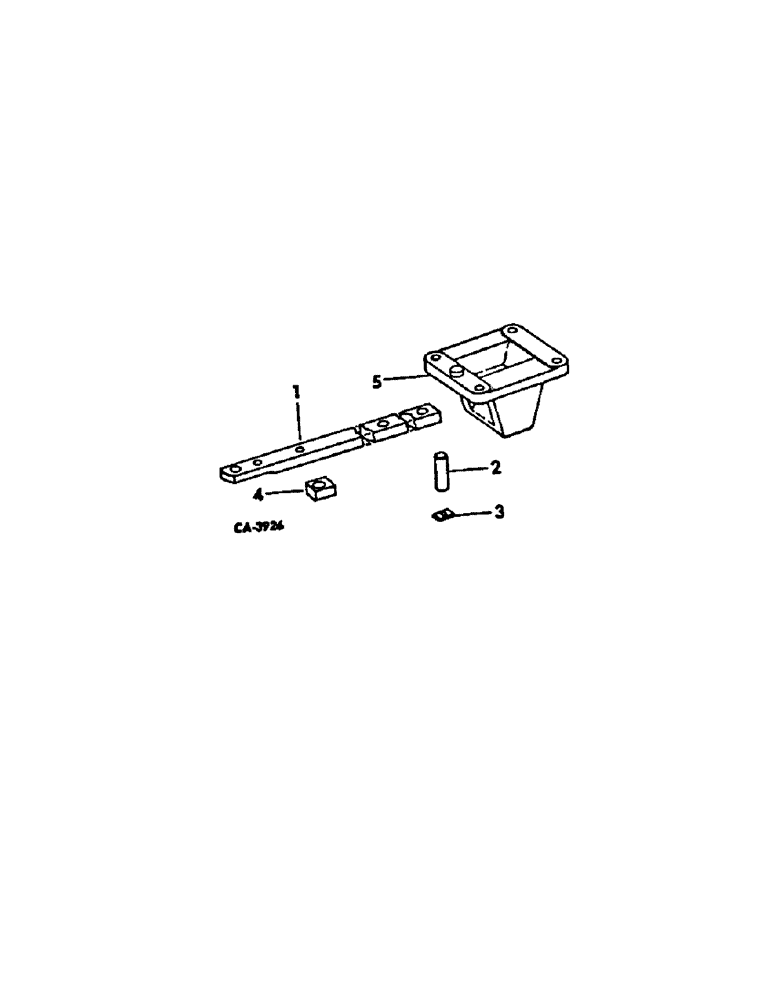

Запчасти Case IH HYDRO 186 (09-02[A]) - FRAME, SWINGING DRAWBAR, ONE PIECE, PART OF THREE POINT HITCH ATTACHMENT (12) - FRAME

1

108502C1

SUPPORT

DRAWBAR, swinging 56 in, Serial Range: -9158

1шт.

1

72476C1

BAR

DRAWBAR, swinging 56 in, Start Serial: 9159

1шт.

2

108505C1

PIN

drawbar

1шт.

3

67828C1

RETAINER

pin

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

108507C1

BLOCK

drawbar stop

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, 3/4-10 x 1-3/4 hex-hd cap

2шт.

5

SUPPORT ASSY, swinging drawbar pivot, refer to rear frame & covers group 7

1шт.
