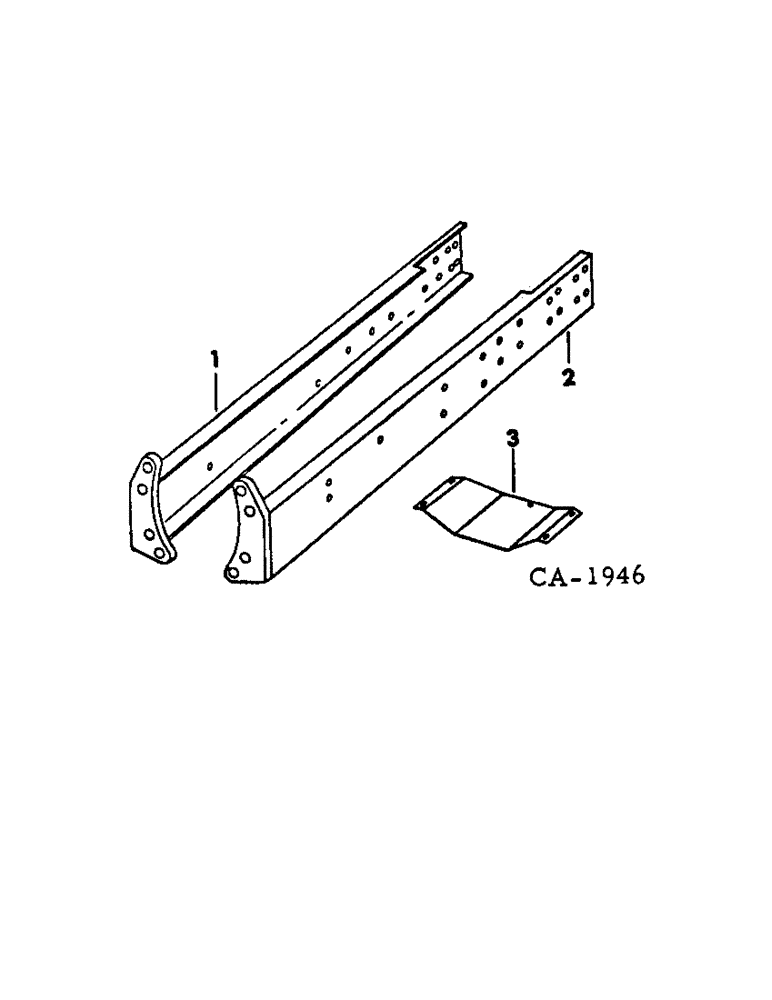

Запчасти Case IH HYDRO 186 (09-01) - FRAME, FRONT FRAME CHANNELS (12) - FRAME

1

532316R7

CHANNEL

ASSY, LH front frame

1шт.

1

534165R7

CHANNEL

ASSY, LH front frame, tractor w/tricycle upper bolster

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap, cap screw 555301R1, w/o tricycle front upper bolster and all tractors w/tricycle front upper bolster, Serial Range: -11580

4шт.

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

cap screw 30065R1, and w/o tricycle front upper bolster Hex, M16 x 35, 10.9, Full Thd, Start Serial: 11581

4шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 hex-hd cap

3шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4-10 x 3-1/2 12 PT cap

1шт.

2

532317R4

SUPPORT ASSY.

CHANNEL ASSY, RH frt frame

1шт.

2

534166R4

CHANNEL ASSY, RH front frame, tractor w/tricycle upper bolster

1шт.

555301R1

BOLT,Hex, 5/8" - 11 x 1 3/8", Gr 8

SCREW, 5/8-11 x 1-3/8 hex-hd cap, cap screw 555301R1, w/o tricycle front upper bolster and all tractor w/tricycle front upper bolster, Serial Range: -11580

4шт.

30065R1

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

cap screw 30065R1, and w/o tricycle front upper bolster Hex, M16 x 35, 10.9, Full Thd, Serial Range: -11580

4шт.

13-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 hex-hd cap

3шт.

25582R1

12 PT SCREW,Flg, 3/4" - 10 x 3 1/2"

SCREW, 3/4-10 x 3-1/2 12 PT cap

1шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 3-3/4 hex-hd cap

4шт.

3

531245R1

SHIELD, fan pulley, Serial Range: -11580

1шт.

NLS

NO LONGER SERVICED

5/8-11 x 3/4 hex-hd cap

2шт.
