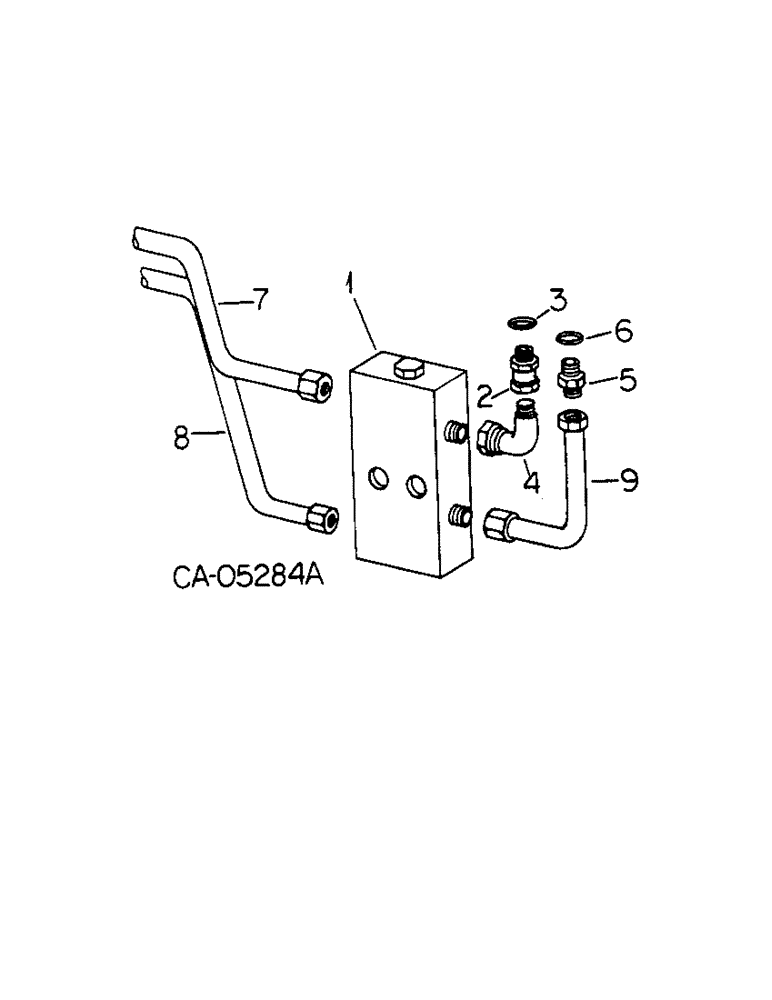

Запчасти Case IH HYDRO 186 (10-50) - HYDRAULIC, ALTERNATING CHECK VALVE CONNECTIONS, TRACTORS W/HI-CLEAR, H186 WITH S/N 11999 AND BELOW (07) - HYDRAULICS

104579C91

KIT

PARTS ACCESSORY, alternating check valve for first aux valve, consists of one each of refs 1

9шт.

104580C91

PACKAGE

PARTS ACCESSORY, alternating check valve for second aux valve, consists of one each of refs 1

9шт.

1

142864C95

VALVE

ASSY, alternating check, replaces 108575C91

1шт.

2

66895C1

FITTING

COUPLER, check valve

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

4

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube 90 deg swivel

1шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube short swivel

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

7

104625C1

HYD TUBE

TUBE ASSY, 1st valve raise

1шт.

7

104627C1

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

8

104626C1

TUBE

ASSY, 1st valve drop

1шт.

8

104628C1

HYD TUBE

TUBE ASSY, 2nd valve drop

1шт.

9

120310C1

TUBE

ASSY, check valve to aux valve

1шт.
