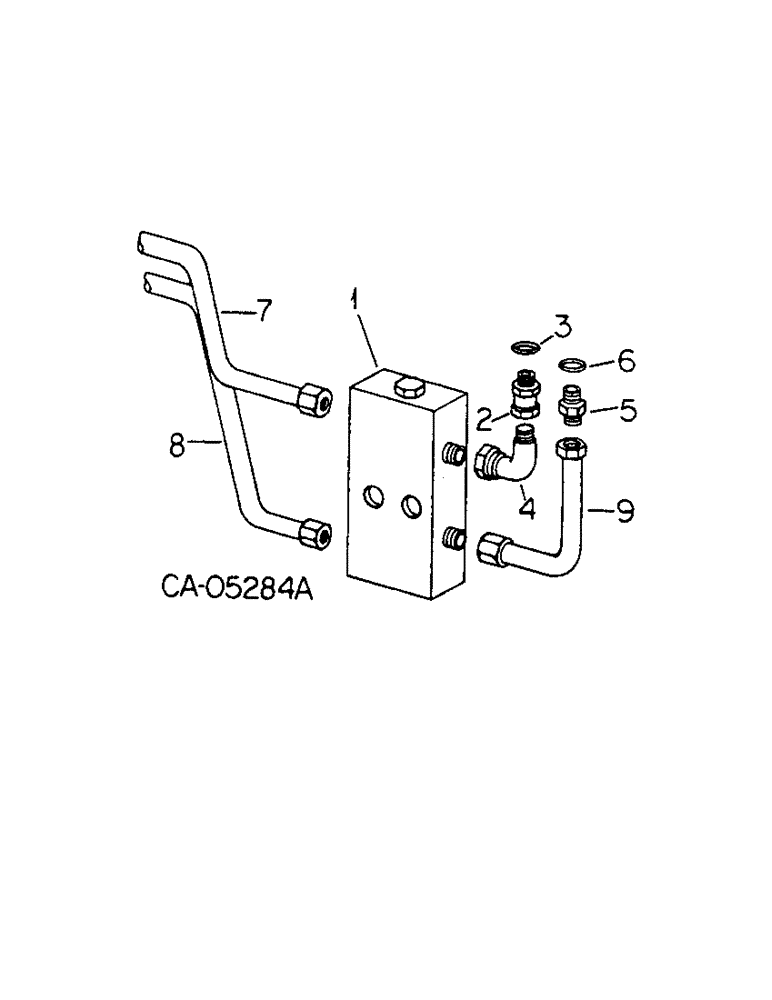

Запчасти Case IH HYDRO 186 (10-50[A]) - HYDRAULIC, ALTERNATING CHECK VALVE CONNECTIONS, H186 WITH SERIAL NO. 12000 AND ABOVE (07) - HYDRAULICS

139166C91

LOCK VALVE

PARTS ACCESSORY, alternating check valve for second aux valve, consists of one each of refs 1

9шт.

139168C91

PARTS ACCESSORY, alternating check valve for third aux valve, consists of one each of refs 1

9шт.

1

142864C95

VALVE

ASSY, alternating check

1шт.

2

66895C1

FITTING

COUPLER, check valve

1шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

4

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 37 deg hyd flared tube 90 deg swivel

2шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube short swivel

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

7

127957C1

HYD TUBE

TUBE ASSY, 2nd valve raise

1шт.

7

133333C1

PIPE

TUBE ASSY, 3rd valve raise

1шт.

8

127958C1

HYD TUBE

TUBE ASSY, 2nd valve drop

1шт.

8

128013C1

HYD TUBE

TUBE ASSY, 3rd valve drop

1шт.

9

127956C1

HYD TUBE

TUBE ASSY, check valve to aux valve

1шт.
