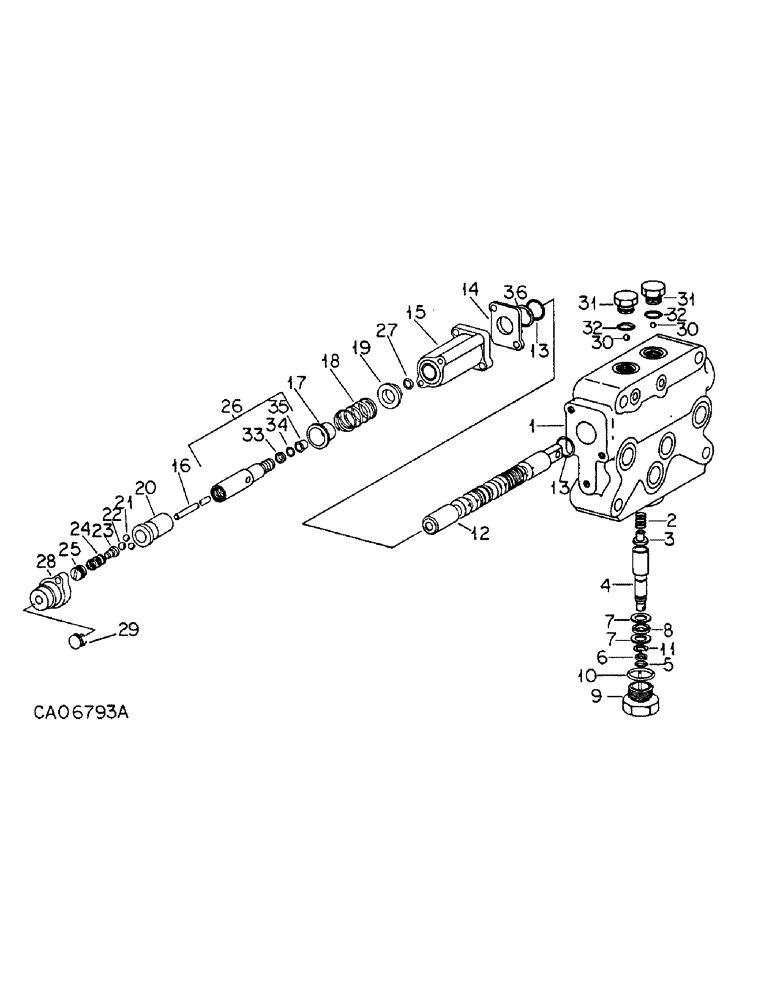

Запчасти Case IH HYDRO 186 (10-48) - HYDRAULIC, CLOSE CENTER AUXILIARY CONTROL VALVE, H186 WITH SERIAL NO. 12000 AND ABOVE (07) - HYDRAULICS

113888C93

VALVE

ASSY, close center aux control

1шт.

1

BODY ASSY, aux control valve, not serviced separately order valve assy 113888C93

1шт.

2

62470C1

SPRING

check valve

1шт.

3

113898C1

VALVE

check valve poppet

1шт.

4

113896C2

VALVE

flow control

1шт.

5

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

6

138303C2

RING

flow control teflon

1шт.

7

159687R1

WASHER

flow control thrust

2шт.

8

159688R91

THRUST BEARING

BEARING ASSY, flow control thrust

1шт.

9

113899C2

PLUG

flow control valve

1шт.

10

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

11

85633R1

RING

flow control retaining

1шт.

12

SPOOL, valve, not serviced separately order valve assy 113888C93

1шт.

13

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/15 x 3/32

2шт.

14

62469C1

RETAINER

aux valve spool, used w/113888C92

1шт.

14

1252320C1

RETAINER

o-ring, used w/113888C93

1шт.

15

113910C1

HOUSING

unlatching piston sleeve

1шт.

26629R1

12 PT SCREW,Flg, 1/4" - 20 x 1"

SCREW, 1/4 x 1.000 PHC type 8 12 PT flg

4шт.

16

113906C1

PIN,2.78mm OD x 68.6mm L

unlatching piston

1шт.

17

113907C1

CUP

centering spring

1шт.

18

113908C1

SPRING

centering

1шт.

19

62473C2

RETAINER

centering spring

1шт.

20

113909C1

SLEEVE

position control

1шт.

21

17007R1

BALL

7/32 chrome steel grade 25, unlatching sleeve

3шт.

22

17013R1

BALL,13/32" Dia

Unlatching sleeve 13/32" Dia

1шт.

23

62480C1

WASHER

PIN, unlatching sleeve ball

1шт.

24

1272404C1

SPRING, detent, replaces 114032C1

1шт.

25

377803R1

PLUG

centering spring retainer

1шт.

26

113904C91

UNION

ASSY, centering spring actuator

1шт.

27

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, OD tube class 6

1шт.

28

62482C1

CAP

unlatching spring housing

1шт.

26629R1

12 PT SCREW,Flg, 1/4" - 20 x 1"

SCREW, 1/4 x 1.000 PHC type 8 12 PT flg

2шт.

29

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 button, unlatching sleeve hsg cap

1шт.

30

17006R1

BALL

3/16 chrome steel grade 25, flow control plug

2шт.

31

113901C91

PLUG

ASSY, check valve

2шт.

32

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, Check valve plug

2шт.

33

529903R1

WASHER

back-up

1шт.

34

21587R1

O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro

1/8 x 1/4 x 1/16, centering spring actuating

1шт.

35

529904R1

RETAINER

o-ring

1шт.

36

1263497C1

WASHER,16.02mm ID x 20.32mm OD x 0.51mm Thk

RING, back-up

1шт.

76669C92

PACKAGE

valve repair, consists of refs 2, 3, 5, 6, 7, 8, 10, 11, 13, 27 & 32

1шт.
