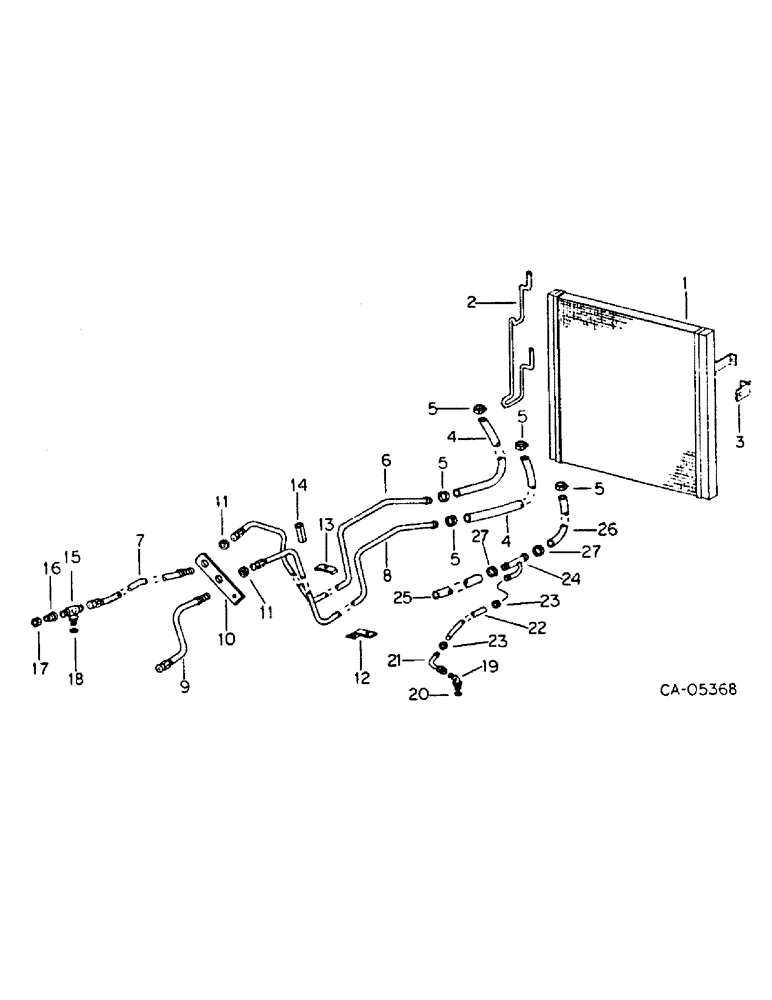

Запчасти Case IH HYDRO 186 (06-01) - COOLING, OIL COOLER AND CONNECTIONS Cooling
№
Артикул
Название
Примечание
Количество
1
104415C1
COOLER
COOLER ASSY, oil
1шт.
2
104787C1
BRACKET
BRACKET, oil cooler hinge
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
BOLT, Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
NLS
NO LONGER SERVICED
1шт.
446363
WASHER,5/16"
WASHER, .375 x .875 x .083
1шт.
495-21044
WASHER,3/8"
WASHER, (.438 x 1 x .083) 3/8"
1шт.
103373
COTTER PIN,3/32" x 3/4"
Pin, Split (Cotter), 3/32" x 3/4"
1шт.
3
104417C1
SPARE PART BRACKET ASSY, oil cooler latch
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
NUT, 1/4"-20, G5
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
4
HOSE, oil cooler, use 44 in. of 5/8 ID hydraulic hose from 50 ft. roll marked 73200C1
2шт.
5
28085R1
HOSE CLAMP,#08, 0.50/0.91 Type F Worm
CLAMP, oil cooler hose
4шт.
6
104462C1
HYD TUBE
TUBE ASSY, oil cooler inlet front
1шт.
7
104463C1
HYD TUBE
TUBE ASSY, oil cooler inlet rear
1шт.
8
104464C1
HYD TUBE
TUBE ASSY, oil cooler outlet front
1шт.
9
104475C1
TUBE
SPARE PART TUBE ASSY, oil cooler outlet rear
1шт.
10
104484C1
BAR
SPARE PART BAR, oil cooler line, support
1шт.
179839
BOLT,Hex, 3/8" - 16 x 1", Gr 5
1шт.
11
9403295
BHD LOCK NUT,Blkhd, 7/8"-14
NUT, 7/8-14 bulkhead union lock
2шт.
12
120070C1
SUPPORT TUBE
STRAP ASSY, tube
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
BOLT, Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
615031R1
WASHER
WASHER, 3/8 x 7/8 x .083
1шт.
13
535307R1
CLAMP
CLAMP, tube
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
179799
BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 5
BOLT, Hex, 1/4"-20 x 1 1/4", G5
1шт.
14
535255R1
SPARE PART HOSE, tube bumper
2шт.
15
9411119
TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Br
TEE, 7/8-14 37 deg hyd adj str thd
1шт.
16
9703402
REDUCER, 37 deg hyd tube
1шт.
17
9403529
TUBE NUT,37 Degree, 7/8"-14, Type B
NUT, 37 deg hyd tube
1шт.
18
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
O-RING, 3/4 x 15/16 x 3/32
1шт.
19
9411104
ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
ELBOW, 9/16-18 37 deg hyd flared tube adj str thd 45 deg
1шт.
For tractors with tricycle front upper bolster.
1шт.
20
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
O-RING, 6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube
1шт.
For tractors with tricycle front upper bolster.
1шт.
21
406053R1
TUBE
SPARE PART TUBE ASSY, steering relief
1шт.
For tractors with tricycle front upper bolster.
1шт.
22
HOSE, relief, use 5.5 in. from a 50 ft. roll marked 526601R1
1шт.
For tractors with tricycle front upper bolster.
1шт.
23
279025R91
HOSE CLAMP,#06, .44/.78 Type F Worm
HOSE CLAMP, #06, .44/.78 Type F Worm
2шт.
For tractors with tricycle front upper bolster.
1шт.
24
534723R1
SPARE PART PIPE ASSY, steering relief
1шт.
For tractors with tricycle front upper bolster.
1шт.
25
HOSE, oil cooler inlet lower, use 31 in. of 5/8 ID hydraulic hose from 50 ft. roll marked 73200C1
1шт.
For tractors with tricycle front upper bolster.
1шт.
26
HOSE, oil cooler inlet upper, use 17 in. of 5/8 ID hydraulic hose from 50 ft. roll marked 73200C1
1шт.
For tractors with tricycle front upper bolster.
1шт.
27
274085R91
HOSE CLAMP,#10, 0.56/1.06 Type F Worm
CLAMP, hose
2шт.
For tractors with tricycle front upper bolster.
1шт.
