Запчасти Case IH HYDRO 186 (10-41) - HYDRAULIC, THIRD VALVE FOR TRIPLE AUXILIARY VALVES, H186 WITH SERIAL NO. 12000 AND ABOVE (07) - HYDRAULICS

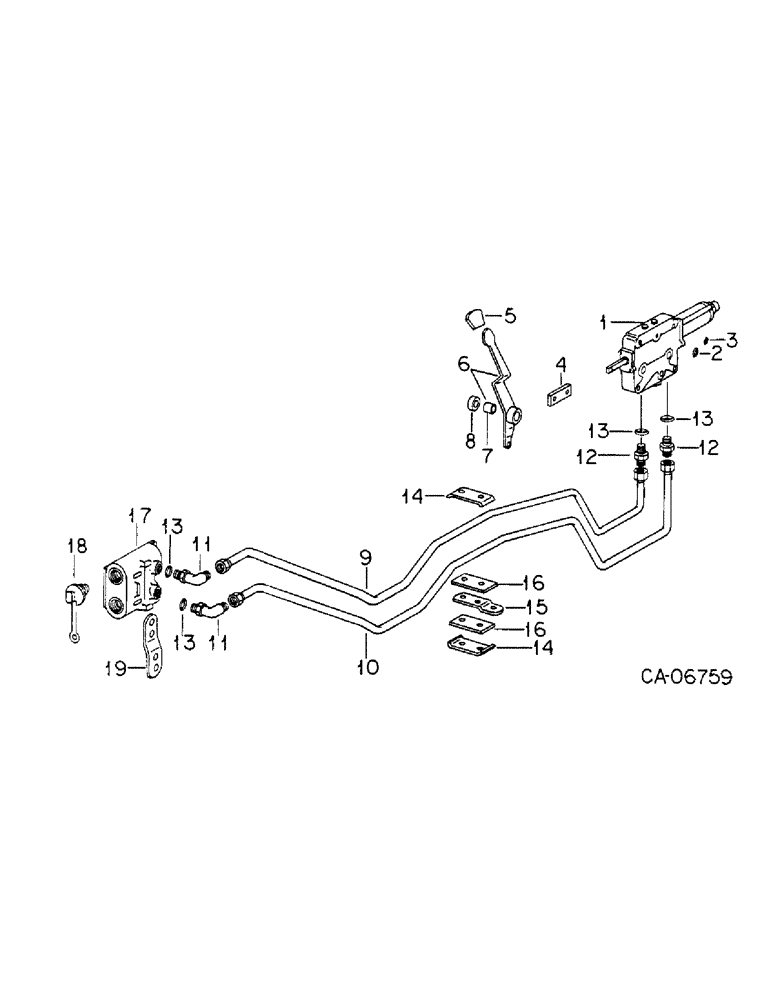

Схема запчастей Case IH HYDRO 186 - (10-41) - HYDRAULIC, THIRD VALVE FOR TRIPLE AUXILIARY VALVES, H186 WITH SERIAL NO. 12000 AND ABOVE (07) - HYDRAULICS
12
11
13
3
4
11
15
6
7
1
13
14
2
14
19
13
17
12
16
5
10
13
8
16
9
18

Артикул

Название

Примечание

Количество

139164C91

PARTS ACCESSORY, third auxiliary valve

1шт.

1

113888C93

VALVE

ASSY, close center aux valve, refer to close center control valve this group for list of components

1шт.

20058R1

BOLT,Hex, 3/8" - 16 x 7", Gr 8

3/8 x 7 pln type 8

4шт.

2

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32

4шт.

3

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

(Replaces 702786R1) -110, 90 Duro, .362" ID x .103" Thk

2шт.

4

139013C1

LINK

aux valve operaing

1шт.

400862R1

BOLT,Hex, 5/16" - 18 x 0.85"

shoulder

2шт.

390304C1

WASHER

.344 x .688 x .065 hdn

1шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 PHC P/T lock type 5

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

5

1259762C1

KNOB

aux valve control, blue

1шт.

6

120470C91

HANDLE

ASSY, third aux valve

1шт.

7

120464C1

BUSHING,19.07mm ID x 20.68mm OD x 13.21mm L

valve operating lever

1шт.

16066R1

WASHER

SPACER, valve handle outer

1шт.

21018R1

WASHER

SPACER, valve handle outer

1шт.

8

120476R1

SPACER, valve handle hub

1шт.

9

133430C1

HYD TUBE

TUBE ASSY, third valve raise, cat II

1шт.

10

127969C1

HYD TUBE

TUBE ASSY, third valve drop

1шт.

11

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

2шт.

12

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube

2шт.

13

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

14

104795C1

CLAMP

aux valve tubes

2шт.

15

104797C1

PLATE

isomount aux valve tubes

1шт.

16

104798C1

STRIP

isomount aux valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8 PHC P/T lock type 5

1шт.

17

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, refer to female coupler this group for list of components

1шт.

18

64757C1

PLUG

coupler dust

2шт.

19

120012C1

SUPPORT

BAR, coupler mtg

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2 x 1-1/8 pln type 5

2шт.

Выбрано товаров: 30
