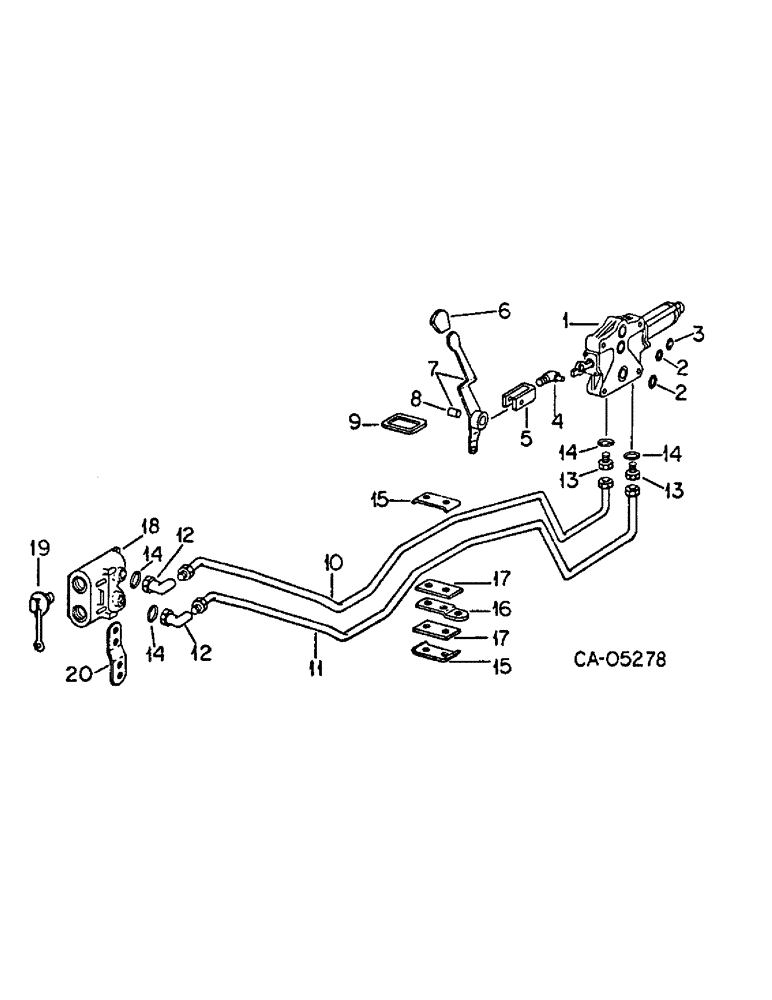

Запчасти Case IH HYDRO 186 (10-40) - HYDRAULIC, THIRD VALVE FOR TRIPLE AUXILIARY VALVES, TRACTORS W/ HI-CLEAR, H186 W/ S/N 11999 & BELOW (07) - HYDRAULICS

62772C91

STRIPPER PACKAGE

PARTS ACCESSORY, third auxiliary valve, tractors w/double auxiliary valve

1шт.

1

62463C94

VALVE, CHECK

VALVE ASSY, aux control, 2000 PSI, refer to open center control valve this group for list of components

1шт.

20848R1

BOLT,Hex, 3/8" - 16 x 6 1/2", Gr 8

SCREW, 3/8-16 x 6-1/2 hex-hd cap type 8

4шт.

2

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

2шт.

3

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

4

104230C1

ROD

aux valve operating

1шт.

103338

WASHER,#10

.219 x .500 x .049 flat

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cotter

1шт.

118625

NUT

3/8-24 hex, jam

1шт.

5

104543C1

CLEVIS COUPLING,3/8" - 24

CLEVIS, valve rod

1шт.

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN, 3/8 headed clevis

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

6

1259760C1

BALL KNOB

KNOB, aux valve control

1шт.

7

104249C91

HANDLE

ASSY, third valve

1шт.

8

104541C1

BUSHING

control valve handle

1шт.

16066R1

WASHER

SPACER, aux valve handle, outer and inner (or as required)

2шт.

9

135877C1

SEAL

control platform, replaces 104535C1

1шт.

10

104682C1

HYD TUBE

TUBE ASSY, 3rd valve raise

1шт.

11

104619C1

HYD TUBE

TUBE ASSY, 3rd valve drop

1шт.

12

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube adj str thd 90 deg

2шт.

13

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube

2шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

15

104795C1

CLAMP

aux valve tubes

2шт.

16

104797C1

PLATE

isomount, aux valve tubes

1шт.

17

104798C1

STRIP

isomount, aux valve tubes

2шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

SCREW, 3/8-16 x 2-3/4 hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

18

544786R95

COUPLING, BREAK AWAY

COUPLER ASSY, female, refer to female coupler this group for list of components

1шт.

19

64757C1

PLUG

coupler dust

2шт.

20

120012C1

SUPPORT

BAR, coupler mounting

1шт.

179882

PIN

SCREW, 1/2-13 x 1-1/8 hex-hd cap

2шт.
