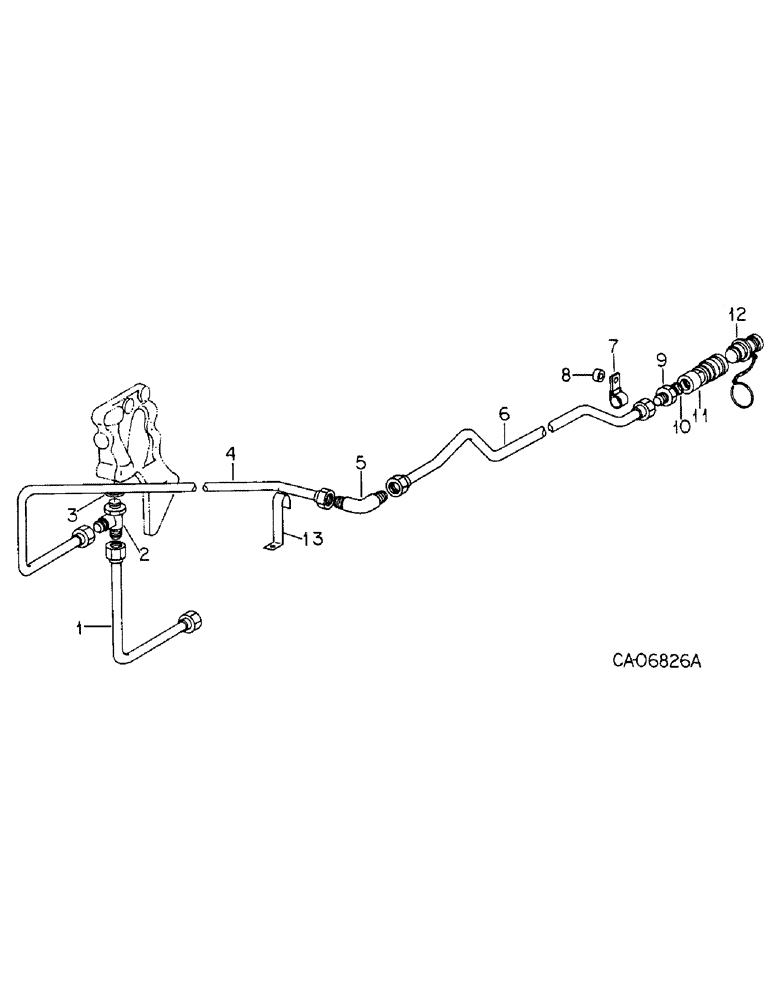

Запчасти Case IH HYDRO 186 (10-39) - HYDRAULIC, HYDRAULIC MOTOR RETURN PARTS ACCESSORY (07) - HYDRAULICS

1

139253C1

HYD TUBE

TUBE ASSY, aux valve return

1шт.

2

9411133

TEE,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring run

37 deg hyd flared tube

1шт.

3

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

4

139225C1

HYD TUBE

TUBE ASSY, motor return front

1шт.

5

9402945

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

37 deg hyd flared tube 90 deg

1шт.

6

139224C1

HYD TUBE

TUBE ASSY, motor return rear

1шт.

7

1259662C1

CLAMP

replaces 154926H1

1шт.

8

139254C1

SPACER

clamp

1шт.

271722

TIP,Hex, 5/8" - 11 x 1 7/8", Gr 5

BOLT, 5/8 x 1-7/8 type 5

1шт.

9

574479R1

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 37 deg hyd flared tube short

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

11

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, hyd self sealing str thd

1шт.

12

401757R11

PLUG

ASSY, coupling dust

1шт.

13

1259661C1

CLAMP

CLIP, motor return

1шт.
