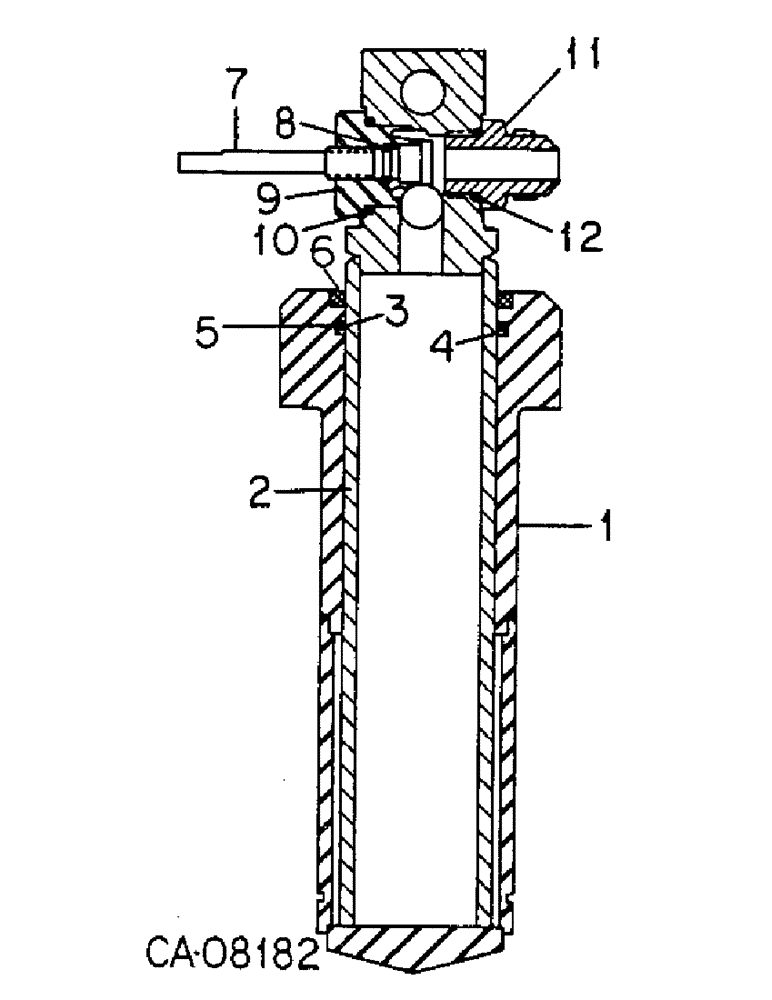

Запчасти Case IH HYDRO 186 (10-33) - HYDRAULIC, HYDRAULIC CYLINDER, HYDRAULIC SEAT ATTACHMENT (07) - HYDRAULICS

399093R98

CYLINDER

ASSY, single acting ram hyd

1шт.

1

BODY ASSY, hydraulic cylinder, not serviced separately, order cylinder assy

1шт.

2

399313R4

ROD

ASSY, hyd cylinder

1шт.

3

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

1-13/16 x 2 class 5

1шт.

4

145387C1

WASHER

WASHER, cylinder rod o-ring back-up

1шт.

5

145388C1

SEALING RING

RING, cylinder rod rectangular

1шт.

6

123354C1

WIPER SEAL

WIPER, rod

1шт.

7

399317R2

ADJUSTMENT SCREW

adjusting

1шт.

8

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Adjusting screw

1шт.

9

399318R2

RETAINER,Hex, 7/8" - 14 x 0.615"

adjusting screw

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

1шт.

11

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 C-Z 37 deg hyd flared tube short swivel, hydraulic cylinder body

1шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.

79241C1

PACKAGE

KIT, o-ring and seal service, consists of ref nos 3 through 6

1шт.
