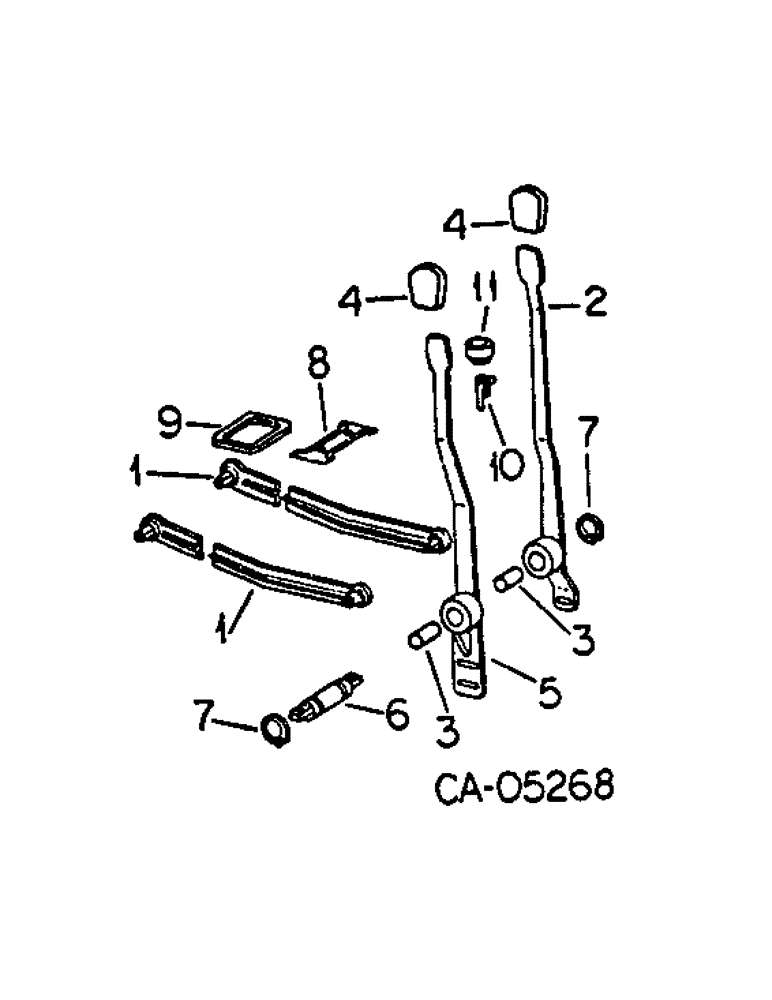

Запчасти Case IH HYDRO 186 (10-30) - HYDRAULIC, HYDRAULIC DRAFT CONTROL LINKAGE, TRACTORS WITH HI-CLEAR, H186 WITH S/N 11999 AND BELOW (07) - HYDRAULICS

1

120314C2

ROD

ASSY, draft & position control

2шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 hex-hd cap

4шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 PHC P/T lock type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

532409R1

SPRING WASHER

.331 x .512 x .031 spr

2шт.

2

104525C92

HANDLE

ASSY, position control

1шт.

3

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

control hubs

2шт.

4

1259760C1

BALL KNOB

KNOB, control handle

2шт.

5

104529C91

HANDLE

ASSY, draft control

1шт.

6

104532C2

SHAFT

control pivot

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

661652R1

SNAP RING,#75, Ext

Control handle #75, Ext

2шт.

16066R1

WASHER

SPACER, control handle inner and outer (or as required)

6шт.

8

SUPPORT, control platform seal, order 135877C1

1шт.

9

135877C1

SEAL

control, replaces 104535C1 and 104534C1

1шт.

10

120408C1

STOP

ASSY, position control handle

1шт.

20600R1

WASHER

.281 x .750 x .105 flat znd

1шт.

11

Not serviced separately, order stop assy, 120408C1

1шт.
