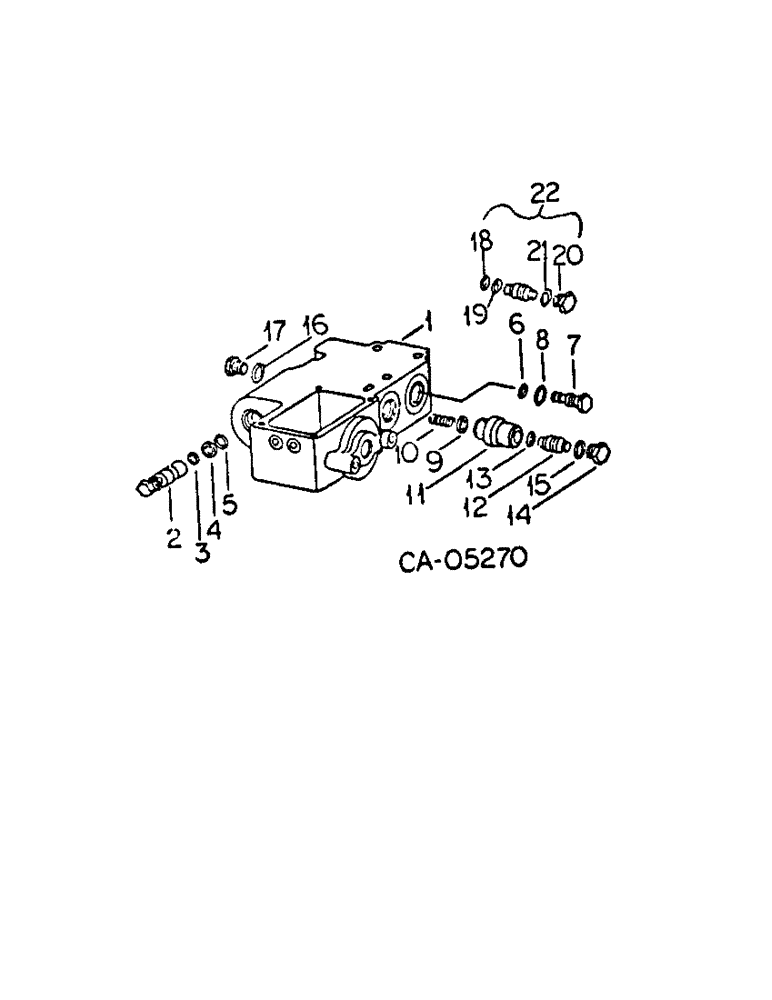

Запчасти Case IH HYDRO 186 (10-28) - HYDRAULIC, UNLOADING VALVE, TRACTORS WITH DRAFT CONTROL (07) - HYDRAULICS

108516C92

VALVE

ASSY, unloading 2300 PSI

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

1

10850C1

BODY, unloading valve

1шт.

2

396729R93

VALVE

ASSY, relief 2300 PSI

1шт.

3

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

4

378985R2

BACK-UP RING

back-up

1шт.

5

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

6

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

1шт.

7

108519C1

PLUG

simultaneous lift

1шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

1шт.

9

108522C1

WASHER

unloading valve seal

1шт.

10

128100C1

SPRING

unloading valve

1шт.

11

108610C1

HOUSING

BODY ASSY, unloading

1шт.

12

108715C1

PISTON

ASSY, unloading valve

1шт.

13

385713R1

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

13/16 x 1-1/16 x 1/8

1шт.

14

324605R1

PLUG

unloading valve

1шт.

15

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1.0 in, tubing

1шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tubing

1шт.

17

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.

18

384943R1

O-RING,0.739" ID x 0.07" Width

-018, 90 Duro, .739" ID x .070" Thk

1шт.

19

384578R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

13/16 x 15/16 x 1/16

1шт.

20

9410361

PLUG

1-1/16-12 str-thd o-ring boss

1шт.

21

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

22

63737C91

KIT

PARTS ACCESSORY, sequence raise, to permit simultaneous raising of tractor hitch and operating implement assist wheels

1шт.
