Артикул
Название
Примечание
Количество

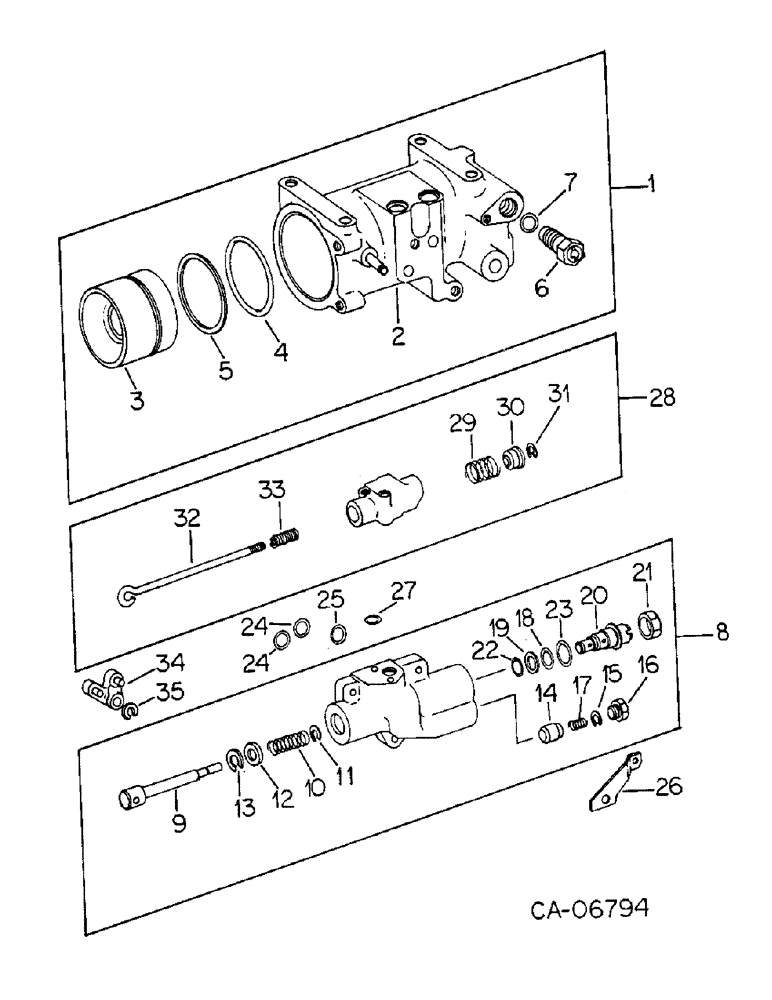

1
127871C92
CYLINDER
ASSY, draft control
1шт.
2
127870C2
NO LONGER SERVICED
CYLINDER ASSY, draft control
1шт.
3
397229R1
PISTON
ASSY, draft control cyl
1шт.
4
382604R1
O-RING,4.35" ID x 0.21" Width
4-3/8 x 4-3/4 x 3/16, draft control piston
1шт.
5
382605R2
WASHER
draft control piston o-ring backup
1шт.
6
60517C92
VALVE
ASSY, poppet relief
1шт.
7
380839R1
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
7/8 x 1-1/16 x 3/32
1шт.
179843
BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
8
127834C91
CONTROL VALVE
VALVE ASSY, draft control
1шт.
9
123258C1
VALVE
ASSY, spool
1шт.
10
133702C1
SPRING
valve spool
1шт.
11
376771R1
RING, SNAP
RING, actuator retaining
1шт.
12
376759R1
RETAINER
PLUG, spool bore
1шт.
13
303322R1
SNAP RING,1.00", Int, #100
Spool bore plug 1.00", Int, #100
1шт.
14
123260C1
VALVE
check poppet
1шт.
15
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
7/8 tube, check poppet valve plug
1шт.
16
395926R1
PLUG
check poppet valve
1шт.
17
382310R1
SPRING
check poppet valve
1шт.
18
383024R1
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
11/16 x 13/16 x 1/16, drop valve
2шт.
19
123263C1
WASHER
drop valve o-ring back-up
1шт.
20
127835C92
VALVE
ASSY, drop, refer to drop valve assy this group for list of components
1шт.
21
9410062
LOCK NUT,Blkhd, 1 1/16"-12
NUT, 1-1/16 adj fitting lock
1шт.
22
392382R1
O-RING,0.551" ID x 0.07" Width
9/16 x 11/16 x 1/16
1шт.
23
368269R1
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
3/4 tube
1шт.
24
387926R2
RING
valve to cyl small seal
2шт.
25
388591R1
RING
valve to cyl large seal
1шт.
26
127882C1
ANCHOR
spring
1шт.
27
21433R1
O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro
11/16 x 7/8 x 3/32, drop control valve
1шт.
28
391913R91
VALVE
ASSY, drop control
1шт.
138204
SCREW,Hex Skt, 1/4" - 20 x 1 1/2"
1/4 x 1-1/2 pln h/shd cap
1шт.
445568
BOLT,Hex, 1/4"-20 x 2 1/4", G8
1/4 x 2-1/4 pln type 8
1шт.
103319
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
29
382626R1
SPRING
spool return
1шт.
30
384053R1
BUSHING
drop control valve
1шт.
31
384052R1
SNAP RING,#43, .337" Dia, E-Type
Ring, Retaining, , spool #43, .337" Dia, E-Type
1шт.
32
386006R1
ROD
spool actuating
1шт.
446160
WASHER,#10
.219 x .438 x .036 pln
1шт.
18411R1
NUT,#10-32, GB
no. 10-NF pln P/T lock type 5
1шт.
33
53393D
SPRING
spool actuating rod
1шт.
34
382629R11
LEVER
BELLCRANK ASSY, drop control valve
1шт.
103361
PIN, SPLIT (COTTER)
PIN, 1/16 x 1/2 pln cot
1шт.
495-81252
WASHER,#12
.234 x .531 x .036 pln
1шт.
35
384052R1
SNAP RING,#43, .337" Dia, E-Type
Ring, Retaining, , drop control bellcrank #43, .337" Dia, E-Type
1шт.
Выбрано товаров: 44
