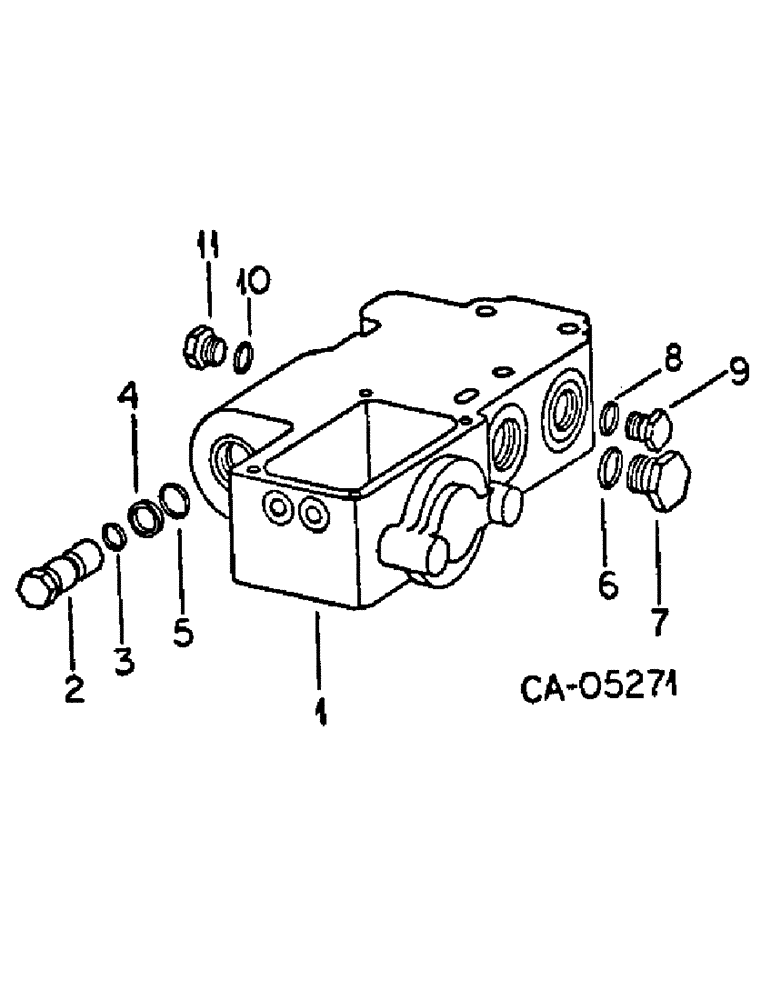

Запчасти Case IH HYDRO 186 (10-19) - HYDRAULIC, RELIEF VALVE MANIFOLD, TRACTORS WITHOUT DRAFT CONTROL (07) - HYDRAULICS

108554C92

MANIFOLD

ASSY, relief valve, 2300 PSI

1шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

3/8 x 3-1/8 pln type 5

3шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

BODY, relief valve manifold, not serviced separately order valve assy, 108554C92

1шт.

2

396729R93

VALVE

ASSY, pilot relief

1шт.

3

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

4

378985R2

BACK-UP RING

back-up

1шт.

5

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

6

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 in. tubing

1шт.

7

324605R1

PLUG

str thd o-ring boss

1шт.

8

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tubing

1шт.

9

9410361

PLUG

3/4 C-Z str thd o-ring boss

1шт.

10

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

11

9410358

PLUG

3/8 C-Z str thd o-ring boss

1шт.
