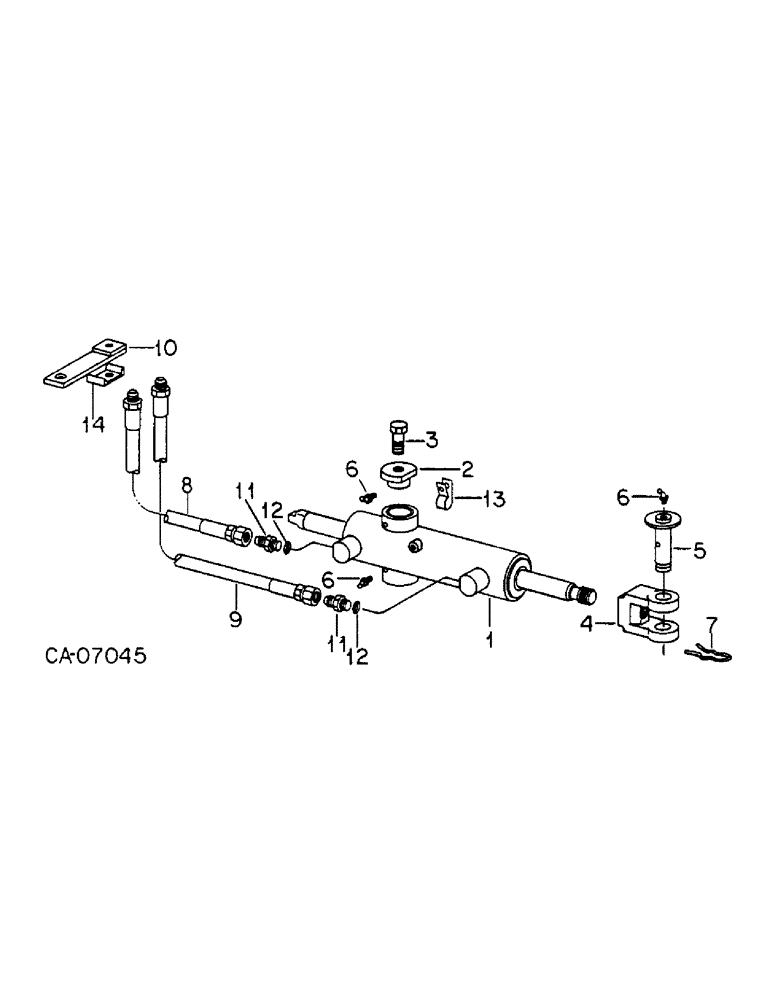

Запчасти Case IH HYDRO 186 (10-17) - HYDRAULIC, POWER STEERING CYLINDER & CONNECTIONS, TRACTORS W/ ALL WHEEL DRIVE, S/N 11080 AND ABOVE (07) - HYDRAULICS

1

145411C92

CYLINDER BLOCK

CYLINDER ASSY, hyd steering, refer to power steering cyl this group for list of components

1шт.

2

531237R1

CAP

trunnion

2шт.

3

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

trunnion cap

2шт.

575812R1

WASHER

.719 x 1.500 x .105 pln

2шт.

4

148825C2

CLEVIS COUPLING

CLEVIS

1шт.

191951

SCREW,Hdls Hex Skt, 5/16" - 18 x 3/4", Cup Pt

5/16 x 3/4 C/PT znp HDL/S set

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

5

148826C3

CLEVIS COUPLING

PIN, clevis

1шт.

6

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8 PTF 65 deg lub

3шт.

7

148827C1

CLIP

spring

1шт.

8

148828C1

HOSE ASSY.

HOSE, LH steering, Serial Range: -11580

1шт.

8

1251871C1

HYDRAULIC HOSE

HOSE, LH steering, Start Serial: 11581

1шт.

9

148829C1

HOSE ASSY.

HOSE, RH steering, Serial Range: -11580

1шт.

9

1251872C1

HOSE

RH steering, Start Serial: 11581

1шт.

10

148970C1

BAR, clamp, Serial Range: -11580

1шт.

11

148831C1

FITTING

hose

2шт.

12

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32

2шт.

13

148832C1

CLIP, hyd line, Serial Range: -11580

1шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

5/16-NF x 1/2 pln type 5

1шт.

14

148971C1

CHANNEL, clamp, Serial Range: -11580

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
