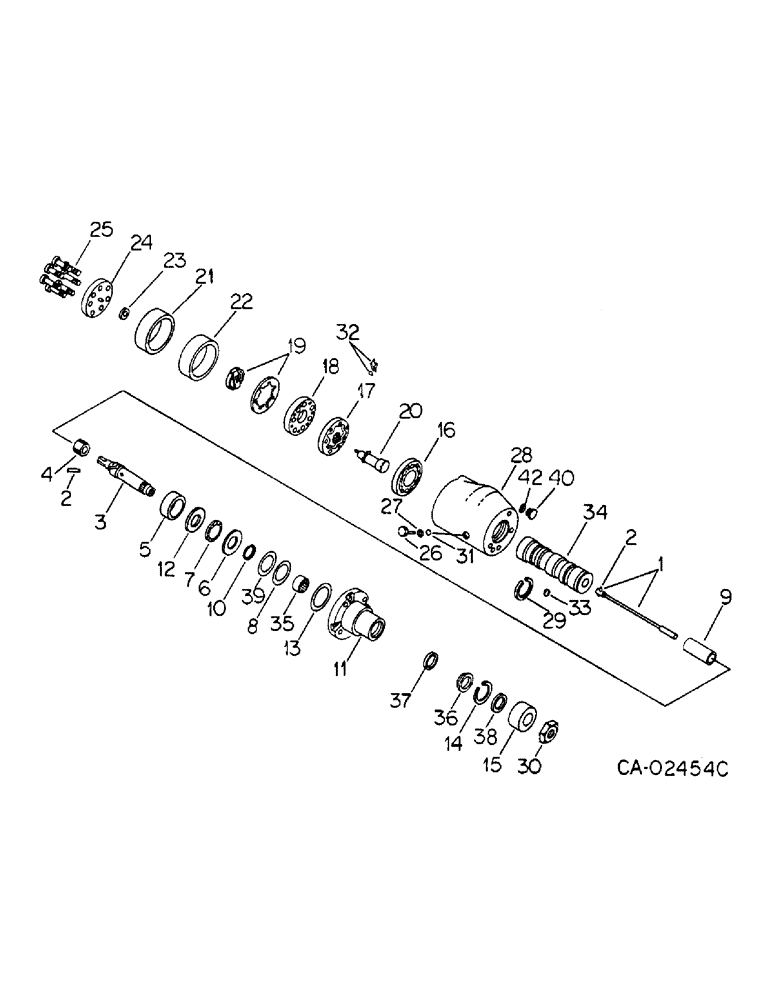

Запчасти Case IH HYDRO 186 (10-13) - HYDRAULIC, HYDROSTATIC POWER STEERING HAND PUMP, P/N 224675C91 (07) - HYDRAULICS

928751C95

LOCK VALVE

STEERING ASSY, internal hydrostatic

1шт.

120229C92

STEERING ASSY

internal hydrostatic, ordrer steering assy 1263446C91

1шт.

1263446C91R

REMAN-STEERING VALVE

HYDRO 186 INTERNATIONAL DIESEL TRACTOR, internal hydrostatic (1/72-12/78), Reman for New PN 120229C92

1шт.

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

224675C91

PUMP

STEERING ASSY, internal hydrostatic, order steering assy 1263446c91

1шт.

1263446C91R

REMAN-STEERING VALVE

HYDRO 186 INTERNATIONAL DIESEL TRACTOR, STEERING ASSY, internal hydrostatic (1/72-12/78), Reman for New PN 224675C91

1шт.

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

537271R1

ROD

TORSION BAR ASSY, used w/928751C95 pump

1шт.

1

535055R1

BAR

TORSION BAR ASSY, used w/120229C92 pump

1шт.

1

224713C1

BAR

TORSION BAR ASSY, used w/224675C91 pump

1шт.

2

535056R1

PIN

torsion bar needle

1шт.

3

924665C2

SHAFT

input

1шт.

4

535058R1

RING

drive

1шт.

5

928468C1

SPACER

1шт.

6

535087R1

THRUST WASHER

thrust

1шт.

7

379783R91

THRUST BEARING

BEARING ASSY, thrust

1шт.

8

67567C1

PACKAGE

KIT, shim, consists of (1) shim .002 (NSS), (1) shim .030 (NSS), (1) shim .005 (NSS), (1) shim .010 (NSS)

1шт.

9

537272R1

SPACER

drive link, used w/928751C95 pump

1шт.

9

537277R1

SPACER

drive link, used w/120229C92 & 224675C91 pumps

1шт.

10

928752C1

RING

retaining

1шт.

11

70115C1

COVER

ASSY, upper

1шт.

24481R1

SCREW

5/16-18 x 3/4 flanged 12-PT

4шт.

12

379785R1

THRUST WASHER

WASHER, thrust

1шт.

13

535091R1

RING

seal

1шт.

14

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

15

382587R1

SEAL

SHIELD, pump shaft, not included in pump assy

1шт.

16

535093R1

SPACER

1шт.

17

537273R1

ROTOR

SET, used w/928751C95 pump

1шт.

17

537282R1

ROTOR

SET, used w/120229C92 & 224675C91 pumps

1шт.

18

535096R1

MANIFOLD

1шт.

19

535097R1

ROTOR

COMMUTATOR ASSY

1шт.

20

538069R1

DRIVE

LINK, drive

1шт.

21

537274R1

SEAL

rotor, used w/928751C95 pump

1шт.

21

537279R1

SEAL

SEAL, rotor, used w/120229C92 & 224675C91 pumps

1шт.

22

71361C1

RETAINER

seal, used w/928751C95 pump

1шт.

22

71360C1

RETAINER

seal, used w/120229C92 & 224675C91 pumps

1шт.

23

535100R1

THRUST WASHER

1шт.

24

535101R1

COVER

ASSY, end

1шт.

25

537276R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.688", Gr 5

end cover, replaces 64925C1

7шт.

25

535120R1

SPACER

BOLT, end cover, used w/120229C92 & 224675C91 pumps

7шт.

26

397901R91

PLUG AND ROLL PIN ASSY

1шт.

27

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

28

BODY ASSY, not serviced separately, order pump assy

1шт.

29

536360R1

SPRING

ball pre-load

1шт.

30

F19646

LOCK NUT,13/16"-20, Thin

NUT, 13/16-20 hex, used w/120229C92 & 224675C91 pumps

1шт.

31

17008R1

BALL,1/4" Dia

Steel 1/4" Dia

1шт.

32

405785R91

PACKAGE, REPAIR

PACKAGE, vane and spring, used w/928751C95 pump

1шт.

32

405788R91

PACKAGE

vane and spring, used w/120229C91 & 224675C91 pumps

1шт.

33

17010R1

BALL,5/16" Dia

1шт.

34

SPOOL, body, not serviced separately order pump assy

1шт.

35

BEARING ASSY, needle, not serviced separately order cover assy 70115C1

1шт.

36

SPACER, seal, not serviced separately, order service package 123465C1 or 224712C1

1шт.

37

RING, shaft seal, not serviced separately, order service package 123465C1 or 224712C1

1шт.

38

SEAL, felt dust, not serviced separately, order service package 123465C1 or 224712C1

1шт.

39

928469C1

WAVE WASHER

wave

1шт.

40

71085C1

PLUG

1шт.

41

(Not used this application)

1шт.

42

379795R

O-RING, 3/16 OD tube class 6

2шт.

123465C1

X

PACKAGE, hydrostatic power steering hand pump service, for use w/928751C95 & 120229C92 pumps, consists of (1) seal (NSS), (1) spacer, seal (NSS), (1) seal, dust (NSS)

1шт.

224712C1

SEAL KIT

PACKAGE, hydrostatic power steering hand pump service, for use w/224675C91 pump, consists of (1) seal (NSS), (1) spacer, seal (NSS), (1) seal, dust (NSS)

1шт.
