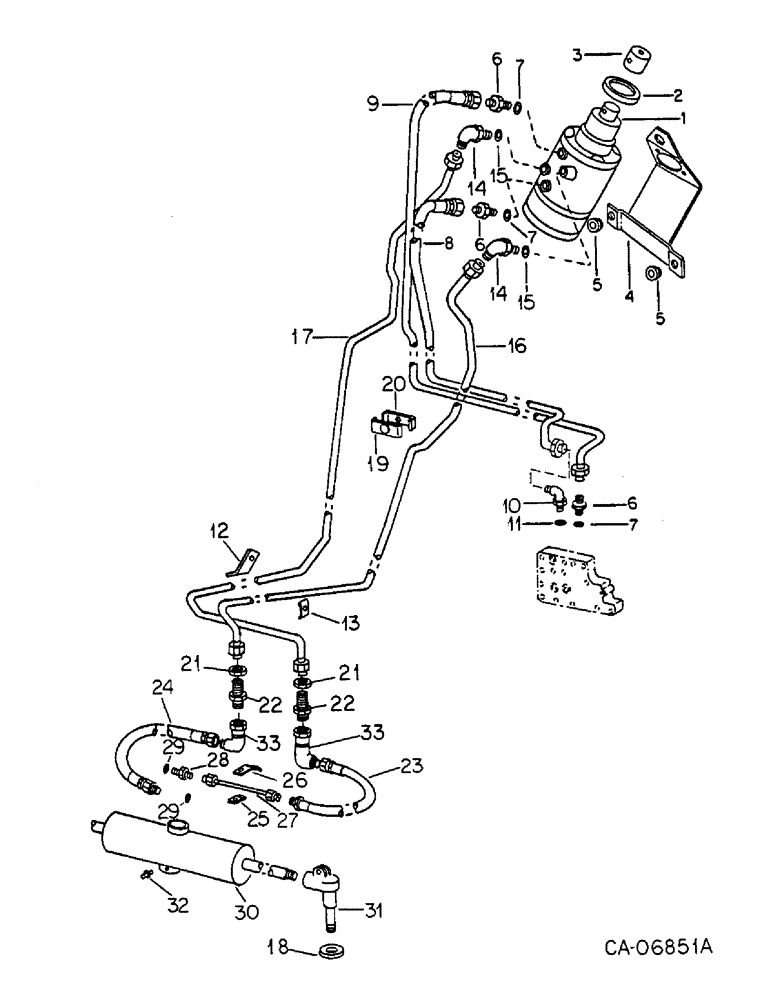

Запчасти Case IH HYDRO 186 (10-10) - HYDRAULIC, HYDRAULIC POWER STEERING CONNECTIONS, H186 WITH SERIAL NO. 9420 AND ABOVE (07) - HYDRAULICS

1

928751C95

LOCK VALVE

PUMP ASSY, power steering hand, Serial Range: -11999

1шт.

1

1263446C91

PUMP

ASSY, power steering hand, replaces 120229C92 and 224675C91, refer to power steering hand pump this group for list of components, Start Serial: 12000

1шт.

1

1263446C91R

REMAN-STEERING VALVE

HYDRO 186 INTERNATIONAL DIESEL TRACTORASSY, WITH SERIAL NO. 9420 AND ABOVE, power steering hand, Start Serial: 12000 (1/72-12/78)

1шт.

1

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

2

104007C1

SEAL

hand pump shaft dust

1шт.

3

104008C1

RUBBER INSULATOR

INSULATOR, pump shaft vibration

1шт.

4

104853C1

BRACKET

ASSY, hand pump mtg

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SCREW, 5/16-18 x 5/8 hex-hd cap

4шт.

5

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

hand pump bracket

3шт.

536642R1

WASHER

Isomount

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

6

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short reducer

3шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

3шт.

8

104750C1

TUBE

ASSY, steering pressure

2шт.

9

104454C2

TUBE,0.5" OD, 1494.348 mm Length

ASSY, power steering return

1шт.

10

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4-16 37 deg hyd flared tube 90 deg reducer

1шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

12

537844R2

BRACKET

ASSY, power steering tube support front channel

1шт.

13

535307R1

CLAMP

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube 90 deg

2шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

16

120443C2

PIPE FITTING

TUBE ASSY, right turn strg

1шт.

17

120444C2

TUBE

ASSY, left turn strg

1шт.

18

71822C1

SEAL

dust

1шт.

19

384855R11

CLAMP

ASSY, power steering tube

1шт.

20

384855R1

CLAMP

power steering tube

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21

124939

NUT,Jam, 9/16"-18, G5

9/16-18 znd hex jam

1шт.

22

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube bulkhead

2шт.

23

70312C1

HOSE,9.53mm ID x 577.85mm L, SAE 100R7

ASSY, power steering, LH

1шт.

24

74871C1

HOSE,9.53mm ID x 22.75mm L, SAE 100R7

ASSY, power steering, RH, replaces 70313C2

1шт.

25

533578R2

CLAMP

tube

1шт.

26

533577R2

CLAMP

hose

1шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

1шт.

27

533579R2

TUBE

ASSY, cyl port to steering LH hose

1шт.

28

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

4шт.

29

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

30

63864C92

CYLINDER

ASSY, hyd power steering, refer to power steering cylinder this group for list of components

1шт.

31

71820C91

END

ball joint rod

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Used w/148885C91 1/8"-27 x .66 lg

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, 7/8-NF pln slt-thick type 5

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

69981R1

LOCK NUT,3/8"-16, GB

NUT, 3/8 P/T lock type 5

1шт.

32

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 hole 65D lub

2шт.

33

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel

2шт.
