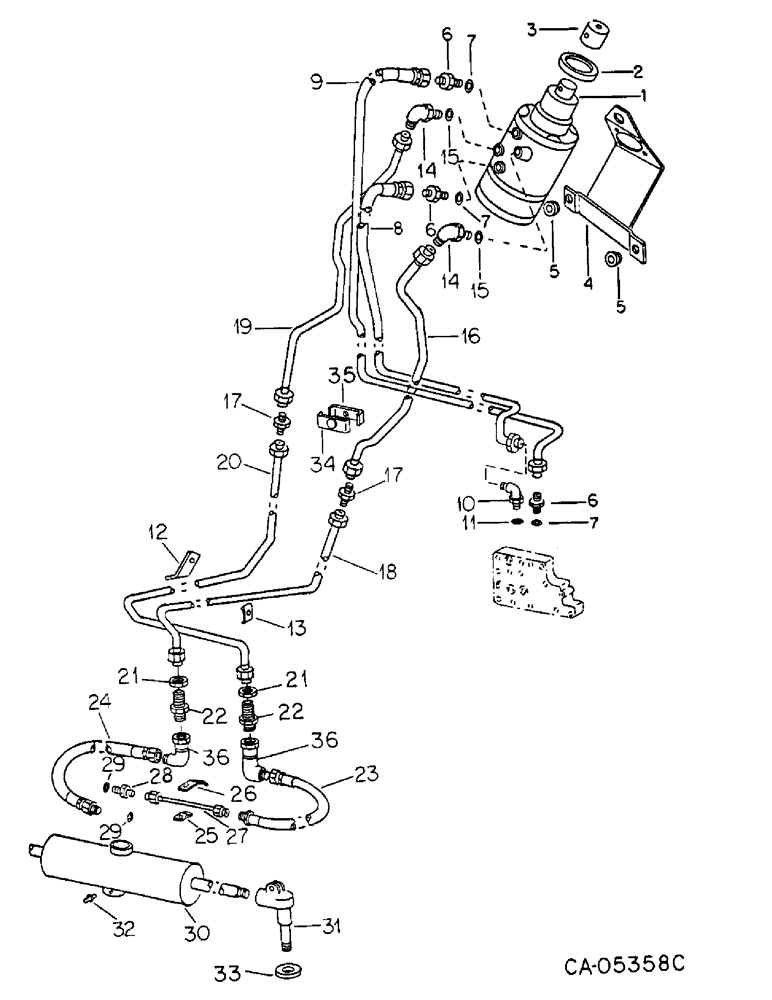

Запчасти Case IH HYDRO 186 (10-08) - HYDRAULIC, HYDRAULIC POWER STEERING CONNECTIONS, H186 WITH SERIAL NO. 9419 AND BELOW (07) - HYDRAULICS

1

928751C95

LOCK VALVE

PUMP ASSY, power steering hand, refer to power steering hand pump this group for list of components

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

2

104007C1

SEAL

hand pump shaft dust

1шт.

3

104008C1

RUBBER INSULATOR

INSULATOR, pump shaft vibration

1шт.

4

104853C1

BRACKET

ASSY, hand pump mtg

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

5

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

hand pump bracket

3шт.

536642R1

WASHER

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

6

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short reducer

3шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

3шт.

8

104750C1

TUBE

ASSY, steering pressure

2шт.

9

104454C2

TUBE,0.5" OD, 1494.348 mm Length

ASSY, power steering return

1шт.

10

615667C1

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4-16 37 deg hyd flared tube 90 deg reducer

1шт.

11

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

12

537844R2

BRACKET

ASSY, power steering tube support front channel

1шт.

13

535307R1

CLAMP

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube 90 deg

2шт.

15

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

16

104457C1

HYD TUBE

TUBE ASSY, right turn strg upper

1шт.

17

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

37 deg hyd flared tube

2шт.

18

104458C1

TUBE ASSY, right turn strg lower

1шт.

19

104455C1

TUBE

ASSY, left turn strg upper

1шт.

20

104456C1

TUBE ASSY, left turn strg lower

1шт.

21

124939

NUT,Jam, 9/16"-18, G5

9/16-18 bulkhead union lock

2шт.

22

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube bulkhead

2шт.

23

70312C1

HOSE,9.53mm ID x 577.85mm L, SAE 100R7

ASSY, power steering, LH

1шт.

24

74871C1

HOSE,9.53mm ID x 22.75mm L, SAE 100R7

ASSY, power steering, replaces 70313C2, RH

1шт.

25

533578R2

CLAMP

tube

1шт.

26

533577R2

CLAMP

hose

1шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

1шт.

27

533579R2

TUBE

TURN ASSY, cyl port to steering LH hose

1шт.

28

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

4шт.

29

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

30

63864C92

CYLINDER

ASSY, hyd power steering, refer to power steering cylinder this group for list of components

1шт.

31

71820C91

END

ball joint rod

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Used w/148885C91 1/8"-27 x .66 lg

1шт.

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

NUT, 7/8-14 slt thick hex

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

32

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.

33

71822C1

SEAL

dust

1шт.

34

384855R1

CLAMP

ASSY, power steering tube

1шт.

35

384855R1

CLAMP

power steering tube

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

36

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel

2шт.
