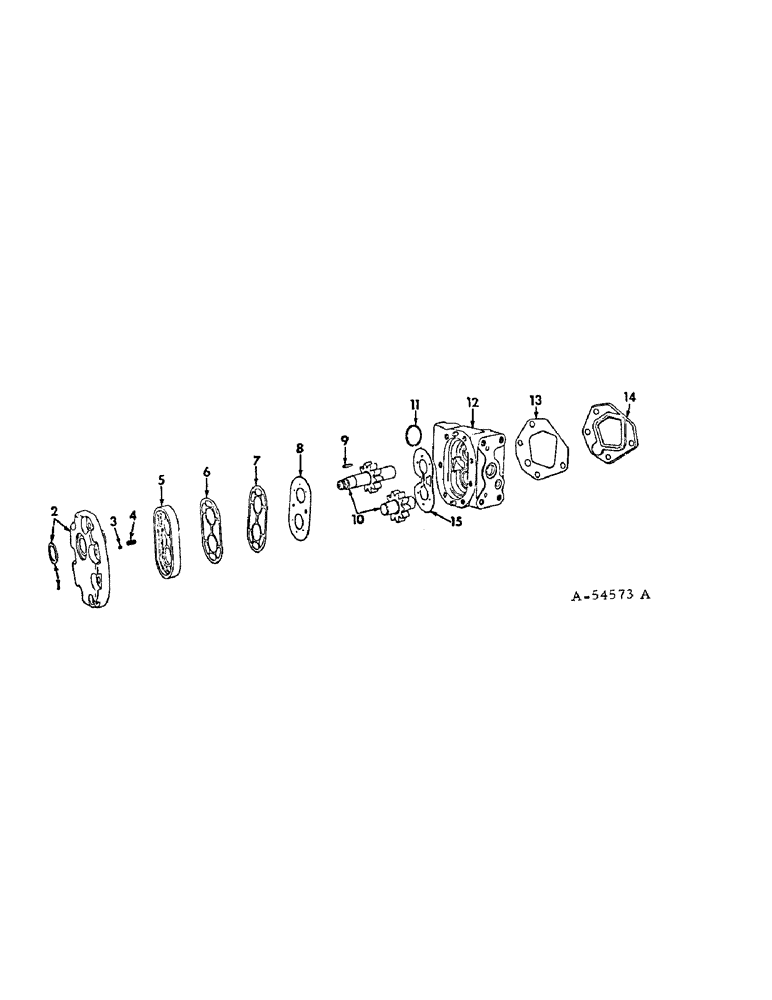

Запчасти Case IH HYDRO 186 (10-07) - HYDRAULIC, HYDRAULIC PUMP, CESSNA, 17 GPM (07) - HYDRAULICS

70935C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic, 17 GPM

1шт.

1949292C1

REMAN-HYD PUMP

HYDRO 186 INTERNATIONAL DIESEL TRACTOR, PUMP ASSY (1/72-12/78)

1шт.

1949293C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

SEAL, pump shaft oil, not serviced separately order o-ring and gasket package 71264C1

1шт.

2

COVER ASSY, pump, not serviced separately order pump assembly 70935C91

1шт.

3

17007R91

BALL, 7/32 cr-stl

1шт.

re it no. 3 is used for the hitch.

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, not serviced separately order o-ring and gasket package 71264C1

1шт.

6

GASKET, protector, not serviced separately order o-ring and gakset package 71264C1

1шт.

7

GASKET, back-up not serviced separately order o-ring and gasket package 71264C1

1шт.

8

DIAPHRAGM, pressure, not serviced separately order o-ring and gasket package 71264C1

1шт.

9

71266C1

KEY

5/32 x 1/2 sq, parallel

1шт.

10

PACKAGE, drive and driven gear, not serviced separately order pump assembly 70935C91

1шт.

11

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

12

BODY, w/bushings, pump, not serviced separately order pump assembly 70935C91

1шт.

13

71265C1

GASKET

implement pump rear cover

1шт.

14

371524R1

LARGE PLATE

COVER, implement pump rear

1шт.

15

PLATE, thrust, not serviced separately order o-ring and gasket package 71264C1

1шт.

71264C1

SEAL KIT

PACKAGE, hydraulic pump o-ring and gasket service, consists of (1) diaphram (NSS), (1) o-ring (NSS), (1) spring (NSS), (1) thrust plate (NSS), (1) gasket (NSS), (1) seal (NSS), (1) gasket (NSS), steel ball (NSS), (1) seal (NSS)

1шт.
