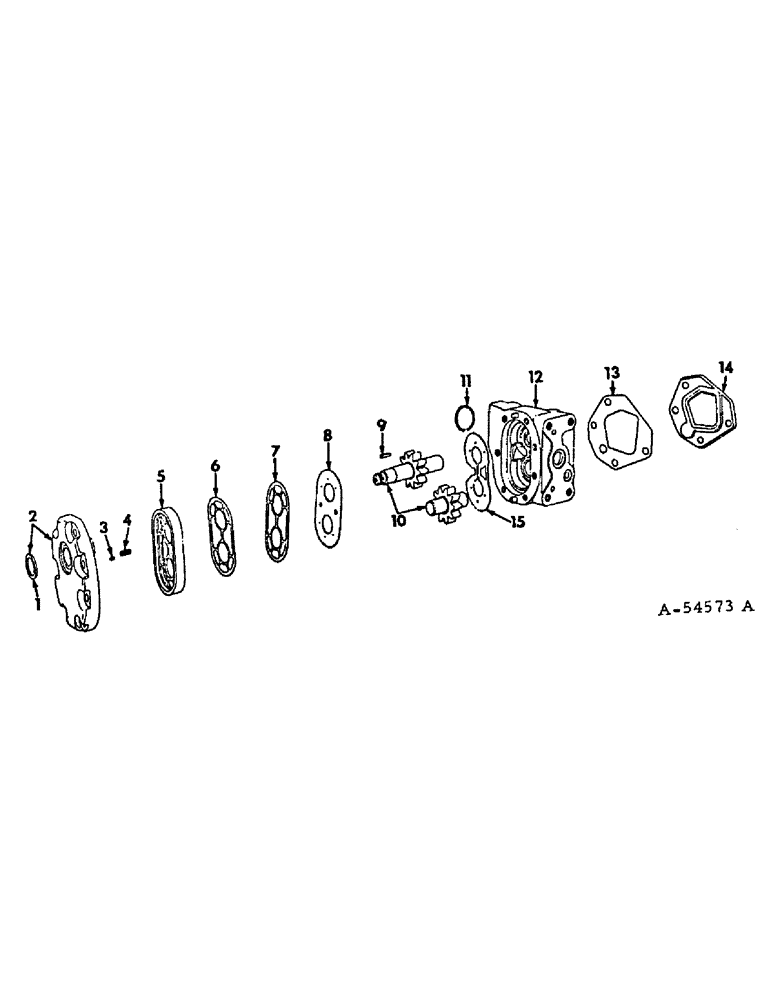

Запчасти Case IH HYDRO 186 (10-06) - HYDRAULIC, HYDRAULIC PUMP, 12 GPM, CESSNA (07) - HYDRAULICS

70931C91

PUMP

ASSY, hydraulic gear, 12 GPM

1шт.

70933C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, 12 GPM

1шт.

1949296C1

REMAN-HYD PUMP

HYDRO 186 INTERNATIONAL DIESEL TRACTOR, PUMP ASSY (1/72-12/78)

1шт.

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

SEAL, pump shaft oil, not serviced separately, order seal repair kit 71264C1

1шт.

2

COVER, pump, not serviced separately, order complete pump assy

1шт.

3

17007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, not serviced separately, order seal repair kit 71264C1

1шт.

6

GASKET, protector, not serviced separately, order seal repair kit 71264C1

1шт.

7

GASKET, back-up, not serviced separately, order seal repair kit 71264C1

1шт.

8

DIAPHRAGM, not serviced separately, order seal repair kit 71264C1

1шт.

9

71266C1

KEY

pump drive gear

1шт.

10

GEAR, drive and driven, not serviced separately, order complete pump assy

1шт.

11

O-RING, not serviced separately, order seal repair kit 71264C1

1шт.

12

BODY, pump, not serviced separately, order complete pump assy

1шт.

13

71265C1

GASKET

rear cover, used only w/pump 70933C91

1шт.

14

371524R1

LARGE PLATE

COVER, rear, used only w/pump 70933C91

1шт.

15

PLATE, thrust, not serviced separately, order seal repair kit 71264C1

1шт.

71264C1

SEAL KIT

seal repair

1шт.

Consists of (1) diaphragm (NSS), (1) o-ring (NSS), (1) thrust plate (NSS), (1) spring 383663R1, (1) gasket, back-up (NSS), (1) gasket, protective (NSS), (1) seal, diaphragm (NSS), (1) seal, shaft (NSS), (1) ball 17007R1, (1) instruction (NSS)

1шт.
