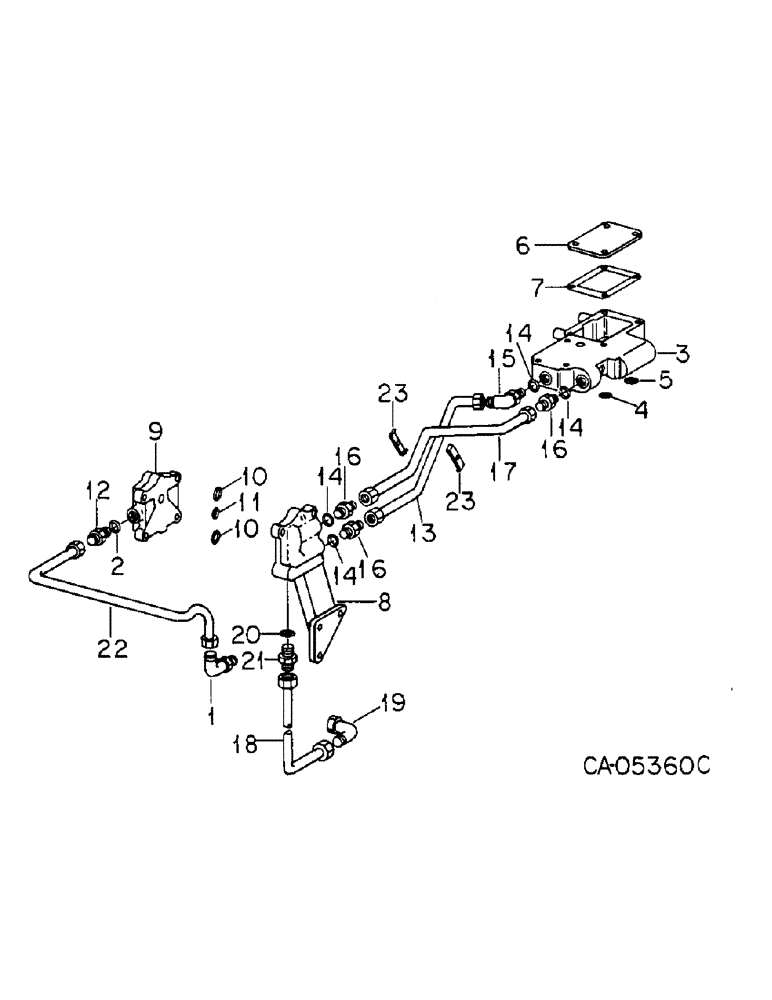

Запчасти Case IH HYDRO 186 (10-01) - HYDRAULIC, RELIEF VALVE MANIFOLD AND CONNECTIONS, H186 WITH SERIAL NO. 11999 AND BELOW (07) - HYDRAULICS

1

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 x 5/8 tube

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

2шт.

3

MANIFOLD ASSY, relief valve, refer to relief valve manifold this group for list of components

1шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

3/8 x 3-1/8 pln type 5

3шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

1шт.

5

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32

1шт.

6

108514C1

COVER

linkage access

1шт.

7

108515C1

GASKET

cover

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

8

104573C1

BRACKET

aux valve mounting

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

9

123081C1

COVER

valve mounting bracket

1шт.

10

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

2шт.

11

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32

1шт.

NLS

NO LONGER SERVICED

4шт.

12

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 x 5/8 tube

1шт.

13

139085C1

HYD TUBE

TUBE ASSY, hyd open supply, replaces 104621C1

1шт.

14

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

4шт.

15

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4, 37 deg hyd flared tube asj str thd 45 deg

1шт.

16

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4, 37 deg hyd flared tube

3шт.

17

104620C2

HYD TUBE

TUBE ASSY, hyd tandem supply

1шт.

18

104629C1

HYD TUBE

TUBE ASSY, aux valve return

1шт.

19

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

90 deg 37 deg flare

1шт.

20

968269R1

O-RING, 3/4 tube

1шт.

21

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4, 37 deg hyd flared tube

1шт.

22

104864C1

HYD TUBE

TUBE ASSY, return, tractor with two aux. valves

1шт.

22

104865C1

HYD TUBE

TUBE ASSY, return, tractor with three aux. valves

1шт.

23

139099C1

CLAMP

tube

2шт.

179803

BOLT,1/4" - 20 x 1 3/4", Gr 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

9413950

LOCK NUT,1/4"-20, GB

NUT, 1/4 PHC P/T lock type 5

1шт.
